1984 Kawasaki KZ700-A1 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

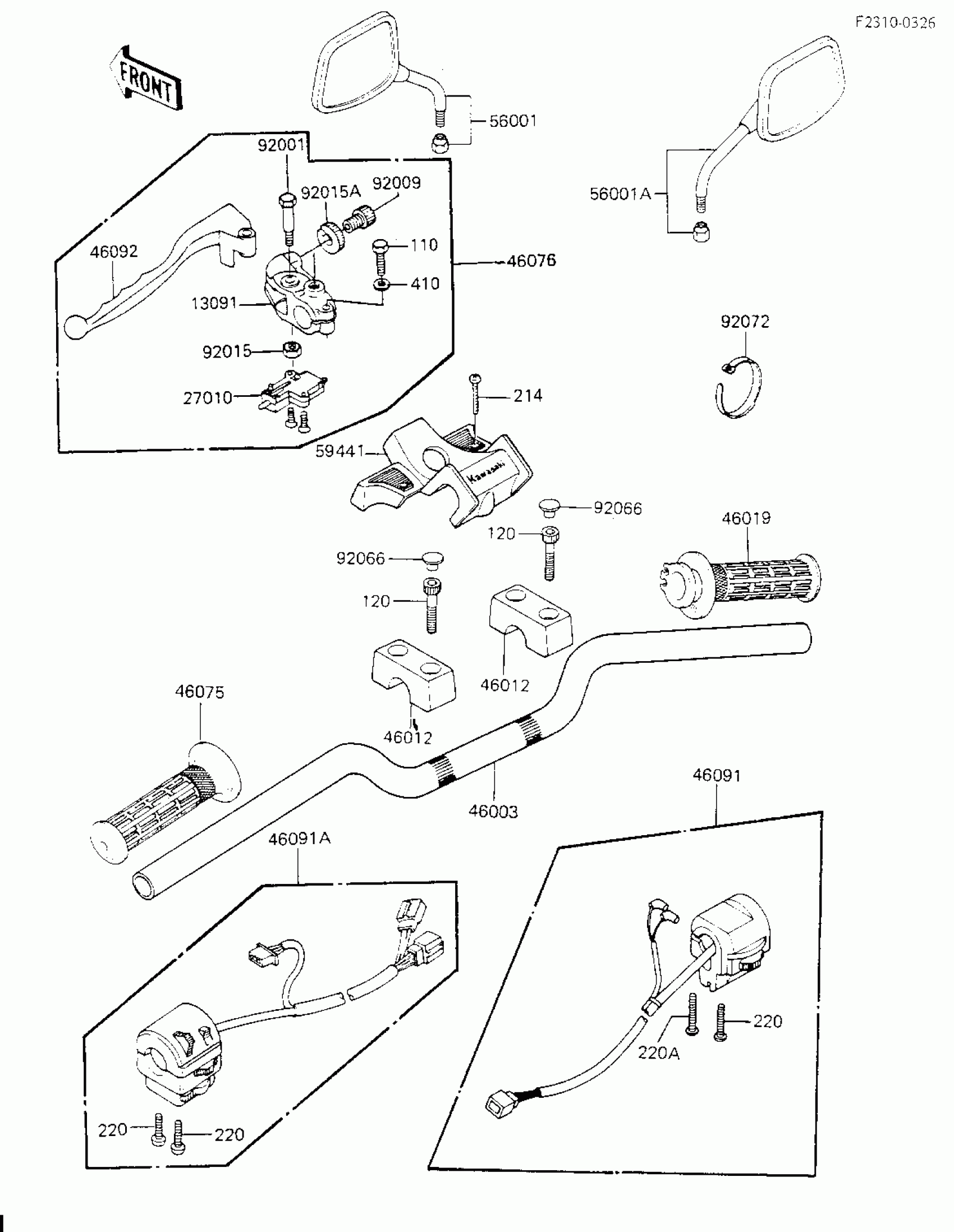

1984 Kawasaki KZ700-A1 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CLUTCH LEVER

13091-1272

1

$49.42

In stock

27010

SWITCH,CLUTCH,BLACK

27010-1094

1

$26.29

In stock

46003

HANDLE

46003-1122

1

$193.18

In stock

46012

HOLDER-HANDLE

46012-1027

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1015

1

$46.19

In stock

46075

GRIP,LH

46075-1022

1

$13.34

In stock

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1105

1
Out of stock

46091

HOUSING-ASSY-CNTRL,RH

46091-1214

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,

46091-1423

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-1103

1

$23.49

In stock

56001

MIRROR-ASSY,LH

56001-1352

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-1353

1
Out of stock

59441

COVER-HANDLE

59441-1011

1
Out of stock

92001

1

$6.73

In stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92066

PLUG

92066-1216

1

$3.69

In stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

110

BOLT,6X22,BLACK

110C0622

1
Out of stock

120

BOLT-SOCKET,8X30

120S0830

1
Out of stock

214

SCREW-PAN+-

214C0416

1
Out of stock

220

SCREW-PAN-CROS

220B0535

1

$2.94

In stock

220A

SCREW-PAN-CROS

220B0540

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

1
Out of stock
