1984 Kawasaki KZ700-A1 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

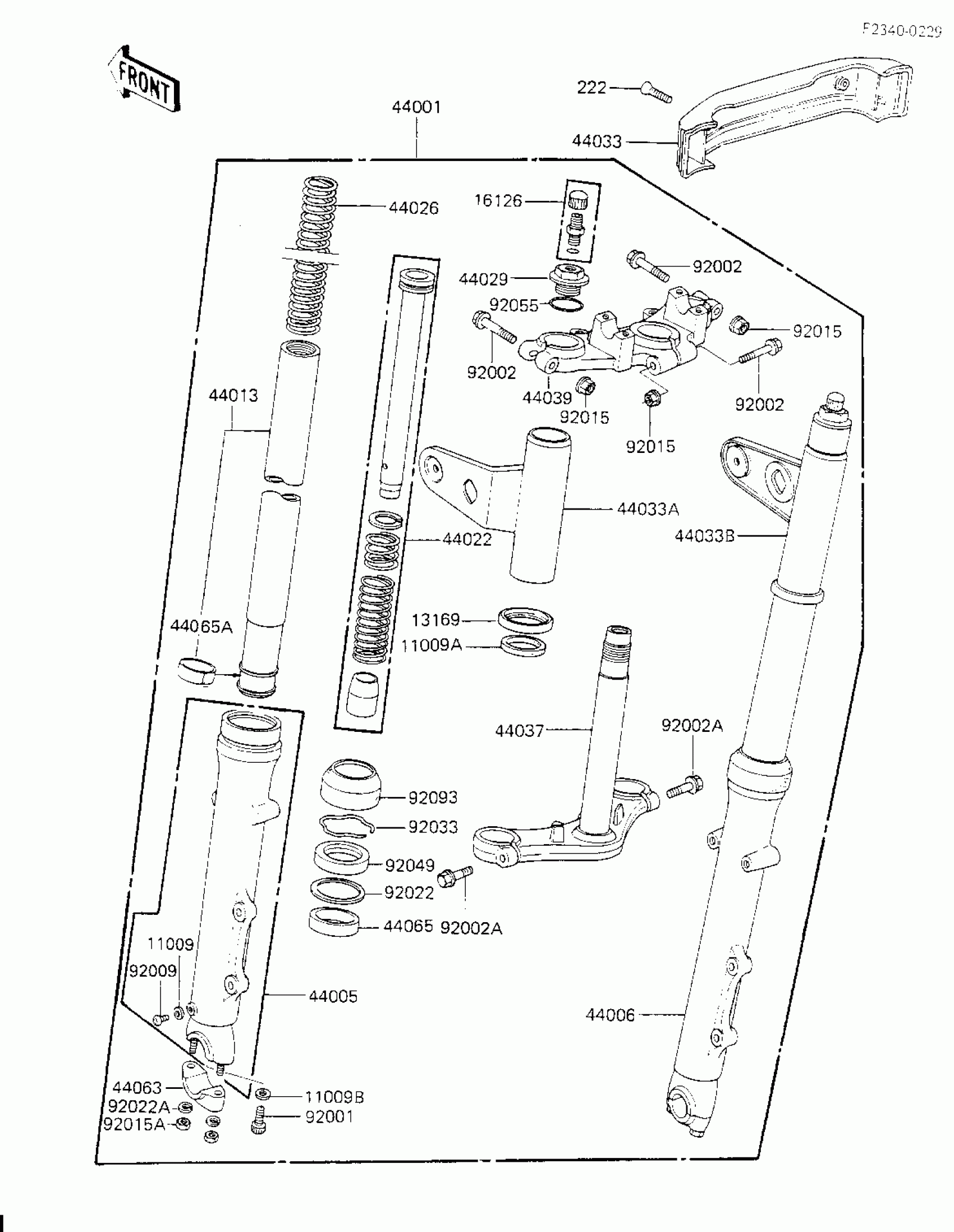

1984 Kawasaki KZ700-A1 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.12

In stock

11009A

GASKET,FORK COVER

44045-038

1
Out of stock

11009B

GASKET

44045-057

1

$3.86

In stock

13169

PLATE,FORK COVER,LWR

13169-1849

1
Out of stock

16126

VALVE,AIR

16126-1052

1

$32.11

In stock

44001

FORK-FRONT

44001-1442

1

$1,304.93

In stock

44005

TUBE,LH,FORK OUTER

44005-1093

1

$260.18

In stock

44006

TUBE,RH,FORK OUTER

44006-1093

1

$403.76

In stock

44013

PIPE-FORK INNER

44013-1112

1

$384.77

In stock

44022

CYLINDER-FORK

44022-1079

1

$86.85

In stock

44026

SPRING-FRONT FORK

44026-1188

1

$59.71

In stock

44029

SEAT-FORK SPRING

44029-1039

1

$36.54

In stock

44033

COVER-FORK

44033-1084

1

$51.90

In stock

44033A

COVER-FORK,LH,F.BLAC

44033-1131

1
Out of stock

44033B

1

$145.36

In stock

44037

HOLDER-FORK UNDER

44037-1089

1

$348.75

In stock

44039

HOLDER-FORK UPPER

44039-1074

1

$324.31

In stock

44063

HOLDER-FRONT AXLE

44063-1006

1

$44.66

In stock

44065

BUSHING-FRONT FORK

44065-1016

1

$24.56

In stock

44065A

BUSHING-FRONT FORK,IN

44065-1059

1
Out of stock

92001

1

$5.21

In stock

92002

BOLT,FLANGED,8X55

92002-1158

1

$7.33

In stock

92002A

BOLT,FLANGED,12X35

92002-1301

1

$13.03

In stock

92009

SCREW,4X8

92009-1324

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1

$4.27

In stock

92015A

NUT

92015-1439

1

$7.39

In stock

92022

WASHER,FRONT FORK

92022-1275

1

$7.25

In stock

92022A

WASHER,SPRING,8MM

92022-1552

1

$2.36

In stock

92033

RING-SNAP,FORK OIL

92033-1100

1

$12.15

In stock

92049

SEAL-OIL,FRONT FORK

92049-1101

1
Out of stock

92055

RING-O,FORK TOP

92055-1012

1

$6.75

In stock

92093

DUST SHIELD,FORK

92093-1037

1

$23.78

In stock

222

1

$4.15

In stock
