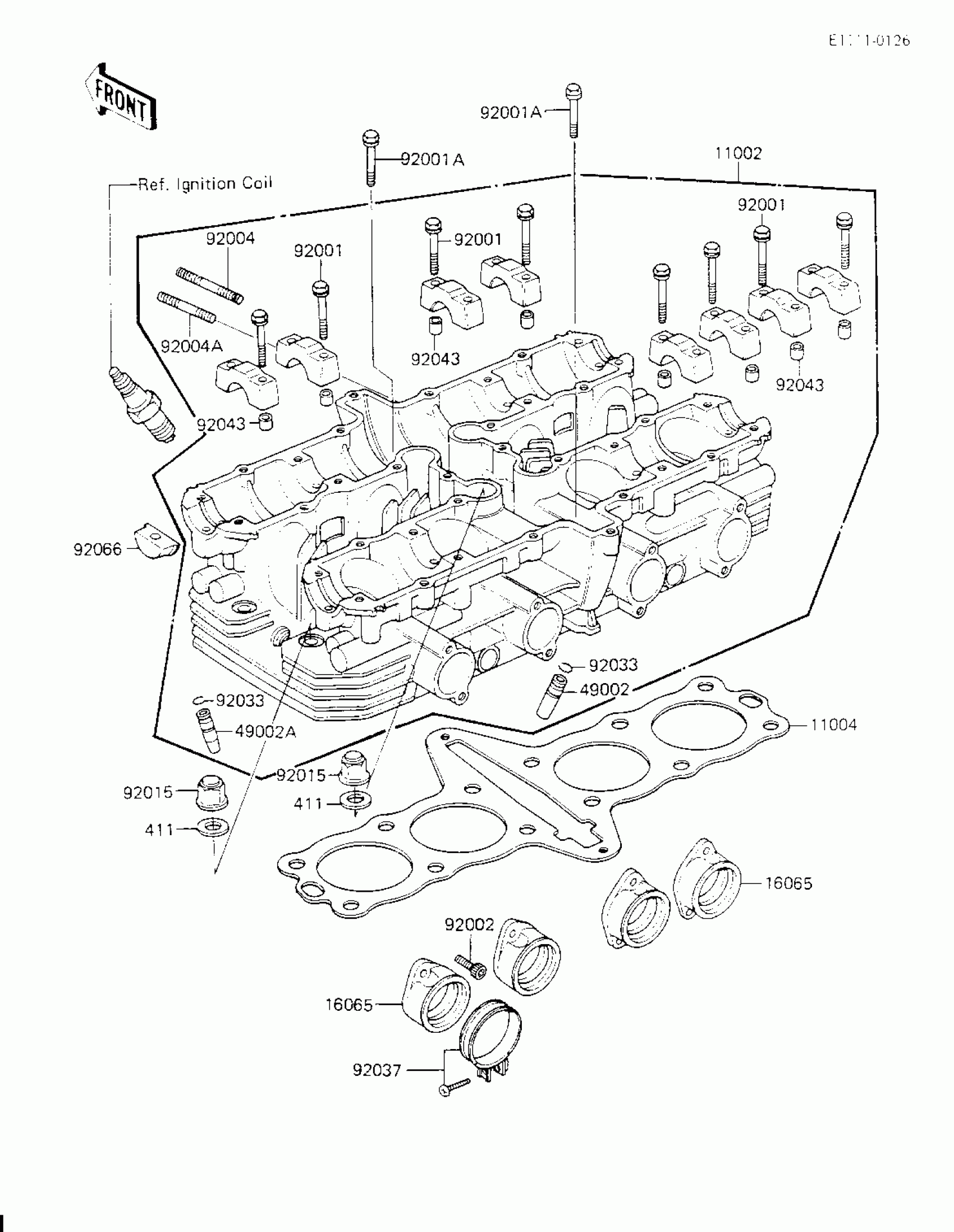

Kawasaki KZ700-A1 CYLINDER HEAD Diagram

Description

Price

11002

HEAD-ASSY-CYLINDER

11002-1186

Unavailable

11004

GASKET-HEAD,CYLINDER

11004-1101

$109.69

16065

HOLDER-CARBURETOR

16065-1132

$34.16

49002

GUIDE-VALVE,INTAKE

12013-009

$27.29

49002A

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92001

BOLT,FLANGED,6X38

92001-1105

$4.69

92001A

BOLT,FLANGED,8X43

92001-1445

Unavailable

92002

BOLT,6X16

92002-1143

$3.92

92004

STUD,8X35

92004-1009

$6.38

92004A

STUD,8X28.5

92004-1060

$4.87

92015

NUT,FLANGED CAP,10MM

92015-1181

Unavailable

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92037

CLAMP-INLET PIPE

92037-061

Unavailable

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92066

PLUG,CAMSHAFT,11.35X13.5

92066-1111

$12.21

411

WASHER-PLAIN,10MM

411B1000

$0.93
