1984 Kawasaki KZ700-A1 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

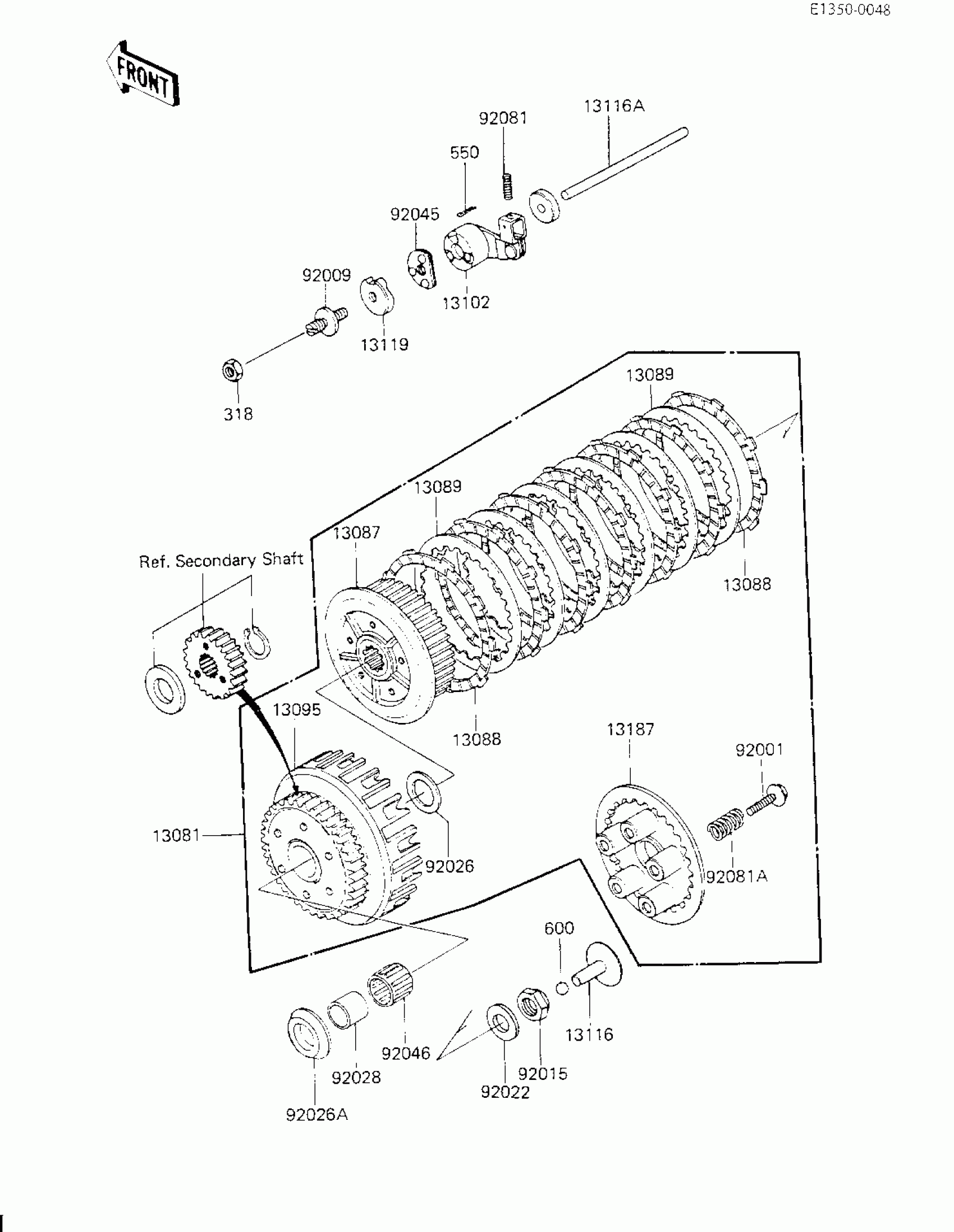

1984 Kawasaki KZ700-A1 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-1034

1
Out of stock

13087

HUB-CLUTCH

13087-043

1

$165.36

In stock

13088

1

$24.04

In stock

13089

PLATE,CLUTCH STEEL

13089-022

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1033

1
Out of stock

13102

RELEASE,CLUTCH

13102-1008

1
Out of stock

13116

PUSHER,CLUTCH SPRG P

13116-022

1
Out of stock

13116A

ROD,CLUTCH PUSH

13116-1007

1
Out of stock

13119

CAM-RELEASE,CLUTCH

13119-1003

1

$15.92

In stock

13187

PLATE,CLUTCH SPRING

13187-006

1
Out of stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92009

SCREW,8MM

92009-1009

1
Out of stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

1

$16.49

In stock

92028

BUSHING,25X32X23.6

92028-178

1

$23.53

In stock

92045

BEARING,BALL,CLUTCH

92045-1001

1

$9.19

In stock

92046

1

$19.92

In stock

92081

1

$5.98

In stock

92081A

SPRING,CLUTCH

92081-1176

1

$10.25

In stock

318

1

$0.63

In stock

550

1

$2.08

In stock

600

BALL-STEEL,3/8"

600A1200

1

$1.32

In stock
