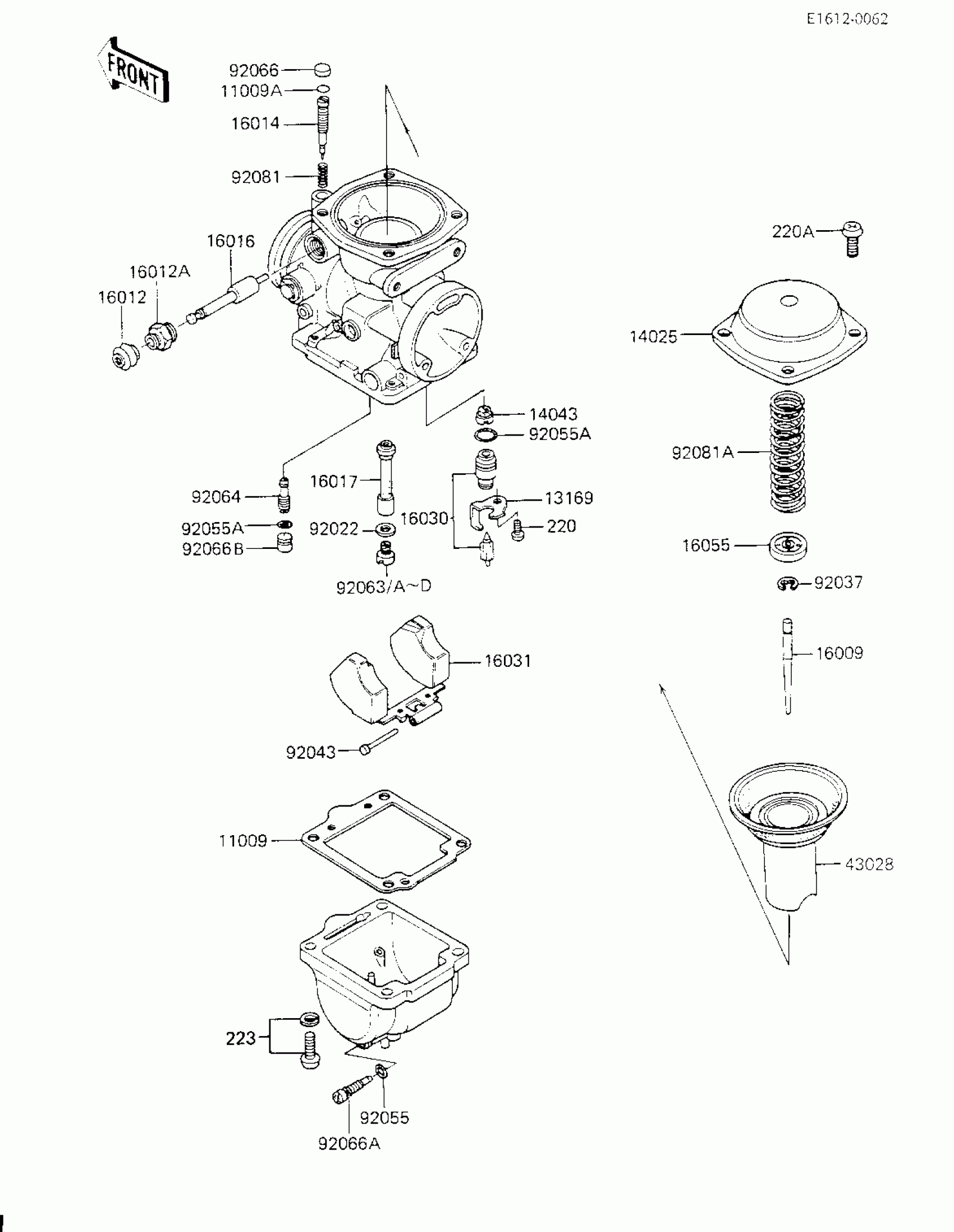

Kawasaki KZ700-A1 CARBURETOR PARTS Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1241

Unavailable

11009A

GASKET,"O"RING

16038-022

$6.89

13169

UNAVAILABLE IN PRICE BOOK

13169-148

Unavailable

14025

TOP-CHAMBER,MIXING

14025-1395

$87.04

14043

FILTER,FLOAT VALVE

14043-1010

$14.86

16009

NEEDLE-JET,4BE4

16009-1114

$29.02

16012

CAP-STARTER PLUNGER,RUBBER

16012-1010

$25.51

16012A

CAP-STARTER PLUNGER

16012-1011

$16.53

16014

SCREW-PILOT AIR

16014-1014

$27.54

16016

PLUNGER

16016-1019

$47.66

16017

JET-NEEDLE,Y-9

16017-1109

Unavailable

16030

VALVE-FLOAT,2.5

16030-1016

$58.86

16031

FLOAT

16031-1013

$64.88

16055

PLATE,NEEDLE

16055-010

$12.37

43028

DIAPHRAGM,VALVE

43028-1034

$219.60

92022

WASHER,MAIN JET

16034-001

$4.31

92037

CLAMP,E-TYPE

16008-014

$9.64

92043

PIN,FLOAT

16032-008

$6.57

92055

RING-O

92055-044

$10.38

92055A

RING-O

92055-1105

$5.00

92063

MAIN JET,#A102.5

92063-1028

$17.74

92063A

MAIN JET,#A100

92063-1033

$26.79

92063B

MAIN JET,#110R

92063-1038

$16.50

92063C

JET-MAIN,#A107.5R

92063-1041

Unavailable

92063D

MAIN JET,#A105R

92063-1042

$15.74

92064

JET-PILOT,#A37.5

92064-1036

$19.96

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92066A

PLUG,DRAIN

92066-1064

$12.37

92081

SPRING,PILOT SCREW

16022-016

$9.10

92081A

SPRING,DIAPHRAGM VALVE

92081-1363

$26.16

220

SCREW PAN HEAD 4X6

220B0406

$1.67

220A

SCREW PAN HEAD 5X8

220B0508

$0.46

223

SCREW-PAN-WS-CROS,5X16

223B0516

$5.19
