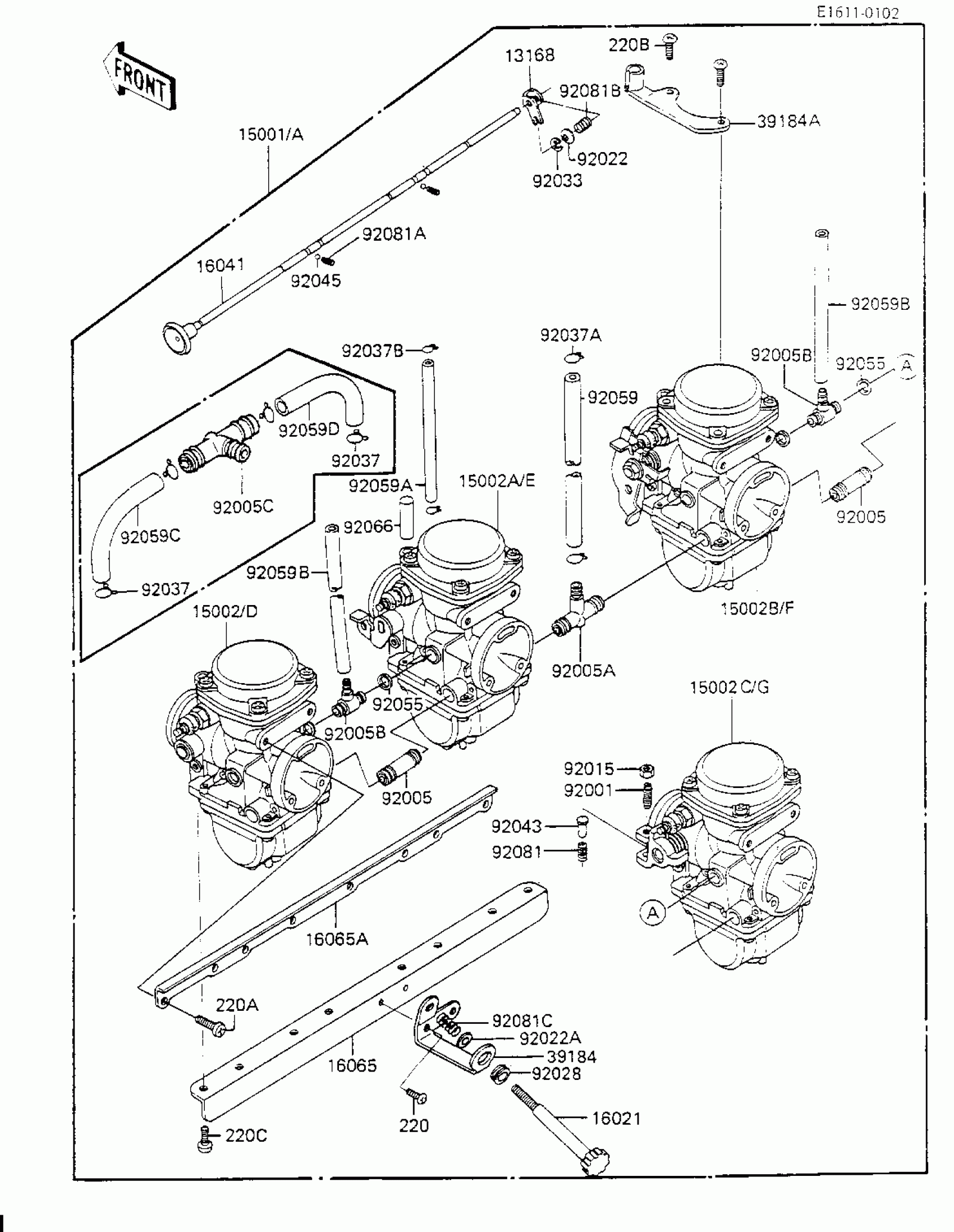

Find the part on the Carburetor Assy diagram for your 1984 Kawasaki KZ700-A1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KZ700-A1 Carburetor Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,CHOKE

13168-1091

1
Out of stock

15001

CARBURETOR-ASSY

15001-1088

1
Out of stock

15001A

CARBURETOR-ASSY

15001-1089

1
Out of stock

15002

CARBURETOR,LH,OUTSID

15002-1114

1
Out of stock

15002A

CARBURETOR,LH,INSIDE

15002-1115

1
Out of stock

15002B

CARBURETOR,RH,INSIDE

15002-1116

1
Out of stock

15002C

CARBURETOR,RH,OUTSID

15002-1117

1
Out of stock

15002D

CARBURETOR,LH,OUTSID

15002-1118

1
Out of stock

15002E

CARBURETOR,LH,INSIDE

15002-1119

1
Out of stock

15002F

CARBURETOR,RH,INSIDE

15002-1120

1
Out of stock

15002G

CARBURETOR,RH,OUTSID

15002-1121

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1103

1
Out of stock

16041

SHAFT-CARBURETOR,CHOKE

16041-1024

1
Out of stock

16065

HOLDER-CARBURETOR,LWR

16065-1043

1
Out of stock

16065A

HOLDER-CARBURETOR,UPP

16065-1044

1
Out of stock

39184

BRACKET-ASSY,IDLING ADJUSTER

39184-1007

1
Out of stock

39184A

BRACKET-ASSY,THROTTLE

39184-1009

1
Out of stock

92001

BOLT,ADJUSTING

92001-1447

1
Out of stock

92005

FITTING,FUEL,I-TYPE

92005-1035

1
Out of stock

92005A

FITTING,FUEL,T-TYPE

92005-1036

1
Out of stock

92005B

FITTING,AIR VENT

92005-1045

1
Out of stock

92005C

FITTING,T-TYPE

92005-1135

1
Out of stock

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

1
Out of stock

92022

WASHER,SPRING

92022-1255

1
Out of stock

92022A

WASHER,THROTTLE STOP SCREW

92022-1491

1
Out of stock

92028

BUSHING,IDLING ADJUSTER

92028-1266

1
Out of stock

92033

RING-SNAP,E-TYPE

92033-1066

1
Out of stock

92037

CLAMP,TUBE

92037-072

1
Out of stock

92037A

CLAMP,TUBE

92037-1184

1
Out of stock

92037B

CLAMP,BREATHER TUBE

92037-174

1
Out of stock

92043

PIN,THROTTLE VALVE ADJUST

92043-1079

1
Out of stock

92045

BALL,STEEL,1/8"

600A0400

1
Out of stock

92055

"0" RING

92055-510

1
Out of stock

92059

TUBE,7.5X12.5X225

92059-1123

1
Out of stock

92059A

TUBE,5X9X150

92059-1188

1
Out of stock

92059B

TUBE,6.5X9.5X220

92059-1261

1
Out of stock

92059C

TUBE,6.5X10.5X175

92059-1446

1
Out of stock

92059D

TUBE,6.5X10.5X125

92059-1447

1
Out of stock

92066

PLUG,12X25

92068-006

1
Out of stock

92081

SPRING,THROTTLE VALVE ADJUST

92081-1259

1
Out of stock

92081A

SPRING,SHAFT STOP

92081-1260

1
Out of stock

92081B

SPRING,CHOKE SHAFT

92081-1364

1
Out of stock

92081C

SPRING,THROTTLE STOP SCREW

92081-1377

1
Out of stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

220A

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

220B

SCREW-PAN-CROS

220B0512

1
Out of stock

220C

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock
