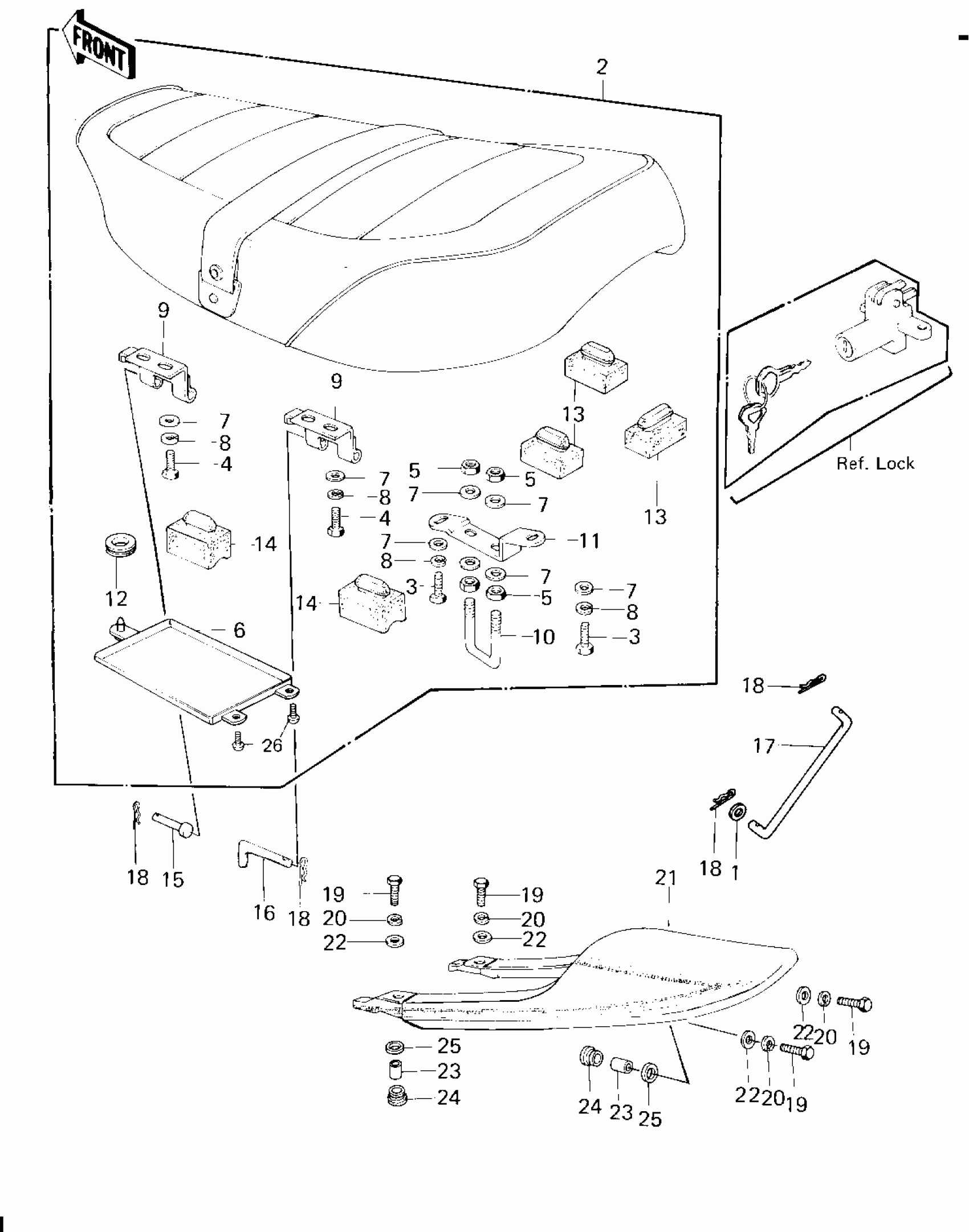

Kawasaki KZ650-F1 SEAT/SEAT COVER Diagram
#
Description
Price
1
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
2
SEAT-ASSY,DUAL,W/BAND
53001-1194
Unavailable
3
BOLT-UPSET 6X14
112B0614
Unavailable
4
BOLT-UPSET,6X16
112G0616
$1.10
5
NUT 6MM
311B0600
$0.93
6
CASE,MANUAL
32099-011
$16.66
7
WASHER PLAIN 6MM
411B0600
$2.84
8
WASHER SPRING 6MM
461F0600
$0.69
9
HINGE,FRONT
53009-031
Unavailable
10
HOOK,SEAT
53056-002
$16.66
11
BRACKET,SEAT CATCH
53058-004
Unavailable
12
GROMMET
92071-056
$4.26
13
DAMPER
92075-099
$5.52
14
DAMPER RUBBER-SEAT
92075-156
Unavailable
15
PIN,6X48
53011-002
$5.96
16
PIN,DUAL SEAT PIVOT
53011-008
Unavailable
17
STOPPER,SEAT
53054-006
Unavailable
18
PIN,SNAP
554A0600
$0.93
19
BOLT-UPSET
112G0625
$3.62
20
WASHER SPRING 6MM
461F0600
$0.69
21
COVER,SEAT,L.D.BLUE
14025-5019-7Z
Unavailable
21
COVER,SEAT,C.E.GREEN
14025-5026-4U
Unavailable
22
WASHER,7X24X1.6
92022-228
$3.92
23
COLLAR
92027-241
$6.57
24
RUBBER,FENDER COVER
92075-174
$4.78
25
DAMPER,FEMALE
92075-175
$4.39
26
SCREW PAN HEAD 5X10
220B0510
$0.69
