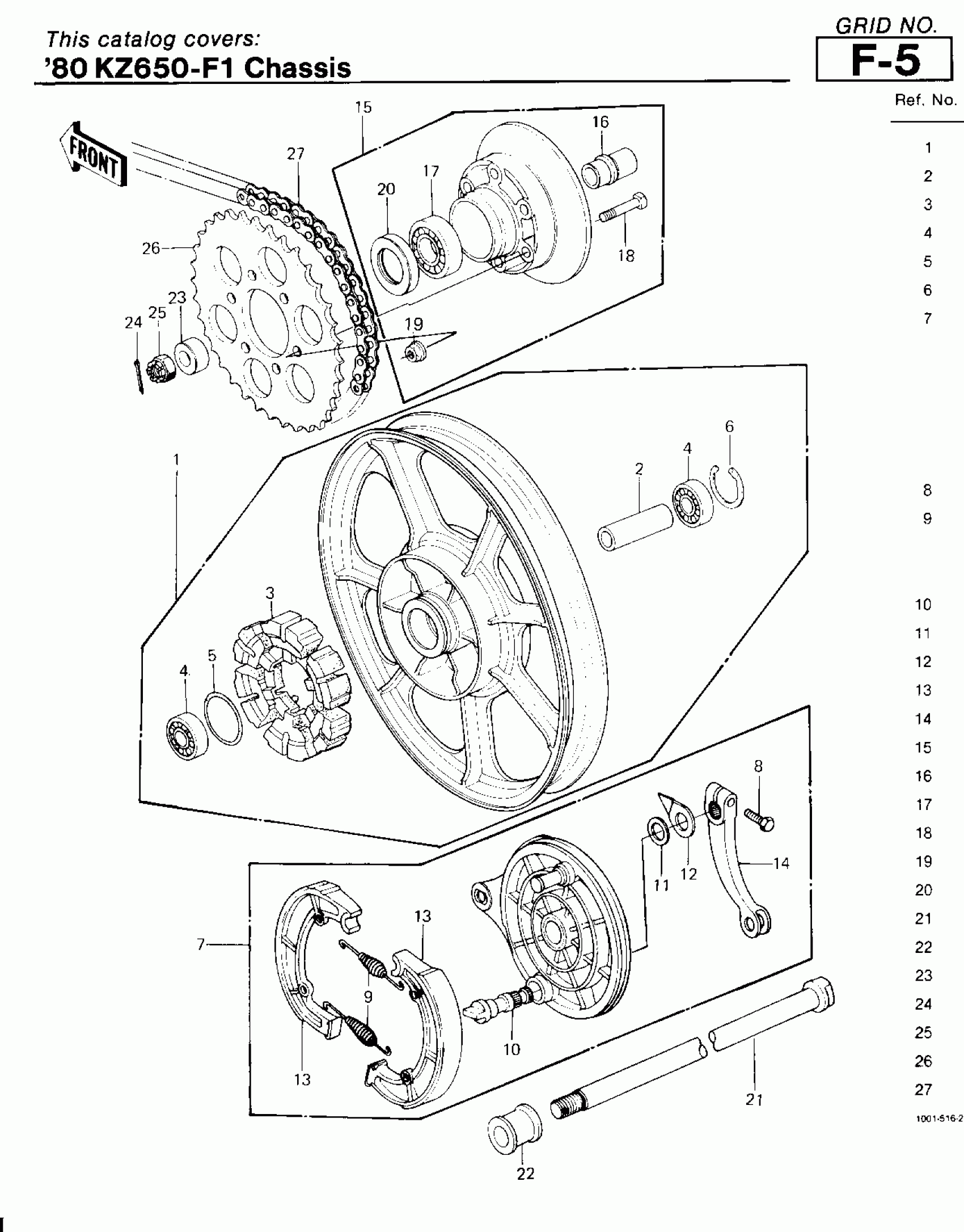

Kawasaki KZ650-F1 REAR WHEEL/HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

SOLID WHEEL ASSY, RR

41073-1103

$701.01

2

SPACER,REAR HUB BRG

42010-033

Unavailable

3

DAMPER,REAR HUB SHOCK

42014-026

Unavailable

4

BEARING-BALL,#6303ZZC3

601B6303ZZ

$41.16

5

O RING,55MM

671B2555

$4.67

6

RING-SNAP,47MM

92033-1042

$3.22

7

PANEL-ASY,RR BRK

41035-1056

$365.56

7

PANEL-ASY,RR BRK

41035-1056

Unavailable

7

PANEL-ASY,BRK BLACK

41035-1055

$681.07

7

PANEL-ASY,BRK BLACK

41035-1055

Unavailable

8

BOLT HEX HEAD 8X28

114G0828

Unavailable

9

SPRING,BRAKE SHOE

41049-012

$7.23

9

SPRING,BRAKE SHOE

41049-012

$7.23

10

CAM-BRAKE

41050-017

Unavailable

11

SEAL,BRAKE CAM

41051-003

$3.25

12

INDICATOR,BRAKE SHOE

41085-004

Unavailable

13

SHOE,BRAKE

42019-012

$37.86

14

LEVER-BRAKE CAM

42029-039

Unavailable

15

COUPLING ASSY,REAR HB

42008-032

$174.54

16

SLEEVE,REAR HUB COUPL

42036-026

Unavailable

17

BEARING-BALL,#6305C3

601B6305

$20.88

18

BOLT-REAR SPROCKET

92003-087

Unavailable

19

NUT,FLANGED,10MM

92015-1415

$3.57

20

OIL,SEAL,#38629

92050-076

Unavailable

21

AXLE,RR

41068-1086

$80.14

22

COLLAR REAR AXLE

42032-017

Unavailable

23

COLLAR,REAR AXLE,L.H.

42032-067

Unavailable

24

PIN-COTTER,4.0X35

550D4035

$1.57

25

NUT,16MM

92015-055

$11.03

26

REAR SPROCKET 50T

42041-065

$56.69

27

CHAIN,DRIVE,EK50MV-OX102L

92057-1232

Unavailable
