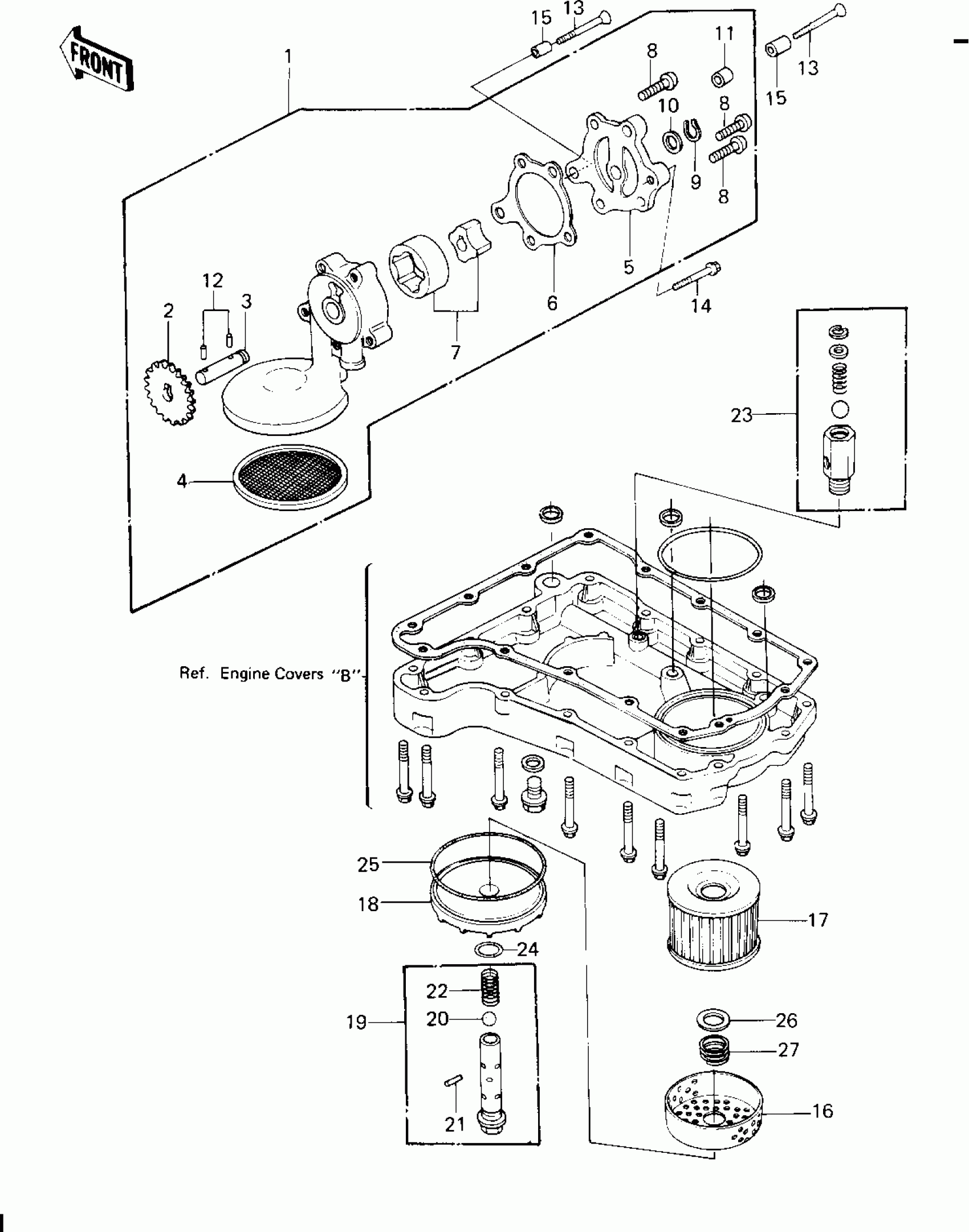

Kawasaki KZ650-F1 OIL PUMP/OIL FILTER Diagram

#

Description
Price

1

PUMP-ASSY-OIL

16082-064

Unavailable

2

GEAR,OIL PUMP,57T

16085-025

Unavailable

3

SHAFT,OIL PUMP

16086-004

Unavailable

4

FILTER,OIL PUMP

16111-004

$44.36

5

COVER-PUMP

16142-005

$38.50

6

GASKET,OIL PUMP COVER

16145-004

$3.32

7

ROTOR-PUMP

16154-003

$88.29

8

SCREW PAN HEAD 6X22

220B0622

$3.71

9

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

10

WASHER,11.2X15X1

92022-311

$3.92

11

PIN,DOWEL,8X10

92043-1302

$1.03

12

PIN,DOWEL,4X12.8

92042-041

$6.57

13

SCREW-CSK-CROS,6X50

221B0650

$3.84

14

BOLT,FLANGED,6X45

92001-165

$5.24

15

PIN,DOWEL,8X28

92042-050

$4.31

16

PLATE,OIL FILTER

13169-1110

$7.62

17

ELEMENT-OIL FILTER

16099-003

$12.20

18

COVER,OIL FILTER

16101-004

$44.52

19

VALVE,OIL FILTER

16126-1108

$41.98

20

BALL-STEEL,3/8"

600A1200

$1.56

21

PIN,SPRING,2X20

92043-111

$6.27

22

SPRING

92081-109

$11.29

23

VALVE-ASSY-RELIEF

16130-1001

Unavailable

24

O RING,16MM

670B2016

$1.36

25

O RING,90MM

671B2590

$9.91

26

WASHER,20.5X30X1

92022-1012

$4.34

27

SPRING,OIL FILTER

92081-1018

$4.65
