Description

Price

1

PLATE-DRUM LEV POSTON

13169-007

Unavailable

2

SCREW-CSK-CROS,6X12

221B0612

$2.06

3

BOLT-SMALL-UPSET

115B0832

Unavailable

4

PEDAL ASSY,KICK

13064-1005

Unavailable

5

BOSS,KICK

13061-1008

Unavailable

6

DAMPER,KICK PEDAL

13063-004

$10.94

7

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

8

BALL-STEEL,1/4

600A0800

$0.62

9

WASHER,15.2X20X1

92022-1019

$5.23

10

PLUG,A,KICKSTARTER

92066-058

$3.62

11

SPRING

92081-154

Unavailable

12

SHAFT,KICKSTARTER

13066-045

Unavailable

13

GEAR,KICKSTARTER,20T

13068-035

Unavailable

14

RATCHET,KICK SHAFT

13078-011

Unavailable

15

CIRCLIP-TYPE-C,19MM

480J1900

$1.28

16

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

17

WASHER,20.5X30X1,STEEL

92022-112

$8.86

18

SPRING RATCHET

92081-104

$10.23

19

CAP,KICKSTARTER

92102-008

Unavailable

20

GUIDE,KICK SPRING

13070-009

Unavailable

21

SPRING,KICK RETURN

92082-006

Unavailable

22

BOLT-UPSET

112G0614

$1.96

23

STOPPER,KICKSTARTER

13072-018

Unavailable

24

BUSHING,KICK SHAFT

92028-175

$17.51

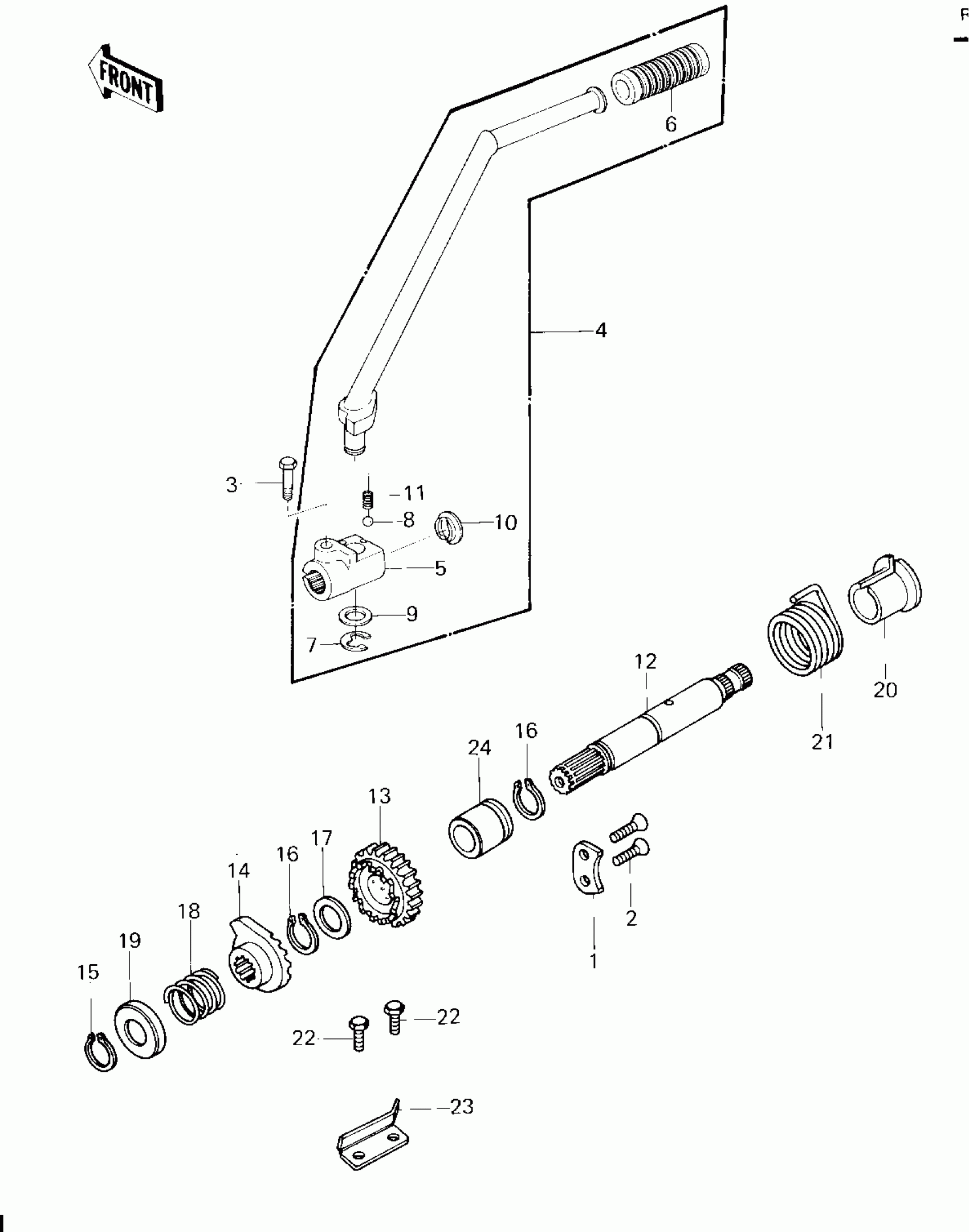

Kawasaki KZ650-F1 KICKSTARTER MECHANISM Diagram

PLATE-DRUM LEV POSTON

SCREW-CSK-CROS,6X12

BOLT-SMALL-UPSET

PEDAL ASSY,KICK

BOSS,KICK

DAMPER,KICK PEDAL

CIRCLIP-TYPE-E,10MM

BALL-STEEL,1/4

WASHER,15.2X20X1

PLUG,A,KICKSTARTER

SPRING

SHAFT,KICKSTARTER

GEAR,KICKSTARTER,20T

RATCHET,KICK SHAFT

CIRCLIP-TYPE-C,19MM

CIRCLIP-TYPE-C,20MM

WASHER,20.5X30X1,STEEL

SPRING RATCHET

CAP,KICKSTARTER

GUIDE,KICK SPRING

SPRING,KICK RETURN

BOLT-UPSET

STOPPER,KICKSTARTER

BUSHING,KICK SHAFT
