Description

Price

1

BOLT,8X63

92001-1397

$5.43

2

BREAKER ASSY,CONTACT

21008-1012

Unavailable

3

BREAKER,CONTACT

21008-028

$71.65

4

BREAKER,CONTACT

21008-027

$71.65

5

SCREW PAN HEAD 4X6

220B0406

$1.67

6

WASHER SPRING 4MM

461F0400

Unavailable

7

WASHER PLAIN 4MM

410B0400

$0.48

8

BRUSH,OIL

21019-005

$5.39

9

CONDENSER

21013-037

Unavailable

10

WIRING HARNESS,BREAKR

26001-1081

$41.38

11

CLAMP,WIRING HARNESS

21126-008

$4.73

12

ADVANCER,AUTMATC TMNG

21148-011

Unavailable

13

COIL,IGNITION,#1.4

21121-1001

Unavailable

14

COIL,IGNITION,#2.3

21121-1002

$302.55

15

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

16

GROMMET,PLUG CAP

21131-004

$10.97

17

GROMMET,HIGH TENSION

21132-005

$4.26

18

SCREW-PAN-CROS

220B0512

$0.47

19

WASHER,BREAKER GOVERNOR

92022-244

$14.09

20

SPARK PLUG B7ES

B7ES

Unavailable

20

SPARK PLUG B8ES

B8ES

Unavailable

21

NUT,FLANGED,6MM

92015-1078

Unavailable

22

CAP-ASSY-PLUG

21160-005

$51.69

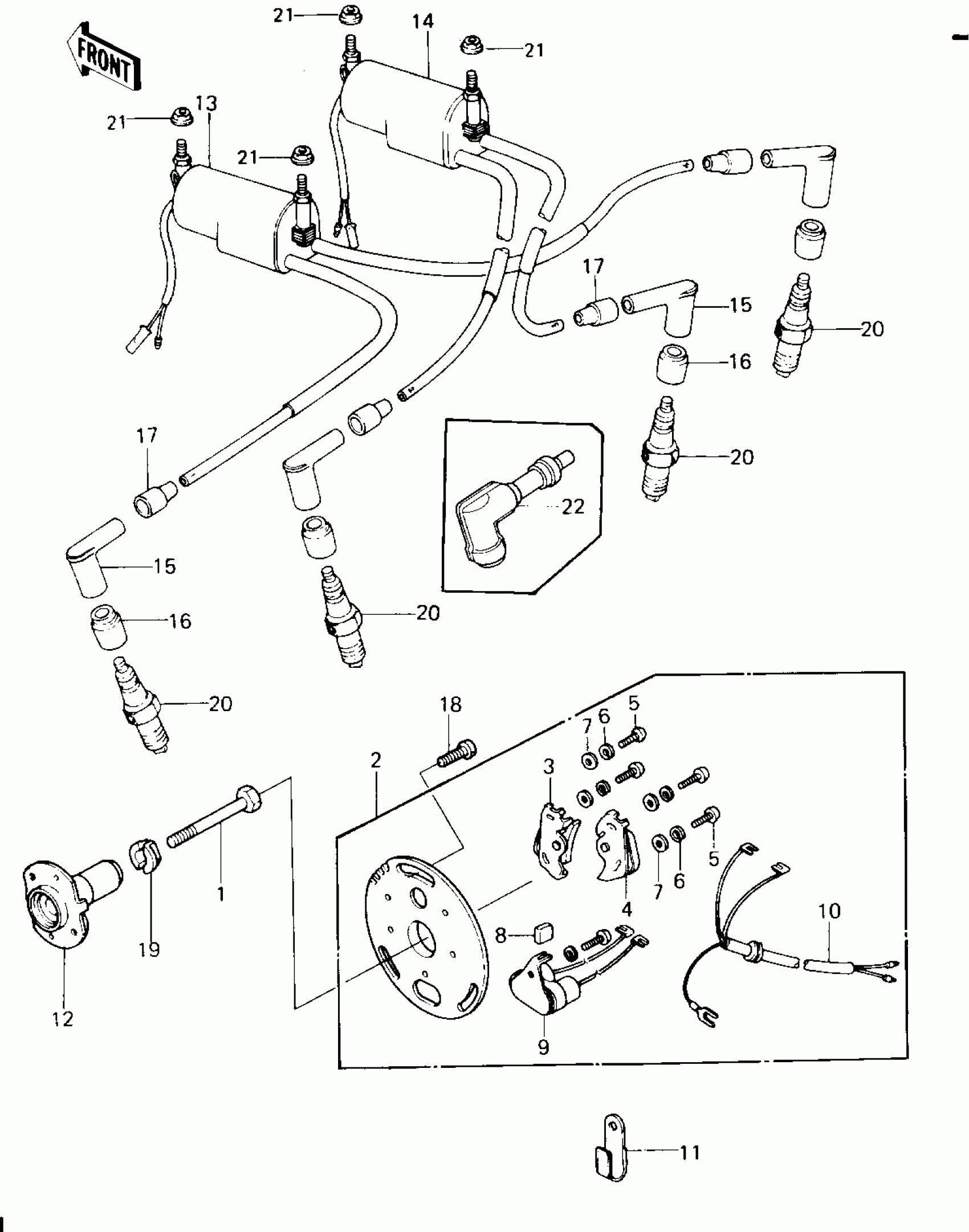

Kawasaki KZ650-F1 IGNITION Diagram

BOLT,8X63

BREAKER ASSY,CONTACT

BREAKER,CONTACT

BREAKER,CONTACT

SCREW PAN HEAD 4X6

WASHER SPRING 4MM

WASHER PLAIN 4MM

BRUSH,OIL

CONDENSER

WIRING HARNESS,BREAKR

CLAMP,WIRING HARNESS

ADVANCER,AUTMATC TMNG

COIL,IGNITION,#1.4

COIL,IGNITION,#2.3

CAP-SPARK PLUG,RTFM20

GROMMET,PLUG CAP

GROMMET,HIGH TENSION

SCREW-PAN-CROS

WASHER,BREAKER GOVERNOR

SPARK PLUG B7ES

SPARK PLUG B8ES

NUT,FLANGED,6MM

CAP-ASSY-PLUG
