Description

Price

1

LAMP UNIT,HEAD

23003-017

$400.76

2

SCREW-PAN-CROS

220B0312

$1.58

3

RIM,HEAD LAMP

23006-038

Unavailable

4

SEALD BEAM UNIT

23007-041

Unavailable

5

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

6

SPRING,FOCUS ADJUSTING

23014-005

$3.62

7

SCREW,FOCUS ADJUSTING

23019-021

$4.69

8

SCREW,PAN HEAD,5X12

23019-023

$5.43

9

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

10

NUT,5MM

23020-023

Unavailable

11

WASHER,4.1X8X0.8

23021-004

$2.91

12

WASHER,PLAIN,5MM

23021-012

$5.43

13

RING,HEAD LAMP MOUNT

23072-001

$44.17

14

RING,HEAD LAMP MOUNT

23074-001

$64.65

15

BODY-COMP-HEAD LAMP

23005-1015-21

$231.11

16

SCREW,SPECIAL,5X14

23019-022

$2.12

17

DAMPER RUBBER

23066-015

Unavailable

18

DAMPER RUBBER

23066-016

Unavailable

19

COLLAR

23076-005

$49.11

20

GROMMET

92071-1008

Unavailable

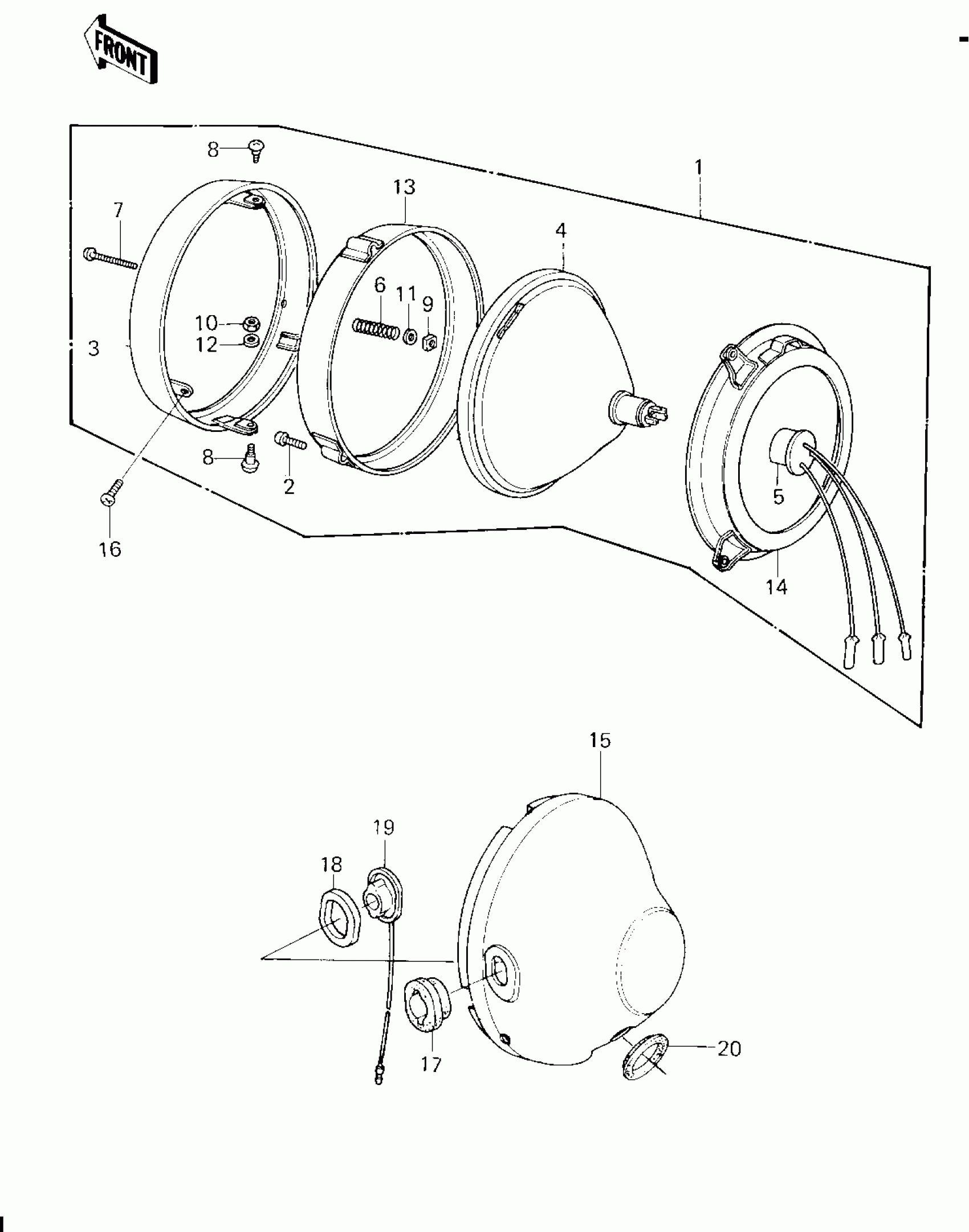

Kawasaki KZ650-F1 HEADLIGHT Diagram

LAMP UNIT,HEAD

SCREW-PAN-CROS

RIM,HEAD LAMP

SEALD BEAM UNIT

SOCKET ASSY,HEAD LAMP

SPRING,FOCUS ADJUSTING

SCREW,FOCUS ADJUSTING

SCREW,PAN HEAD,5X12

NUT,4MM,FOCUS ADJUST

NUT,5MM

WASHER,4.1X8X0.8

WASHER,PLAIN,5MM

RING,HEAD LAMP MOUNT

RING,HEAD LAMP MOUNT

BODY-COMP-HEAD LAMP

SCREW,SPECIAL,5X14

DAMPER RUBBER

DAMPER RUBBER

COLLAR

GROMMET
