Description

Price

1

TANK-FUEL,L.D.BLUE

51001-5037-7Z

$592.33

1

TANK-FUEL,C.E.GREEN

51001-5059-4U

$440.35

2

BRACKET,IGNITION COIL

11034-1125

Unavailable

3

DAMPER,FUEL TANK

92075-101

$6.22

4

DAMPER,IGNITION COIL

92075-1033

Unavailable

5

DAMPER,FUEL TANK

92075-295

$9.17

6

CAP,FUEL TANK

51048-012

Unavailable

7

GASKET-FUEL TANK CAP

51059-008

$10.97

8

PIN,HOOK

92043-126

Unavailable

9

PIN,CAP HINGE

92043-127

$5.24

10

TAP ASSY,FUEL

51023-1023

Unavailable

11

SCREW-PAN-CROS,3X8

220B0308

$0.59

12

GASKET,TAP VALVE

11009-1194

$9.95

13

RING,TAP FLANGED

51039-010

$7.55

14

GASKET,DRAIN BOLT

11009-1045

Unavailable

15

BOLT,DRAIN

92001-1089

Unavailable

16

DIAPHRAGM,TAP

43028-1015

$21.93

17

O RING,4MM

670B1504

$4.11

18

SPRING,TAP DIAPHRAGM

92081-1171

$4.35

19

COVER-ASSY,TAP DIAPHRAGM

16146-1005

$21.09

20

SCREW CNTSNK HD 4X12

221B0412A

$0.90

21

RING-O,TAP LEVER

92055-1027

$5.23

22

BOLT,6X20

92001-1091

$3.92

23

WASHER-PLAIN

92022-183

$3.92

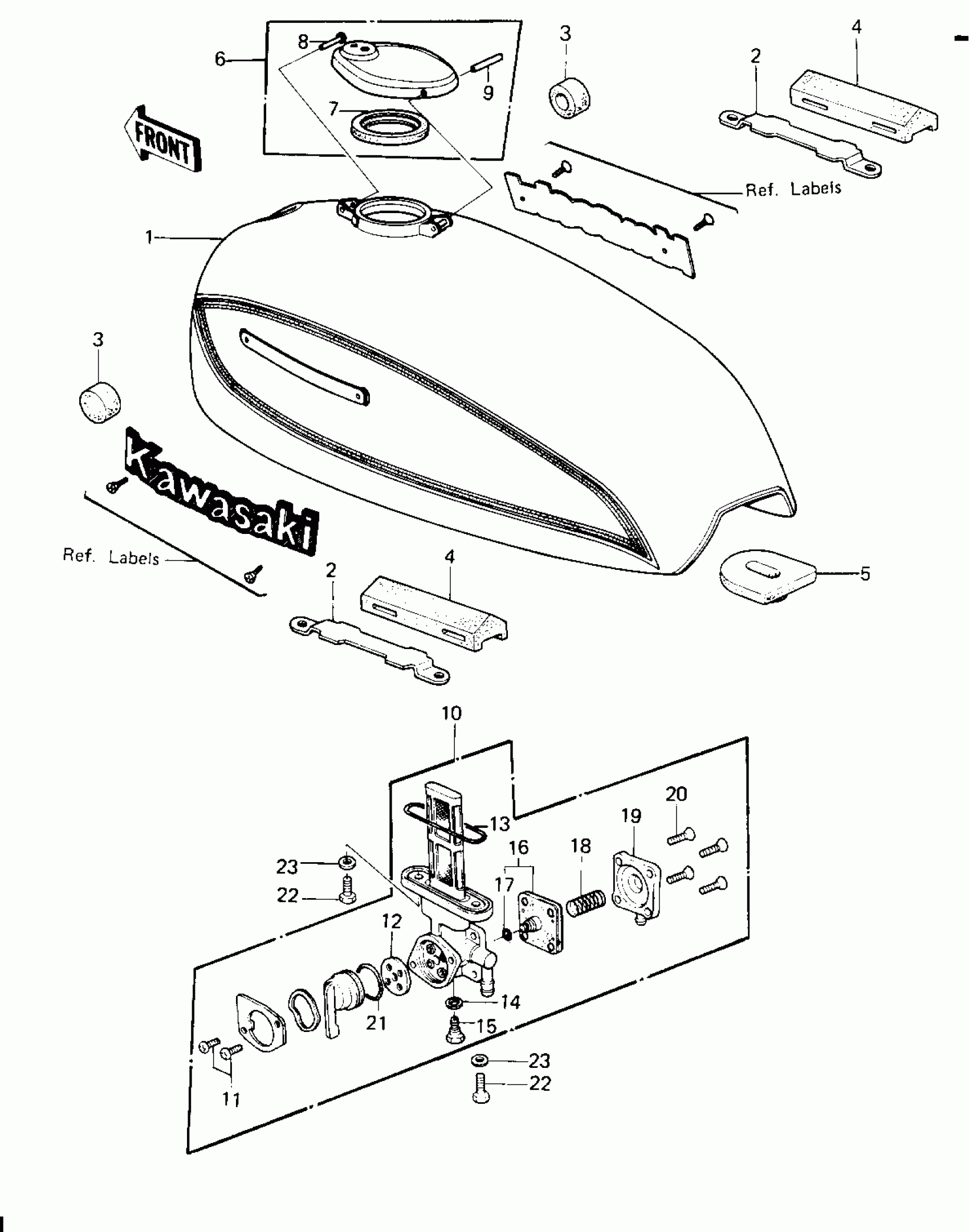

Kawasaki KZ650-F1 FUEL TANK Diagram

TANK-FUEL,L.D.BLUE

TANK-FUEL,C.E.GREEN

BRACKET,IGNITION COIL

DAMPER,FUEL TANK

DAMPER,IGNITION COIL

DAMPER,FUEL TANK

CAP,FUEL TANK

GASKET-FUEL TANK CAP

PIN,HOOK

PIN,CAP HINGE

TAP ASSY,FUEL

SCREW-PAN-CROS,3X8

GASKET,TAP VALVE

RING,TAP FLANGED

GASKET,DRAIN BOLT

BOLT,DRAIN

DIAPHRAGM,TAP

O RING,4MM

SPRING,TAP DIAPHRAGM

COVER-ASSY,TAP DIAPHRAGM

SCREW CNTSNK HD 4X12

RING-O,TAP LEVER

BOLT,6X20

WASHER-PLAIN
