Description

Price

1

AXLE,FRONT

41068-049

$132.80

2

COLLAR,FRONT AXLE

41069-032

$26.55

3

COLLAR,FRONT AXLE

41069-033

Unavailable

4

SOLID WHEEL ASSY,FR

41073-1058

$745.05

5

SCREW-PAN-CROS

220B0512

$0.47

6

WASHER PLAIN 5MM

410B0500

$0.46

7

COLLAR,BRG

41039-028

Unavailable

8

DUST COVER

41042-014

Unavailable

9

DUST COVER

41042-016

Unavailable

10

BEARING-BALL,#6203ZC3

601B6203Z

$27.81

11

OIL SEAL

654A254008

$25.75

12

BOLT,FLANGED,10X30

92001-1173

$11.07

13

RING-SNAP,40MM

92033-1040

$5.90

14

GEAR BOX ASSY,SPEEDO

41078-1012

$171.28

15

GEAR-METER SCREW,26T

41059-026

$42.53

16

PINION,SPEEDOMETER

41060-017

Unavailable

17

WASHER,5.1X9X0.4

41063-001

$4.69

18

RECEIVER,GEAR

41064-013

Unavailable

19

PIN,SPRING

41082-001

$3.92

20

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

21

BUSHING,SPEEDOMETER

92028-1066

$11.29

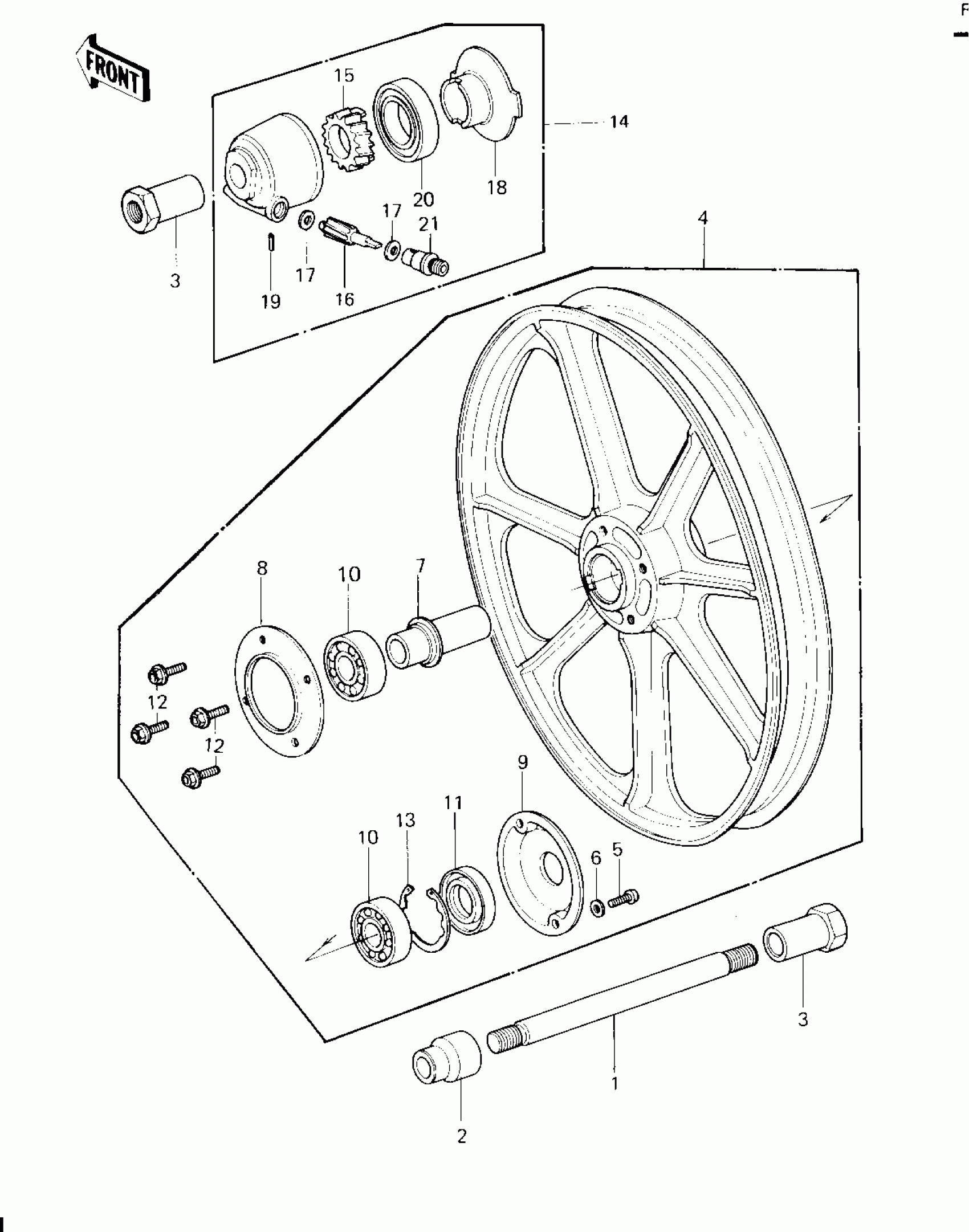

Kawasaki KZ650-F1 FRONT WHEEL/HUB Diagram

AXLE,FRONT

COLLAR,FRONT AXLE

COLLAR,FRONT AXLE

SOLID WHEEL ASSY,FR

SCREW-PAN-CROS

WASHER PLAIN 5MM

COLLAR,BRG

DUST COVER

DUST COVER

BEARING-BALL,#6203ZC3

OIL SEAL

BOLT,FLANGED,10X30

RING-SNAP,40MM

GEAR BOX ASSY,SPEEDO

GEAR-METER SCREW,26T

PINION,SPEEDOMETER

WASHER,5.1X9X0.4

RECEIVER,GEAR

PIN,SPRING

SEAL-OIL,BJN30427-C3

BUSHING,SPEEDOMETER
