1980 Kawasaki KZ650-F1 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1980 Kawasaki KZ650-F1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

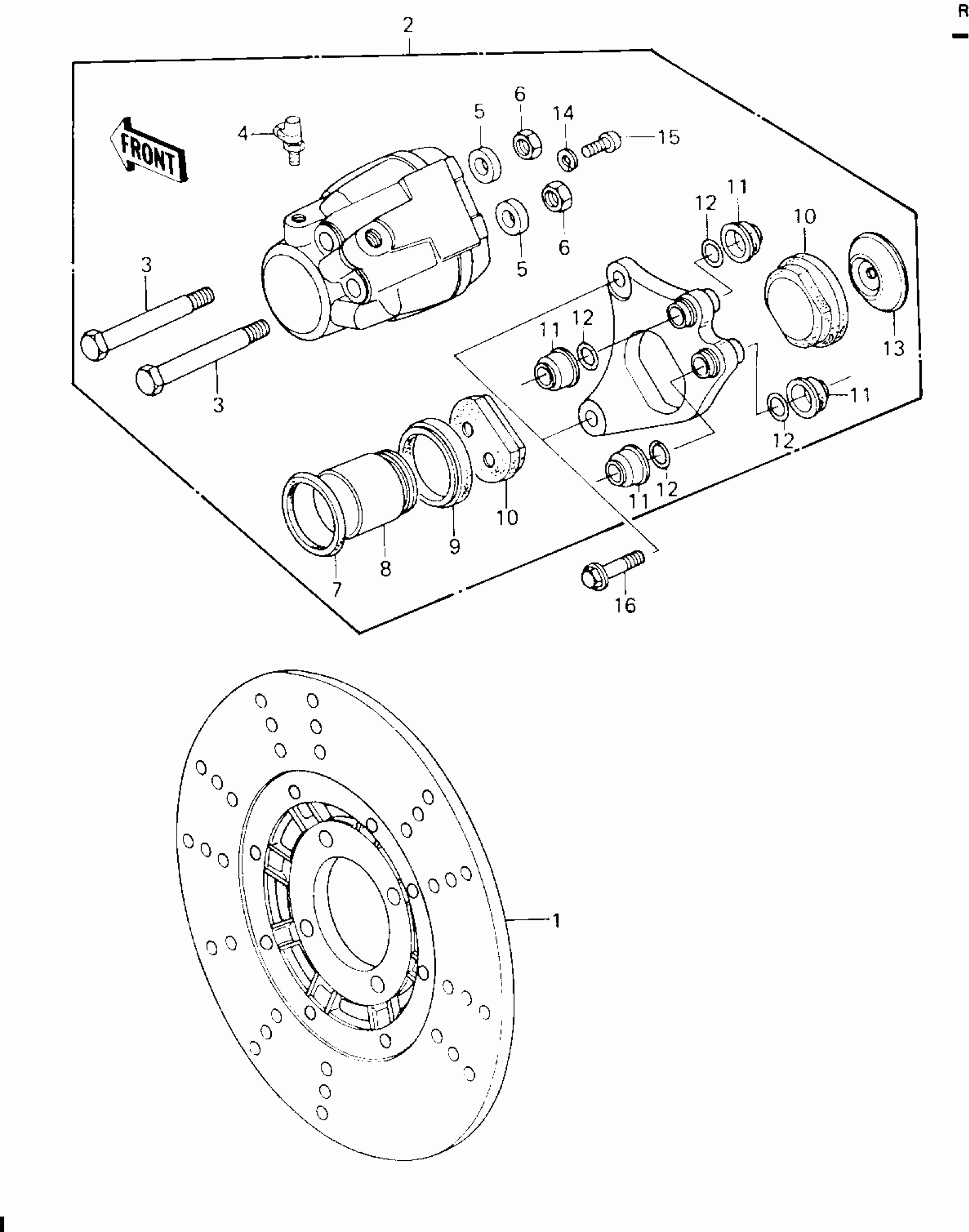

1980 Kawasaki KZ650-F1 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC PLATE,FRONT BRA

41080-1022

1
Out of stock

2

CALIPER ASSY,L.H,

43041-1024

1
Out of stock

3

BOLT

43045-006

1
Out of stock

4

BLEEDER SET

43085-001

1
Out of stock

5

PLUG

43088-002

1
Out of stock

6

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

7

PACKING,PISTON SEAL

43049-002

1
Out of stock

8

PISTON,BRAKE,42M/M

43020-1012

1
Out of stock

9

DUST SEALD,RUBBER

43054-003

1
Out of stock

10

PAD SET

43082-1001

1
Out of stock

11

DUST SHILD,SHAFT

43052-005

1
Out of stock

12

"0" RING

43053-006

1
Out of stock

13

SPACER

43040-004

1
Out of stock

14

WASHER SPRING 6MM

461F0600

1
Out of stock

15

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

16

BOLT,FLANGED,10X38

92001-1293

1
Out of stock
