Description

Price

1

BOLT-UPSET,6X12

112G0612

$1.45

2

WASHER SPRING 6MM

461F0600

$0.69

3

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

4

WASHER SPRING 8MM

461F0800

$0.40

5

SCREW,OVL CNTSNK,6X16

222E0616

$2.98

6

FENDER-FR

35001-1017

$234.79

7

STAY,FRONT FENDER,L.H

35011-1001

$18.67

8

STAY,FRONT FENDER,R.H

35011-1002

$18.61

9

SPACER,FRONT FENDER

92026-1008

Unavailable

10

BOLT-UPSET,6X16

112G0616

$1.10

11

BOLT-UPSET 6X14

112B0614

Unavailable

12

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

13

WASHER SPRING 6MM

461F0600

$0.69

14

FENDER-RR

35022-1046

$81.19

15

FENDER-RR

35022-153

Unavailable

16

GROMMET,10MM

92071-019

$3.89

17

NUT,FLANGED,6MM

92015-1078

Unavailable

18

WASHER,6.5X20X1.6

92022-125

$1.40

19

DAMPER RUBBER,RR FEN

92075-135

$5.59

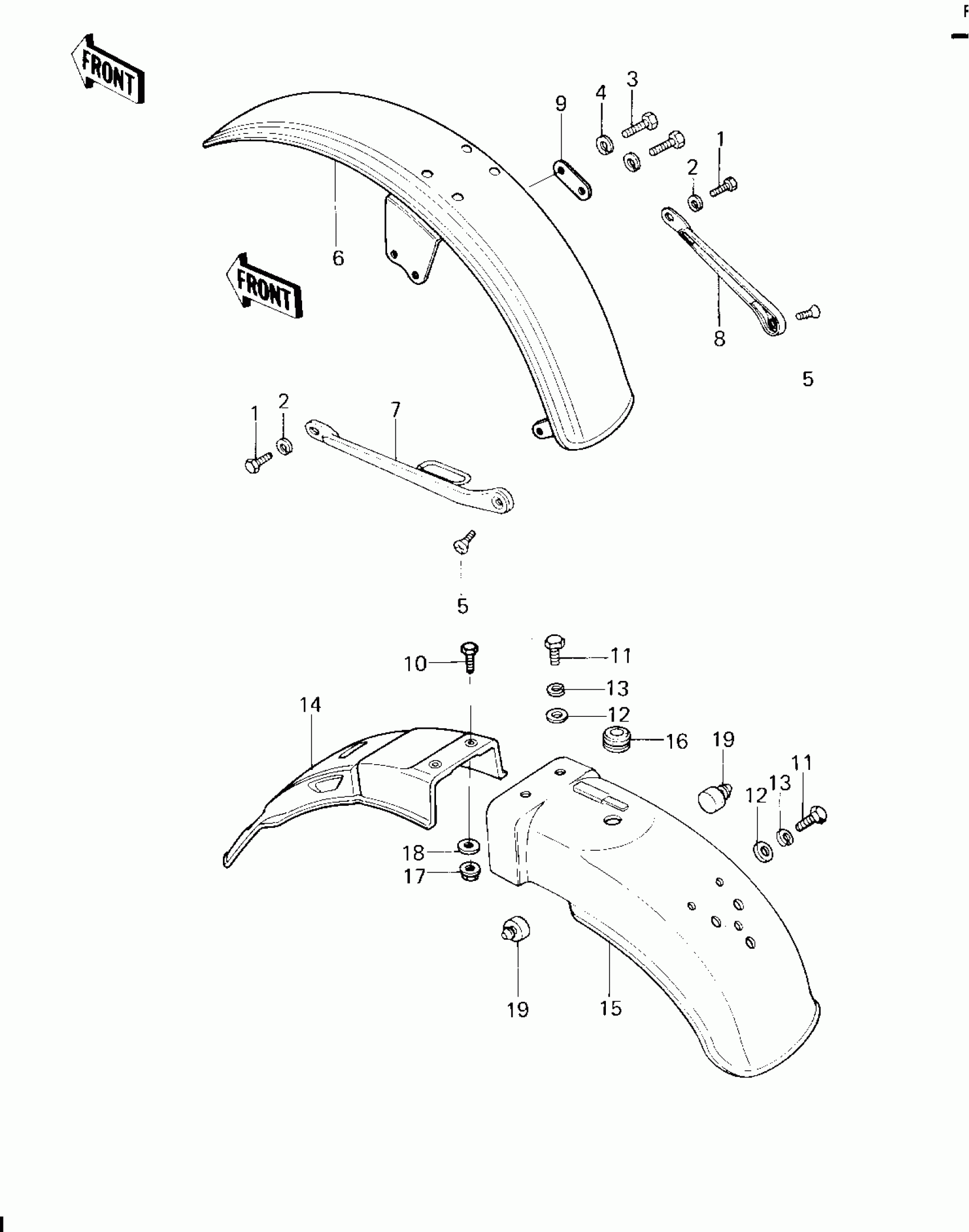

Kawasaki KZ650-F1 FENDERS Diagram

BOLT-UPSET,6X12

WASHER SPRING 6MM

BOLT-SMALL-UPSET,8X16

WASHER SPRING 8MM

SCREW,OVL CNTSNK,6X16

FENDER-FR

STAY,FRONT FENDER,L.H

STAY,FRONT FENDER,R.H

SPACER,FRONT FENDER

BOLT-UPSET,6X16

BOLT-UPSET 6X14

WASHER-PLAIN-SMALL,6MM

WASHER SPRING 6MM

FENDER-RR

FENDER-RR

GROMMET,10MM

NUT,FLANGED,6MM

WASHER,6.5X20X1.6

DAMPER RUBBER,RR FEN
