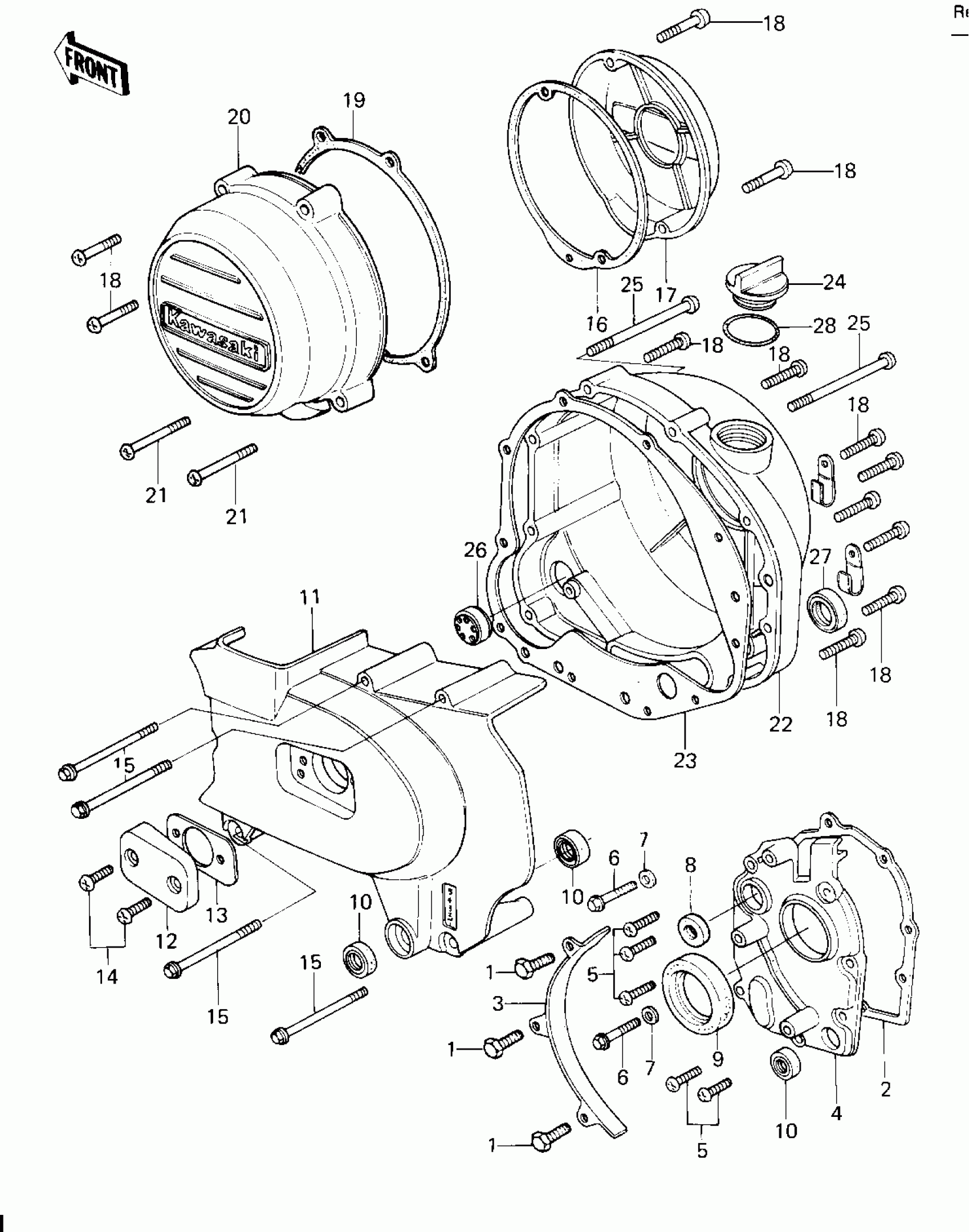

Kawasaki KZ650-F1 ENGINE COVERS Diagram

#

Description
Price

1

BOLT-UPSET 6X14

112B0614

Unavailable

2

GASKET,TRANSMISSION COVER

11060-1056

Unavailable

3

GUIDE-CHAIN

12053-1006

$10.97

4

COVER,MISSION

14024-011

Unavailable

5

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

6

BOLT,HEX HEAD,6X35

92001-164

$6.60

7

WASHER OIL PUMP BANJO

92022-077

$3.99

8

OIL SEAL,TC7187

92050-048

$25.59

8

SEAL-OIL,SD-8187

92049-1017

$9.89

9

SEAL-OIL,SC325210

92050-024

$8.17

10

SEAL-OIL,TB13225.5

92051-005

$7.74

11

COVER,ENG SPROCKT,BUF

14026-035-80

Unavailable

12

COVER,CLUTCH ADJUSTNG

14028-006-80

Unavailable

13

GASKET,CLUTCH ADJ CAP

14049-004

$10.50

14

SCREW PAN HEAD 6X18

220B0618

$3.67

15

BOLT-FLANGED,6X70

130G0670

$4.28

16

GASKET,PULSING COIL CAP

11060-1053

$8.12

17

CAP,CONTACT BREAKER

11012-1098

Unavailable

18

SCREW PAN HEAD 6X30

220B0630

$3.41

19

GASKET,GENERATOR COVER

11009-1987

$11.80

20

COVER,GENERATOR

14031-1040

Unavailable

21

SCREW PAN HEAD 6X40

220B0640

Unavailable

22

COVER,R.H.ENG,BUFF FN

14032-117-80

Unavailable

23

GASKET,R.H.ENG COVER

14046-035

$30.54

24

CAP-OIL FILLER

16115-013

$19.96

25

SCREW PAN HEAD 6X80

220B0680

$7.20

26

GAUGE,OIL LEVEL

52015-004

$48.05

27

SEAL-OIL,SB20285

92049-012

$10.89

28

RING-O,31.5X2.6

92055-049

$4.31
