Description

Price

1

CYLINDER

11005-1039

Unavailable

1

CYLINDER

11005-1077

Unavailable

2

GASKET

11060-1362

Unavailable

3

PIN,11X14X12.3

92043-1266

$1.08

4

PIN,OIL LINE

92043-1210

$7.62

5

RING-O,CYLINDER OIL LINE PIN

92055-1147

$9.89

6

PLUG,DAMPER

92066-1016

Unavailable

7

PISTON,STD

13001-1002

Unavailable

7

PISTON,0.020",O.S.

13029-077

Unavailable

7

PISTON,0.040",O.S.

13027-069

Unavailable

8

PIN-PISTON

13002-032

Unavailable

9

RING SET,PISTON,STD

13008-059

$141.16

9

RING SET,0.020",O.S.

13025-061

Unavailable

9

RING SET,0.040",O.S.

13024-060

Unavailable

10

RING-SNAP

92036-005

$4.07

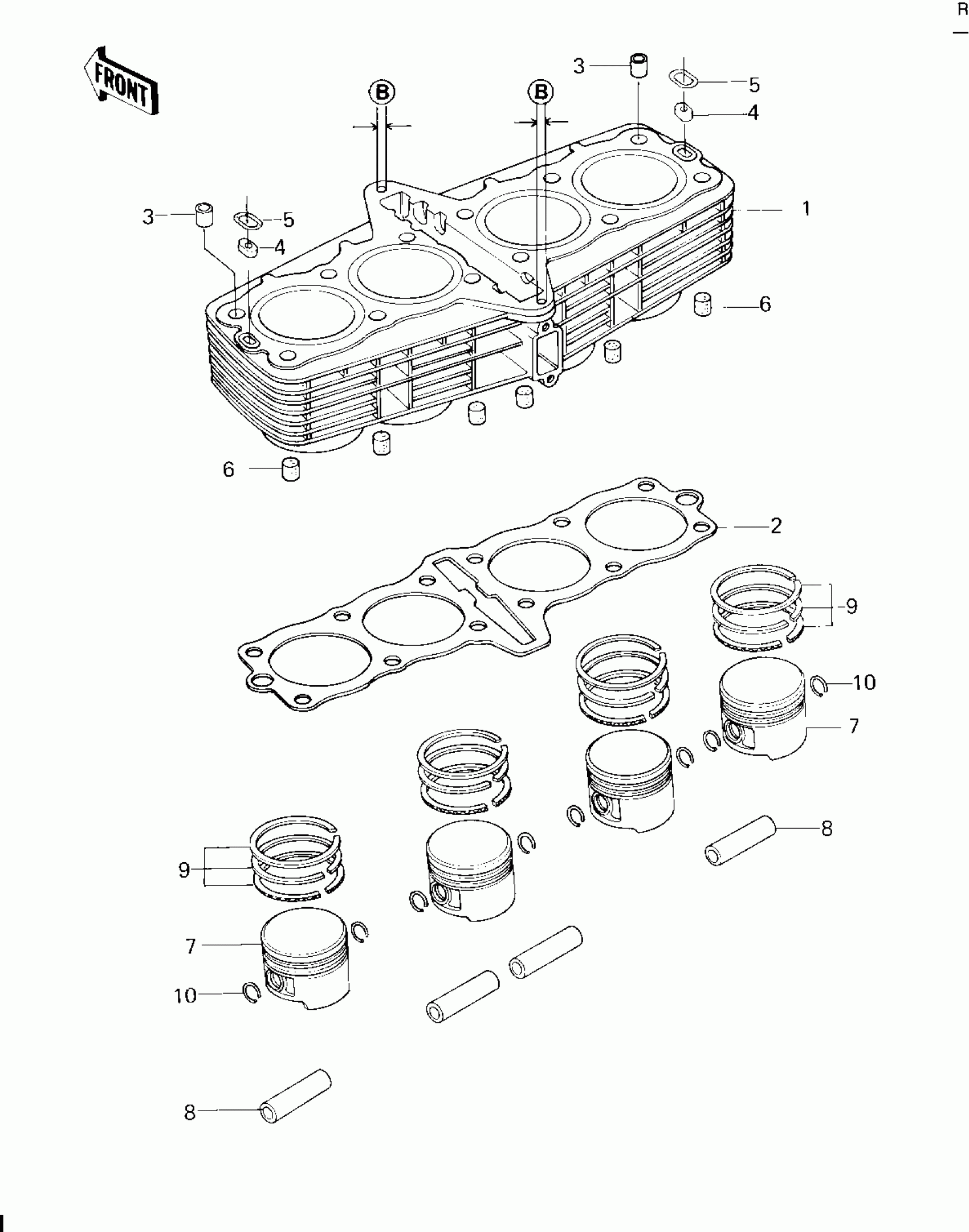

Kawasaki KZ650-F1 CYLINDER/PISTONS Diagram

CYLINDER

CYLINDER

GASKET

PIN,11X14X12.3

PIN,OIL LINE

RING-O,CYLINDER OIL LINE PIN

PLUG,DAMPER

PISTON,STD

PISTON,0.020",O.S.

PISTON,0.040",O.S.

PIN-PISTON

RING SET,PISTON,STD

RING SET,0.020",O.S.

RING SET,0.040",O.S.

RING-SNAP
