Description

Price

1

VALVE-ASSY-REED

12021-1003

$75.73

2

GASKET,CYL HEAD COVER

11009-1065

Unavailable

2

GASKET,CYLINDER HEAD

11009-1237

Unavailable

3

COVER,CYLINDER HEAD

14025-1058

Unavailable

3

COVER,CYLINDER HEAD

14025-1209

Unavailable

4

CAP ASSY,R.H,REED VLV

14075-5001

$26.78

5

CAP ASSY,L.H,REED VLV

14075-5002

$27.93

6

BOLT,HEX HEAD,6X65

92001-1102

Unavailable

7

BOLT,FLANGED,6X22

92001-1352

$4.31

8

BOLT,FLANGED,6X45

92001-165

$5.24

9

BOLT-SOCKET,6X14

120P0614

$3.82

10

HOLDER,TACHOMETER2.3T

13091-1008

$4.26

11

HOLDER,TACHOMETR,3.2T

13091-1009

$4.26

12

GEAR,TACHOMETER,10T

13223-011

Unavailable

13

SEAL-OIL

92050-075

$11.39

14

RING-O,10MM

92055-1149

$6.57

15

GASKET,TACHOMETER GEAR

92065-103

$4.07

16

GUIDE,TACHOMETER GEAR

92087-010

$24.19

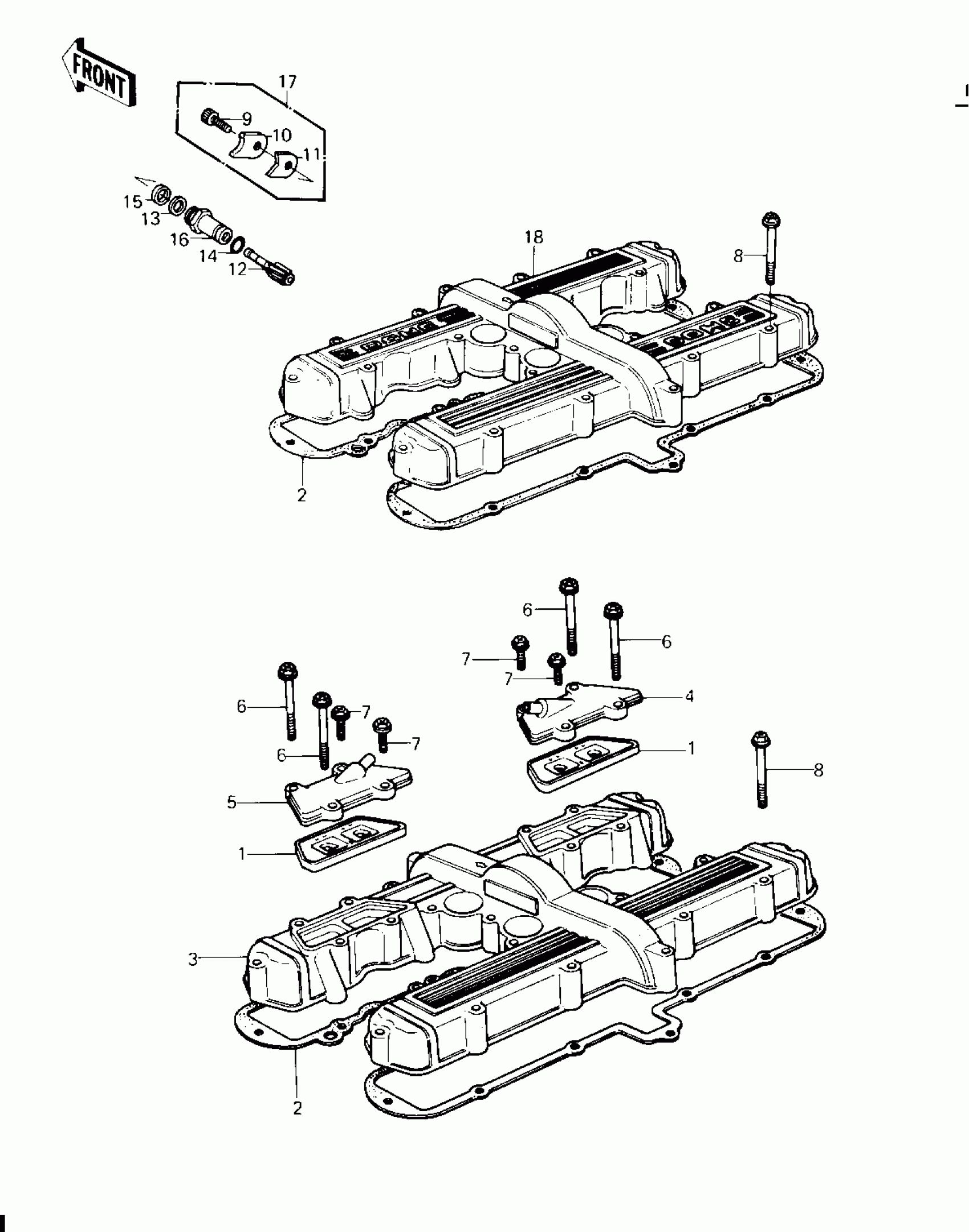

Kawasaki KZ650-F1 CYLINDER HEAD COVER Diagram

VALVE-ASSY-REED

GASKET,CYL HEAD COVER

GASKET,CYLINDER HEAD

COVER,CYLINDER HEAD

COVER,CYLINDER HEAD

CAP ASSY,R.H,REED VLV

CAP ASSY,L.H,REED VLV

BOLT,HEX HEAD,6X65

BOLT,FLANGED,6X22

BOLT,FLANGED,6X45

BOLT-SOCKET,6X14

HOLDER,TACHOMETER2.3T

HOLDER,TACHOMETR,3.2T

GEAR,TACHOMETER,10T

SEAL-OIL

RING-O,10MM

GASKET,TACHOMETER GEAR

GUIDE,TACHOMETER GEAR
