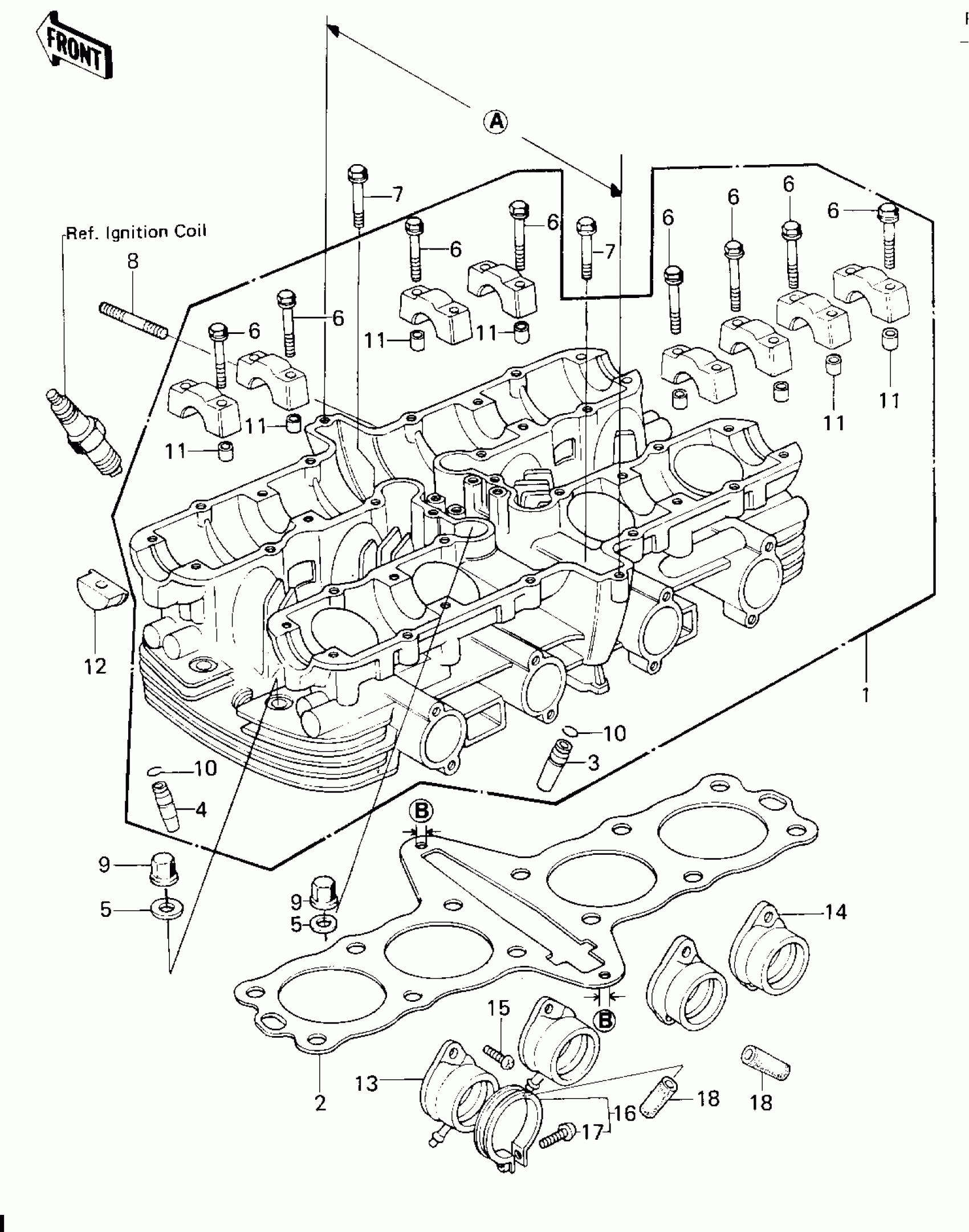

Kawasaki KZ650-F1 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11002-1014

Unavailable

1

HEAD-ASSY-CYLINDER,BA

11002-1075

Unavailable

2

GASKET-HEAD,CYLINDER

11004-1107

Unavailable

2

GASKET-HEAD,CYLINDER

11004-1107

Unavailable

3

GUIDE-VALVE,INTAKE

12013-009

$27.29

4

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

4

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

5

WASHER-PLAIN,10MM

411B1000

$0.93

6

BOLT,FLANGED,6X38

92001-1105

$4.69

7

BOLT,6X43

92002-1881

$7.24

7

BOLT,FLANGED,8X43

92001-1445

Unavailable

7

BOLT,FLANGED,8X43

92001-1445

Unavailable

8

STUD,6X27

92004-066

$5.17

9

NUT,FLANGED CAP,10MM

92015-076

$13.08

10

RING-SNAP,VALVE GUIDE

92036-023

$0.48

11

PIN,DOWEL,6.3X8X14

92042-007

$5.70

12

PLUG,CAMSHAFT,11.35X13.5

92066-1111

$12.21

13

HOLDER,CARB,L.H.

16065-046

Unavailable

14

HOLDER,CARB,R.H

16065-047

$80.90

15

SCREW PAN HEAD 6X18

220B0618

$3.67

16

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

17

SCREW-PAN-CROS,5X25

220B0525

$3.67

18

PLUG,12X25

92068-006

$4.26
