Description

Price

1

CRANKCASE SET

14001-5046

Unavailable

2

PLATE-POSITION,SECONDARY SHAFT

14014-1007

$12.05

3

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

4

SCREW-CSK-CROS,6X20

221B0620

$2.40

5

RING-POSITION

14013-004

$10.19

6

STUD,10X153

92004-062

$18.74

7

STUD,10X133

92004-1004

$15.96

8

STUD,10X116

92004-1007

Unavailable

9

PIN,DOWEL,6X16

92042-016

$5.00

10

RING-O,8.8X1.9

92055-099

$4.69

11

O RING,10MM

670D2010

$1.94

12

NOZZLE

92062-016

$6.16

13

PLUG,RUBBER BALL,6.7

92066-057

$5.18

14

O RING, MAIN GALLERY

92055-097

$8.58

15

NOZZLE,BLACK

92062-011

$8.58

16

NOZZLE

92062-014

$9.89

17

NOZZLE,SILVER

92062-015

$3.70

18

PLUG,18X9

92066-066

$10.97

19

O RING,46MM

670B3046

$5.96

20

PLUG,SECONDARY SHAFT,52X19

92066-1019

$19.85

21

SWITCH ASY,OIL PRSSUR

16144-006

Unavailable

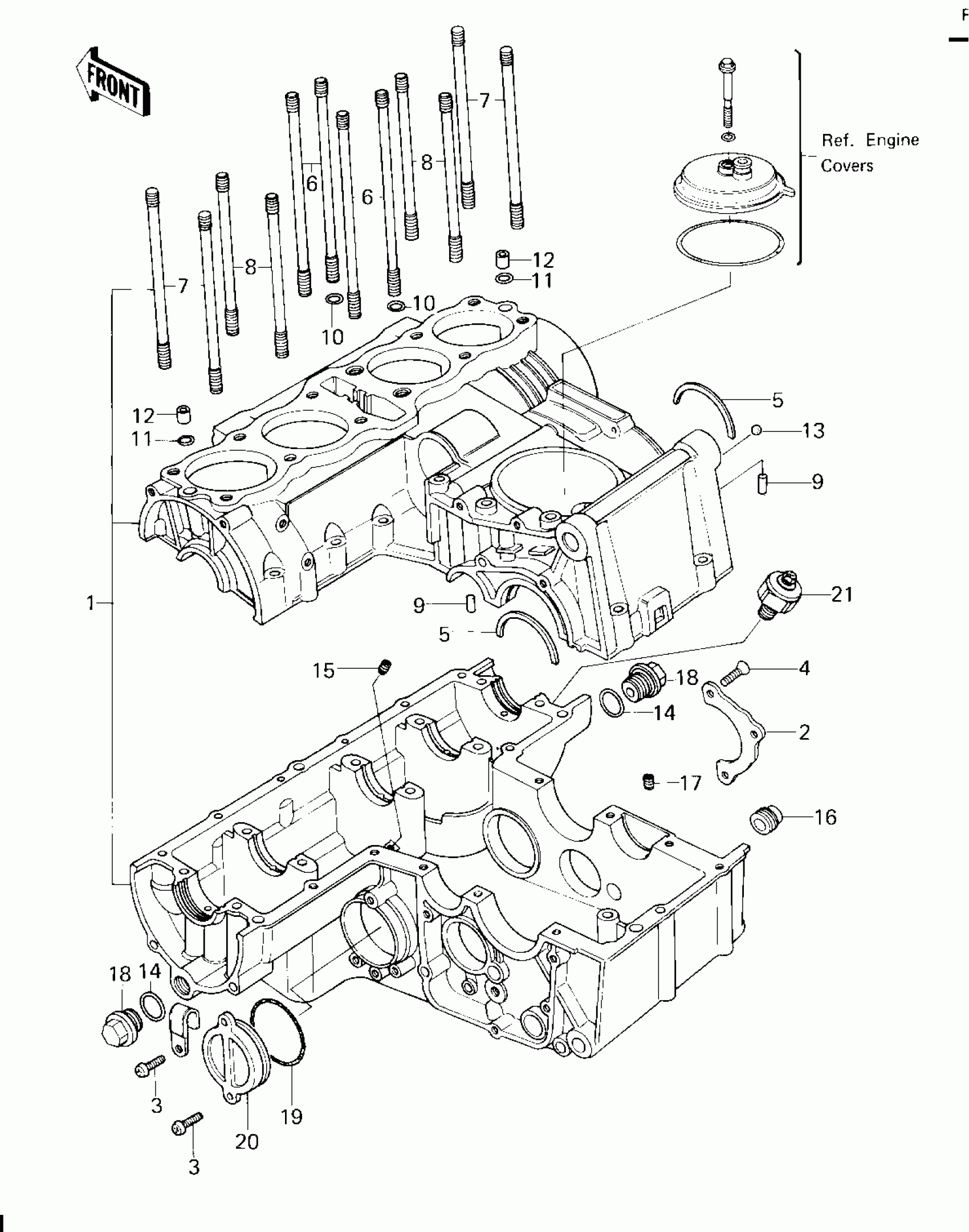

Kawasaki KZ650-F1 CRANKCASE Diagram

CRANKCASE SET

PLATE-POSITION,SECONDARY SHAFT

SCREW-PAN-CROS,6X20,WHITE

SCREW-CSK-CROS,6X20

RING-POSITION

STUD,10X153

STUD,10X133

STUD,10X116

PIN,DOWEL,6X16

RING-O,8.8X1.9

O RING,10MM

NOZZLE

PLUG,RUBBER BALL,6.7

O RING, MAIN GALLERY

NOZZLE,BLACK

NOZZLE

NOZZLE,SILVER

PLUG,18X9

O RING,46MM

PLUG,SECONDARY SHAFT,52X19

SWITCH ASY,OIL PRSSUR
