Description

Price

1

BOLT-UPSET,6X20

112G0620

$2.12

2

HOOK, BRAKE SWITCH

27012-1003

Unavailable

3

NUT 6MM

311B0600

$0.93

4

PEDAL BRAKE

43001-1009

$200.73

5

SHAFT,BRAKE PEDAL

43004-012

$89.86

6

SPRING,BRAKE PEDAL

43005-022

Unavailable

7

PIN COTTER 1.6X10

550D1610

Unavailable

8

NUT,CAP AND LOCK,8MM

92019-013

$14.88

9

WASHER,8.5X20X1.6

92022-1561

$4.31

10

NUT-HEX-FINE,10MM

314B1000

$0.67

11

NUT-HEX-FINE,10MM

315B1000

$0.58

12

TORQUE LINK-REAR BRK

43007-027

$27.18

13

WASHER SPRING 10MM

461F1000

$0.67

14

PIN-SNAP,8MM

554A0800

$1.26

15

BOLT,10X35

92003-034

$13.21

16

BOLT,10X29

92003-096

$10.72

17

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

18

ROD-BRAKE

43011-009

$23.31

19

SPRING,BRAKE ROD

43012-001

$4.65

20

PIN COTTER 2.0X15

550D2015

$1.04

21

NUT,BRAKE ROD

92015-042

$6.22

22

PIN,6X17

92043-064

$4.69

23

PIN,BRAKE ROD

92043-065

$5.57

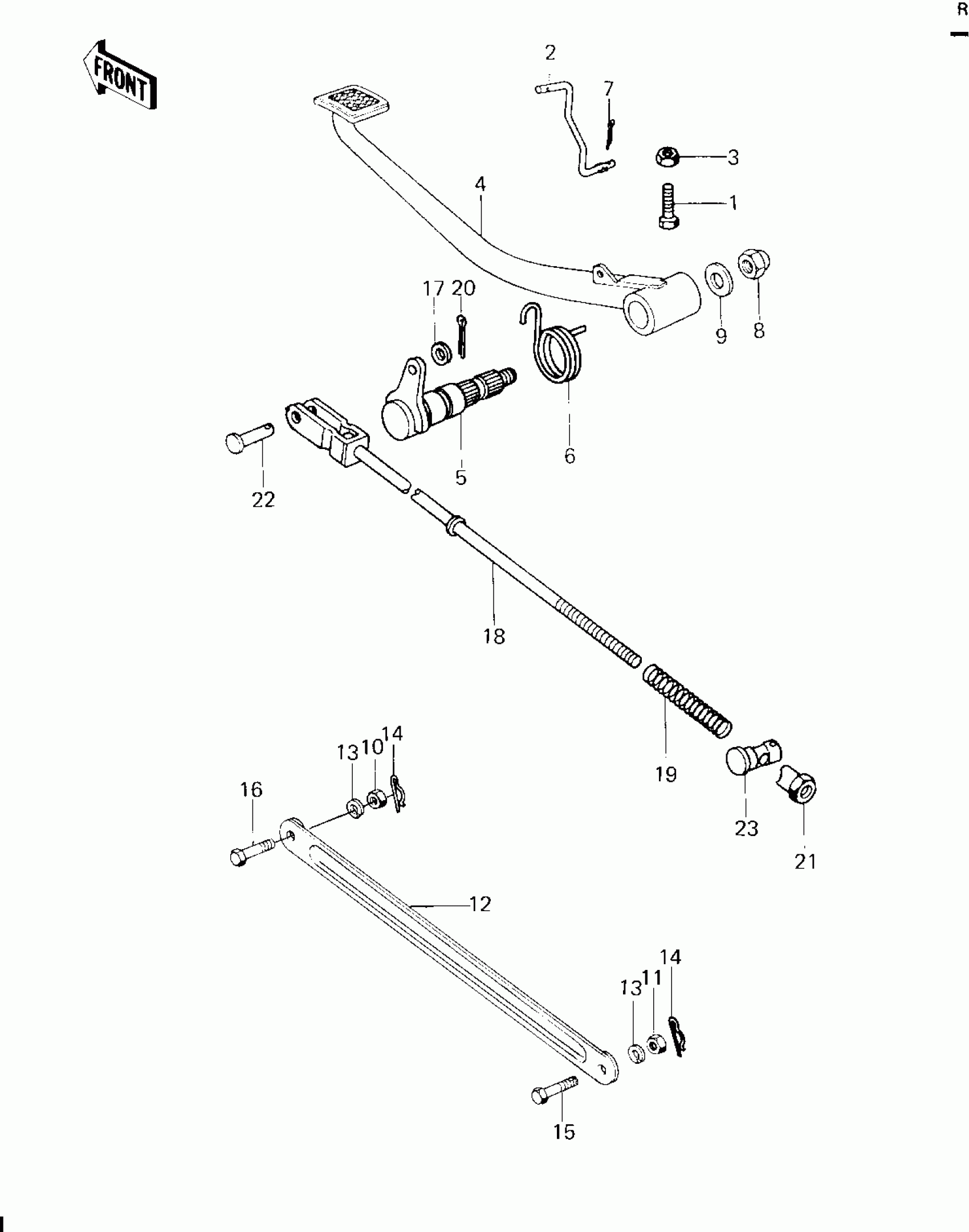

Kawasaki KZ650-F1 BRAKE PEDAL/TORQUE LINK Diagram

BOLT-UPSET,6X20

HOOK, BRAKE SWITCH

NUT 6MM

PEDAL BRAKE

SHAFT,BRAKE PEDAL

SPRING,BRAKE PEDAL

PIN COTTER 1.6X10

NUT,CAP AND LOCK,8MM

WASHER,8.5X20X1.6

NUT-HEX-FINE,10MM

NUT-HEX-FINE,10MM

TORQUE LINK-REAR BRK

WASHER SPRING 10MM

PIN-SNAP,8MM

BOLT,10X35

BOLT,10X29

WASHER-PLAIN-SMALL,6MM

ROD-BRAKE

SPRING,BRAKE ROD

PIN COTTER 2.0X15

NUT,BRAKE ROD

PIN,6X17

PIN,BRAKE ROD
