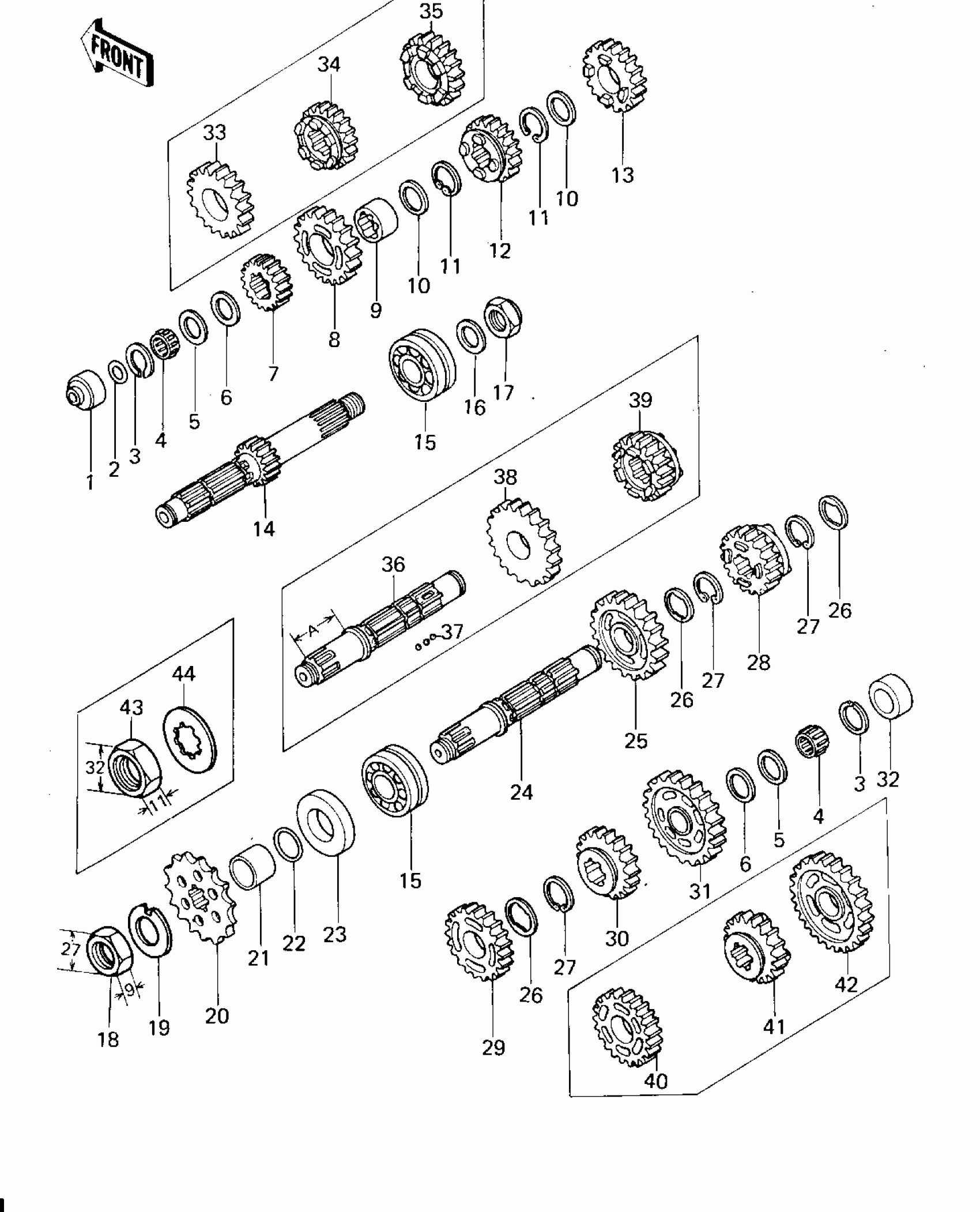

Kawasaki KZ650-B3 TRANSMISSION Diagram
#
1
BUSHING,DRIVE SHAFT
92028-179
Unavailable
2
O RING,7MM
670B1507
$1.28
3
RING-SNAP,20MM
92033-015
$4.26
4
BEARING-NEEDLE,VS20/14A
92046-1030
$25.43
5
WASHER,20.5X30X1,STEEL
92022-112
Unavailable
5
WASHER,20.5X30X0.5,STEEL
92022-144
Unavailable
5
WASHER,20.3X30X0.7,STEEL
92022-1026
Unavailable
6
WASHER THRUST
92022-113
Unavailable
7
GEAR,INPUT 2ND,19T
13130-041
Unavailable
8
TOP GEAR,DRIVE
13136-060
Unavailable
9
BUSHING,INPUT TOP GEAR
92028-1007
$29.67
9
BUSHING,INPUT TOP GEAR
92028-1007
$29.67
10
WASHER,25.3X30X1
92022-161
$10.65
11
RING-SNAP,24MM
92033-026
$8.79
12
3RD GEAR,DRIVE
13132-044
Unavailable
13
4TH GEAR,DRIVE
13134-029
Unavailable
14
SHAFT,DRIVE
13127-051
Unavailable
15
BEARING-BALL,83993SH2-CS
92045-035
$73.57
16
WASHER
92125-002
Unavailable
17
NUT,20MM
92015-1555
$13.08
18
NUT,20MM
92016-028
$9.91
19
WASHER,LOCK,20MM
92024-044
$13.52
20
ENGINE SPROCKET,16T
13144-063
$87.88
20
SPROCKET-OUTPUT,17T(#530)
13144-1009
Unavailable
21
COLLAR,ENG SPROCKET
92027-288
$39.34
22
RING-O
92055-035
$5.00
23
SEAL-OIL,SC325210
92050-024
$8.17
24
SHAFT,OUTPUT
13128-044
Unavailable
25
2ND GEAR,OUTPUT
13131-052
Unavailable
26
WASHER,TOOTHED,30.5X38X1
92024-069
$6.15
27
CIRCLIP-TYPE-C,30MM
480J3000
$6.22
28
TOP GEAR,OUTPUT
13137-039
Unavailable
29
3RD GEAR, OUTPUT SHAFT, 28T
13133-041
Unavailable
30
4TH GEAR,OUTPUT
13135-030
Unavailable
31
LOW GEAR,OUTPUT
13129-056
Unavailable
32
BUSHING,26X34X16.6
92028-180
$28.82
33
TOP GEAR,DRIVE SHAFT
13129-1045
Unavailable
34
3RD GEAR,DRIVE SHAFT
13129-1032
Unavailable
35
4TH GEAR,DRIVE SHAFT
13129-1044
Unavailable
36
SHAFT,OUTPUT
13128-5005
Unavailable
36
SHAFT,OUTPUT
13128-1012
Unavailable
37
BALL-STEEL,5/32
600A0500
$0.81
38
GEAR,OUTPUT 2ND,31T
13129-1047
Unavailable
39
TOP GEAR,OUTPUT SHAFT
13129-1033
Unavailable
40
GEAR,OUTPUT 3RD,28T
13129-1048
Unavailable
41
GEAR,OUTPUT 4TH,26T
13129-1049
Unavailable
42
GEAR,OUTPUT LOW,35T
13129-1046
Unavailable
43
NUT,20MM
92015-1254
$14.90
44
WASHER
92200-1065
$6.63
