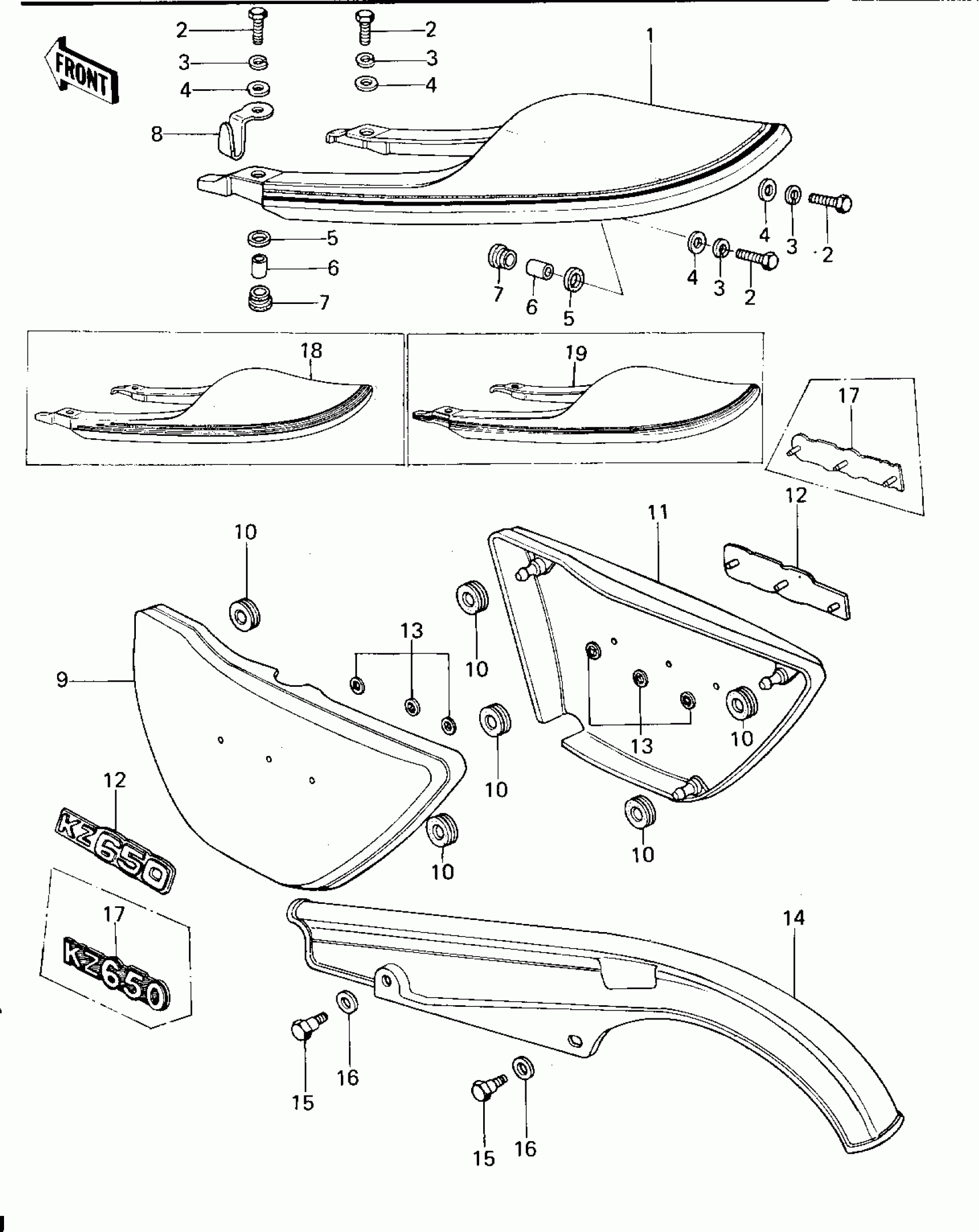

Kawasaki KZ650-B3 SIDE COVERS/CHAIN COVER/SEAT COVER Diagram
#
1
COVER,REAR,SEAT,C.S.R
53043-016-3R
$182.55
1
COVER,REAR SEAT,C.E.G
53043-016-4U
$178.03
2
BOLT-UPSET
112G0625
$3.62
3
WASHER SPRING 6MM
461F0600
$0.69
4
WASHER,7X24X1.6
92022-228
$3.92
5
DAMPER,FEMALE
92075-175
$4.39
6
COLLAR
92027-241
$6.57
7
RUBBER,FENDER COVER
92075-174
$4.78
8
BRACKET,HELMET HOLDER
32122-057
Unavailable
9
COVER,SIDE,L.H,S.RED
36001-1034-3R
$119.74
9
COVER,SIDE,L.H,E.GREN
36001-1034-4U
$103.14
9
COVER,SIDE,L.H,D.BLUE
36001-5012-7Z
$84.56
9
COVER,SIDE,L.H,B.RED
36001-1034-A1
$103.14
9
COVER,LH SIDE,EBONY
36001-057-8G
Unavailable
9
COVER-SIDE LH,RED $$
36001-1034-A5
$107.41
9
COVER,SIDE,L.H,E.GREN
36001-1034-4U
$103.14
9
SIDE COVER,EBONY
36001-1034-8G
$100.07
10
GROMMET
92071-056
$4.26
11
COVER,SIDE,R.H,S.RED
36001-1035-3R
$108.76
11
COVER,SIDE,R.H,E.GREN
36001-1035-4U
Unavailable
11
COVER,SIDE,R.H,D.BLUE
36001-5013-7Z
Unavailable
11
COVER,SIDE,R.H,B.RED
36001-1035-A1
$108.76
11
COVER,RH SIDE,EBONY
36007-054-8G
Unavailable
11
COVER-SIDE RH,RED $$
36001-1035-A5
$98.56
11
COVER,SIDE,R.H,E.GREN
36001-1035-4U
Unavailable
11
SIDE COVER,EBONY
36001-1035-8G
$114.36
12
EMBLEM,SIDE COVER
56018-256
Unavailable
13
NUT,PUSH,3MM
92018-005
$2.76
14
CASE-CHAIN
36014-068
Unavailable
15
BOLT,HEAX HEAD,6X14
92001-115
$9.81
16
WASHER,8.5X20X1.6
92022-1561
$4.31
17
MARK,SIDE COVER
56018-1063
Unavailable
18
COVER,REAR SEAT,D.BLU
53043-016-7Z
$161.81
18
COVER,REAR SEAT,B.RED
53043-016-A1
$212.49
18
COVER,REAR FNDR,EBONY
53043-016-8G
$223.81
19
COVER,SEAT,C.P.RED
53043-016-A5
$123.99
19
COVER,SEAT,C.E.GREEN
14025-5009-4U
Unavailable
19
REAR FENDER COVER,EBY
53043-5503-8G
$116.28
