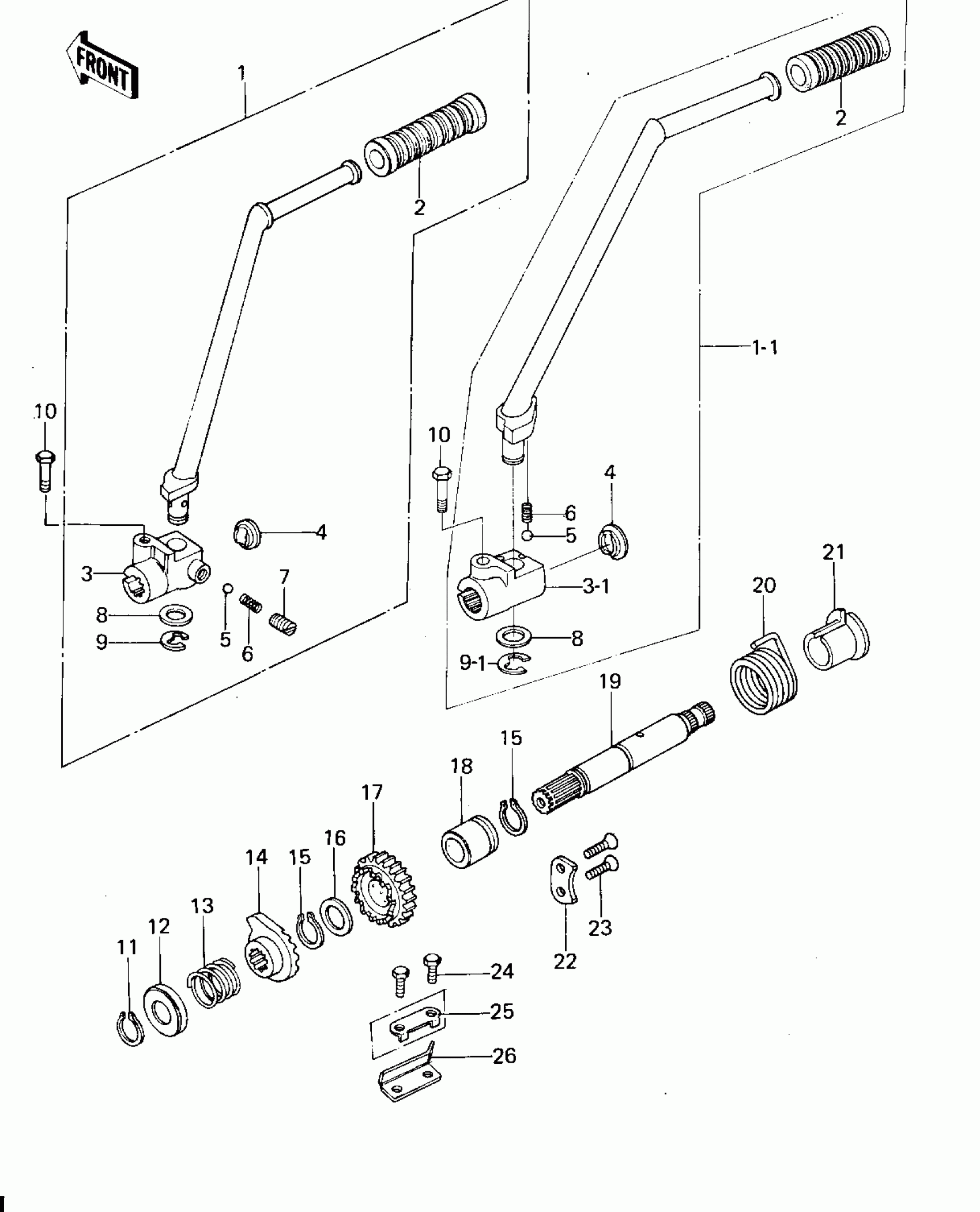

Kawasaki KZ650-B3 KICKSTARTER MECHANISM Diagram
#
Description
Price
1
PEDAL ASSY,KICK
13064-1005
Unavailable
1-1
PEDAL ASSY,KICK
13064-1005
Unavailable
2
DAMPER,KICK PEDAL
13063-004
$10.94
3
BOSS,KICK PEDAL
13061-1002
Unavailable
3-1
BOSS,KICK
13061-1008
Unavailable
4
PLUG,A,KICKSTARTER
92066-058
$3.62
5
BALL-STEEL,1/4
600A0800
$0.62
6
SPRING
92081-154
Unavailable
7
PLUG,B,KICKSTARTER
92066-061
Unavailable
8
WASHER,15.2X20X1
92022-1019
$5.23
9
CIRCLIP-TYPE-E,10MM
482J0100
$0.73
9-1
CIRCLIP-TYPE-E,10MM
482J0100
$0.73
10
BOLT-SMALL-UPSET
115B0832
Unavailable
11
CIRCLIP-TYPE-C,19MM
480J1900
$1.28
12
CAP,KICKSTARTER
92102-008
Unavailable
13
SPRING RATCHET
92081-104
$10.23
14
RATCHET,KICK SHAFT
13078-011
Unavailable
15
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
16
WASHER,20.5X30X1,STEEL
92022-112
$8.86
17
GEAR,KICKSTARTER,20T
13068-035
Unavailable
18
BUSHING,KICK SHAFT
92028-175
$17.51
19
SHAFT,KICKSTARTER
13066-045
Unavailable
20
SPRING,KICK RETURN
92082-006
Unavailable
21
GUIDE,KICK SPRING
13070-009
Unavailable
22
PLATE-DRUM LEV POSTON
13169-007
Unavailable
23
SCREW-CSK-CROS,6X12
221B0612
$2.06
24
BOLT-UPSET
112G0614
$1.96
25
WASHER,LOCK,6MM
92024-075
Unavailable
26
STOPPER,KICKSTARTER
13072-018
Unavailable
