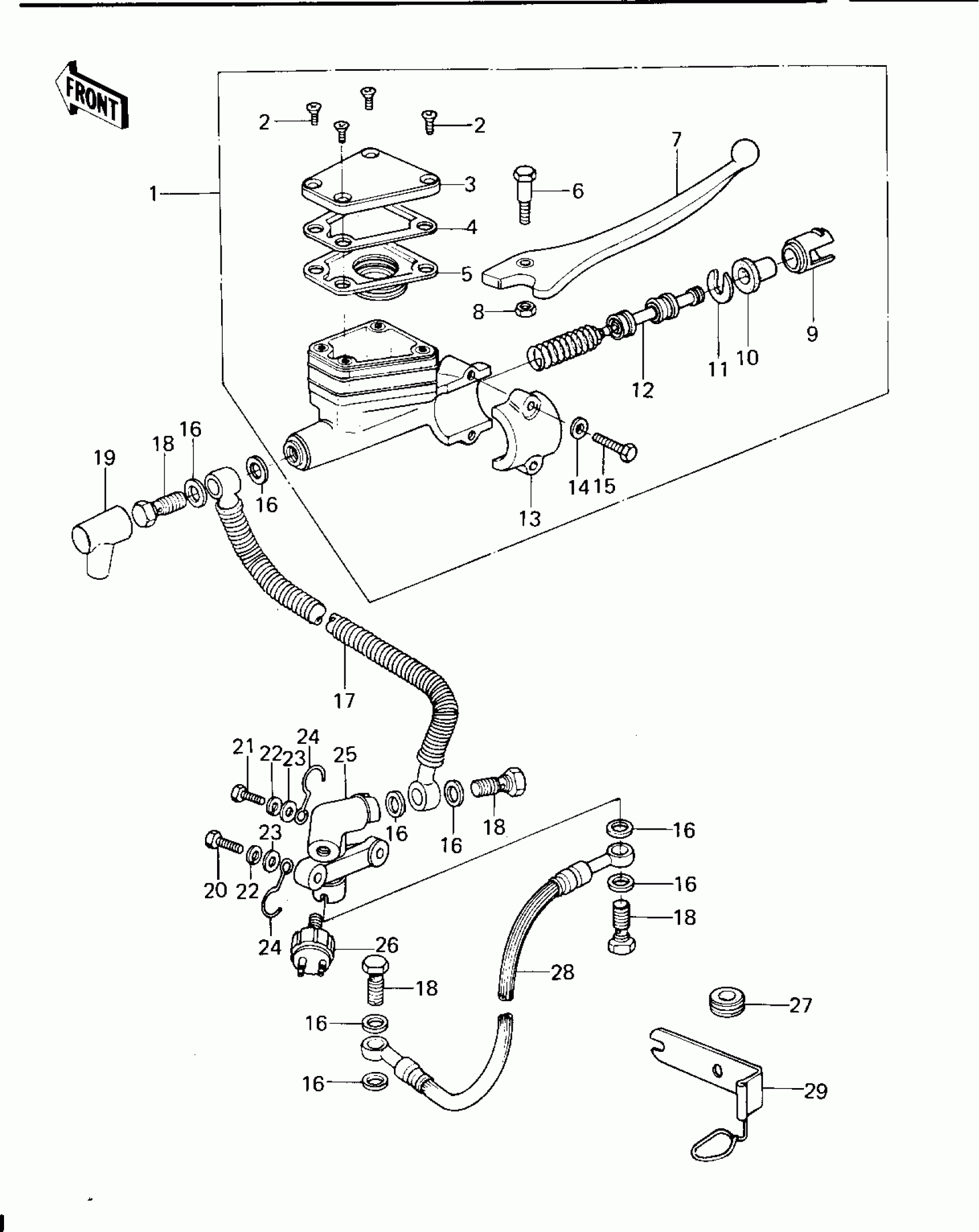

Kawasaki KZ650-B3 FRONT MASTER CYLINDER (KZ650-B2/B2A/B3) Diagram
#
Description
Price
1
CYLINDER ASSY,MASTER
43015-1007
Unavailable
2
SCREW-CSK-CROS,5X12,BLACK
92001-1055
$5.84
3
CAP,OIL CUP
43026-1003
Unavailable
4
PLATE,DIAPHRAGM
43027-1002
Unavailable
5
DIAPHRAGM
43028-1002
Unavailable
6
BOLT,FR BRAKE LEVER
92001-1056
Unavailable
7
LEVER,FRONT BRAKE
46092-1002
Unavailable
8
NUT 6MM
312B0600
$0.72
9
LINER,PISTON
14008-1007
Unavailable
10
COVER-SEAL,BRAKE PISTON
49016-1010
Unavailable
11
STOPPER-BRAKE,PISTON
43022-1001
Unavailable
12
PISTON-COMP-BRAKE
43020-1026
$95.03
13
HOLDER-BRAKE,MASTER CYLINDER
43034-1001
Unavailable
14
WASHER PLAIN 6MM
411B0600
$2.84
15
BOLT HEX HEAD 6X25
110N0625
$5.46
16
WASHER,10.5X15X1.5
43067-001
$2.15
17
HOSE,M/C BRAKE
43059-032
Unavailable
18
BOLT,OIL,L=23
92002-1888
$5.48
19
BOOT,DUST
49006-1041
$11.49
20
BOLT-HEX HEAD,6X32
110N0632
Unavailable
21
BOLT,6X22
110N0622
$3.23
22
WASHER SPRING 6MM
461F0600
$0.69
23
WASHER PLAIN 6MM
411B0600
$2.84
24
CLAMP,CABLE
92037-092
$9.31
25
JOINT,THREE WAY
43061-002
Unavailable
26
SWITCH-FRONT BRAKE
43065-001
Unavailable
27
GROMMET,HOSE CLAMP
43064-006
$4.31
28
HOSE,CALIPER BRAKE
43059-033
Unavailable
29
BRACKET
11034-1041
Unavailable
