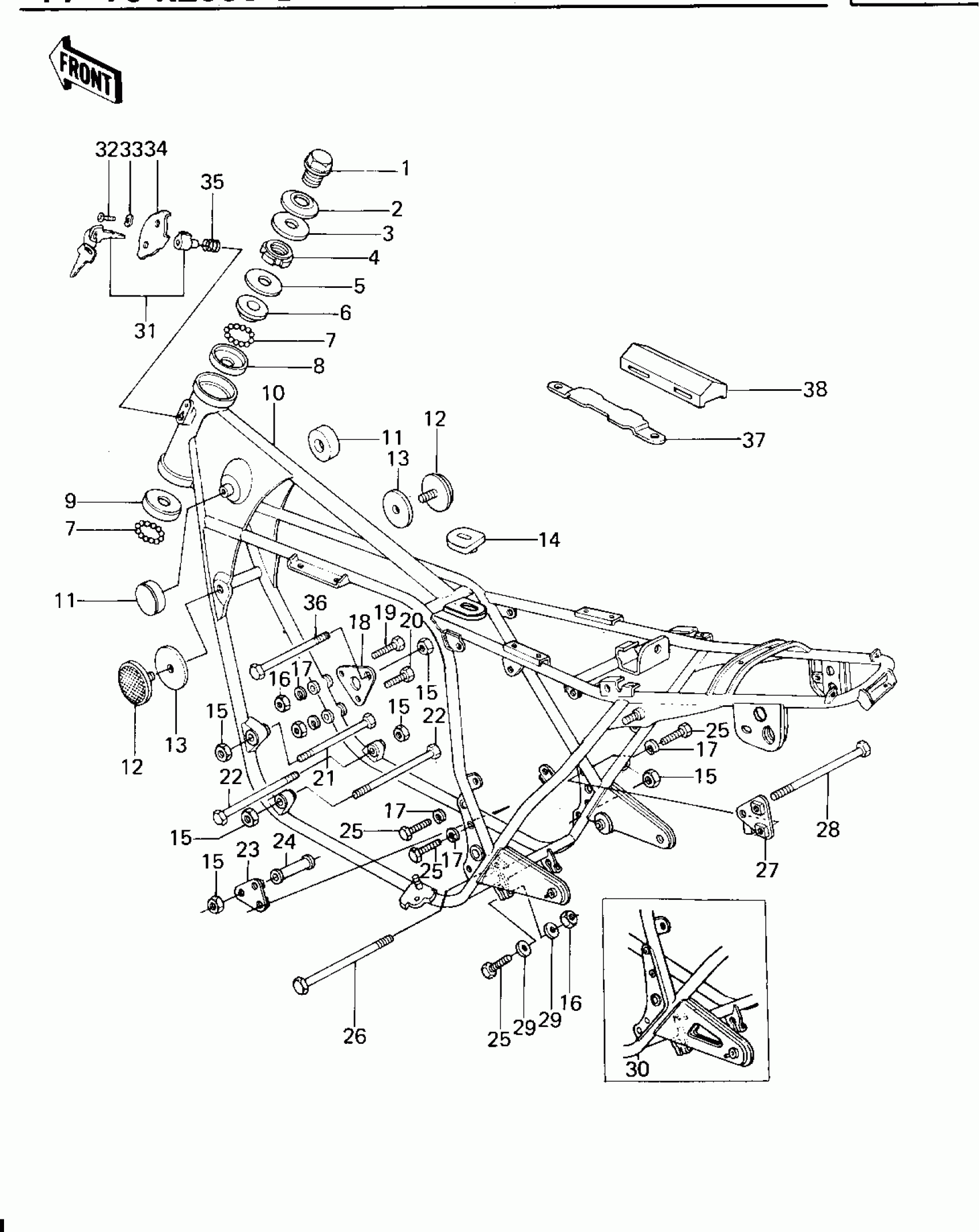

Kawasaki KZ650-B3 FRAME/FRAME FITTINGS Diagram
#
Description
Price
1
BOLT,16X25.5
92007-031
Unavailable
2
WASHER,16X41X4
92022-230
$11.93
3
WASHER,WAVE
46100-003
$11.39
4
NUT,30MM
92090-007
$11.71
5
CAP,STEERING STEM
46098-016
$6.51
6
RACE,STEERING STEM BEARING
92047-011
$14.60
7
BALL-STEEL,1/4
600A0800
$0.62
8
RACE,STEERING STEM BEARING
92048-006
$11.61
9
RACE,STEERING STEM BEARING
92048-008
$16.02
10
FRAME
32002-155
$1,023.68
11
DAMPER,FUEL TANK
92075-101
$6.22
12
REFLECTOR-REFLEX,FR
28012-016
$23.25
13
DAMPER,REFLECTOR
92094-011
$4.60
14
DAMPER,FUEL TANK
92075-295
$9.17
15
NUT,LOCK,10MM
92019-021
$6.11
16
NUT,8MM
311B0800
$0.67
17
WASHER SPRING 8MM
461F0800
$0.40
18
PLATE,FRONT ENG.MOUNT
32030-063
Unavailable
19
BOLT,8X63
92001-1397
$5.43
20
BOLT,HEX HEAD,8X59
110G0859
Unavailable
21
BOLT,HEX HEAD,10X72
92001-1049
Unavailable
22
BOLT,HEX HEAD,10X84
92001-1048
Unavailable
23
PLATE,RR ENG MONT,L.
32030-064
Unavailable
24
COLLAR,L=54
92027-275
$17.63
25
BOLT
92001-1578
$8.19
26
BOLT,HEX HEAD,10X219
92091-032
Unavailable
27
PLATE,RR ENG MONT,R.H
32030-065
Unavailable
28
BOLT,ENGINE MOUNTING
92091-023
Unavailable
29
WASHER PLAIN 8MM
410B0800
$0.93
30
FRAME
32002-1049
$1,020.61
31
LOCK-ASSY,STEERING
27016-5009
Unavailable
31
LOCK-ASSY,STEERING
27016-5009
Unavailable
32
SCREW,3.51MM
92008-007
$4.11
33
WASHER,WAVE
92097-003
$4.50
34
CAP,STEERING LOCK
11012-1134
$6.87
35
SPRING,STEERING LOCK
27032-001
$5.25
36
BOLT,HEX HEAD,10X46
92001-1050
Unavailable
37
BRACKET,IGNITION COIL
11034-1125
Unavailable
38
DAMPER,IGNITION COIL
92075-1033
Unavailable
