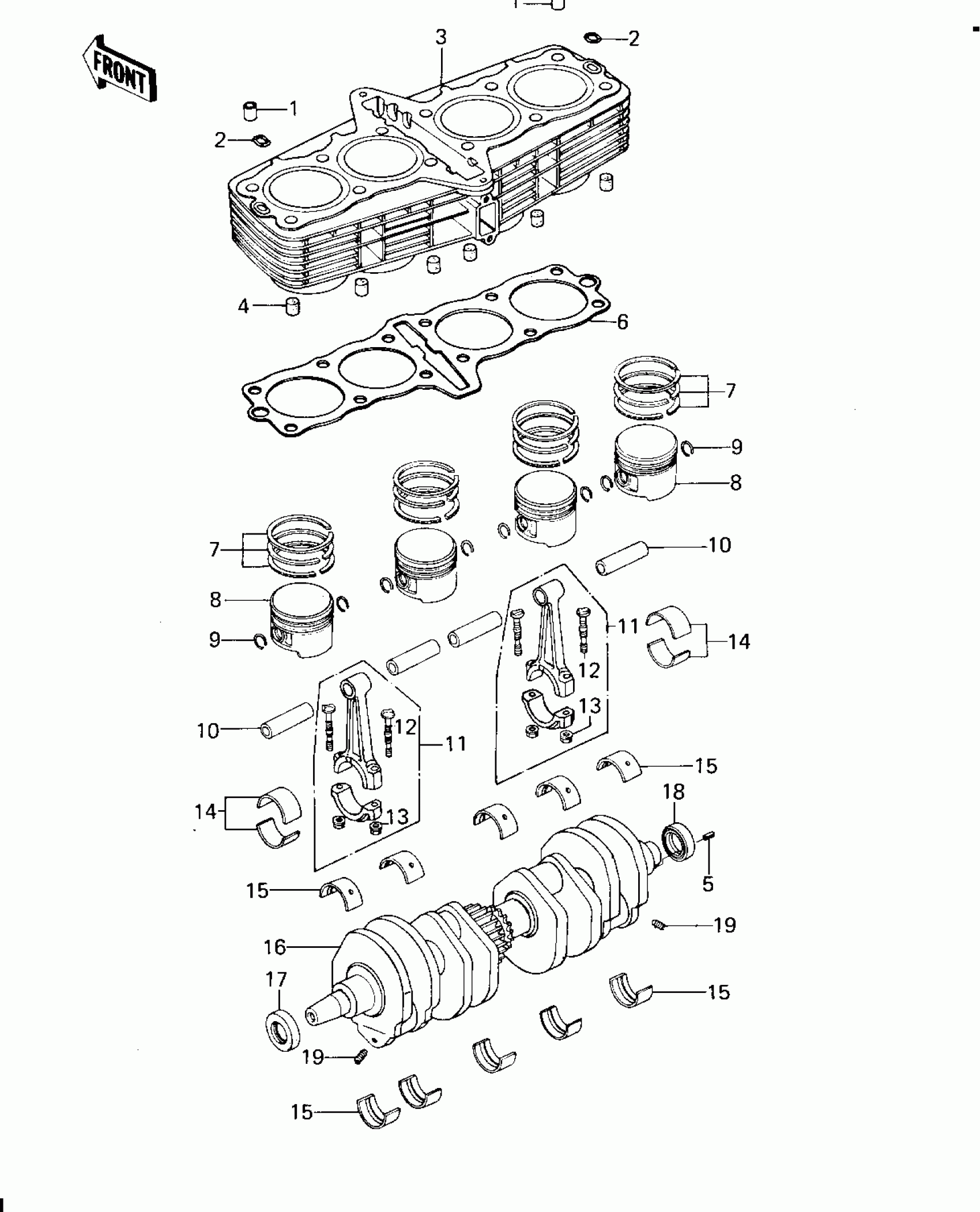

Kawasaki KZ650-B3 CYLINDER/PISTONS/CRANKSHAFT Diagram
#
Description
Price
1
PIN,11X14X12.3
92043-1266
$1.08
2
RING-O,CYLINDER OIL LINE PIN
92055-1147
$9.89
3
CYLINDER
11005-1039
Unavailable
3
CYLINDER
11005-1039
Unavailable
4
DAMPER,13X13.8
92075-075
$5.23
4
PLUG,DAMPER
92066-1016
Unavailable
5
PIN-SPRING,4X8
555A0408
$3.92
6
GASKET
11060-1362
Unavailable
7
RING SET,PISTON,STD
13008-059
$141.16
7
RING SET,PISTON,STD
13008-059
$141.16
7
RING SET,0.020",O.S.
13025-061
Unavailable
7
RING SET,0.020",O.S.
13025-061
Unavailable
7
RING SET,0.040",O.S.
13024-060
Unavailable
7
RING SET,0.040",O.S.
13024-060
Unavailable
8
PISTON,STD
13001-1002
Unavailable
8
PISTON,STD
13001-1002
Unavailable
8
PISTON,0.020",O.S.
13029-077
Unavailable
8
PISTON,0.040",O.S.
13027-069
Unavailable
9
RING-SNAP
92036-005
$4.07
10
PIN-PISTON
13002-032
Unavailable
11
CONNECTING ROD ASSY,J
13251-1007-JJ
Unavailable
11
CONNECTING ROD ASSY
13251-1003-HH
Unavailable
11
CONNECTING ROD ASSY,J
13251-1007-JJ
Unavailable
11
CONNECTING ROD ASSY,J
13251-1007-JJ
Unavailable
11
CONNECTING ROD ASSY,J
13251-1007-JJ
Unavailable
11
CONNECTING ROD ASSY,J
13251-1007-JJ
Unavailable
12
BOLT,CONNECTING ROD
92001-175
$2.35
12
BOLT,CONNECTING ROD,7MM
92001-1793
$8.58
13
NUT,7MM
92016-060
$5.52
14
METAL,CONNECT ROD BRG
13034-050
Unavailable
14
METAL,CONNECT ROD BRG
13034-051
$34.53
14
METAL,CONNECT ROD BRG
13034-052
$32.14
15
BUSHING,CRANKSHAFT,BROWN
92028-1102
$16.90
16
CRANKSHAFT ASSY
13037-069
Unavailable
17
OIL SEAL,HSCY22397
92050-080
$16.77
18
SEAL-OIL,HSCY25397
92050-081
$13.07
19
SCREW,SLOTTED,6X8
291H0608
$2.53
