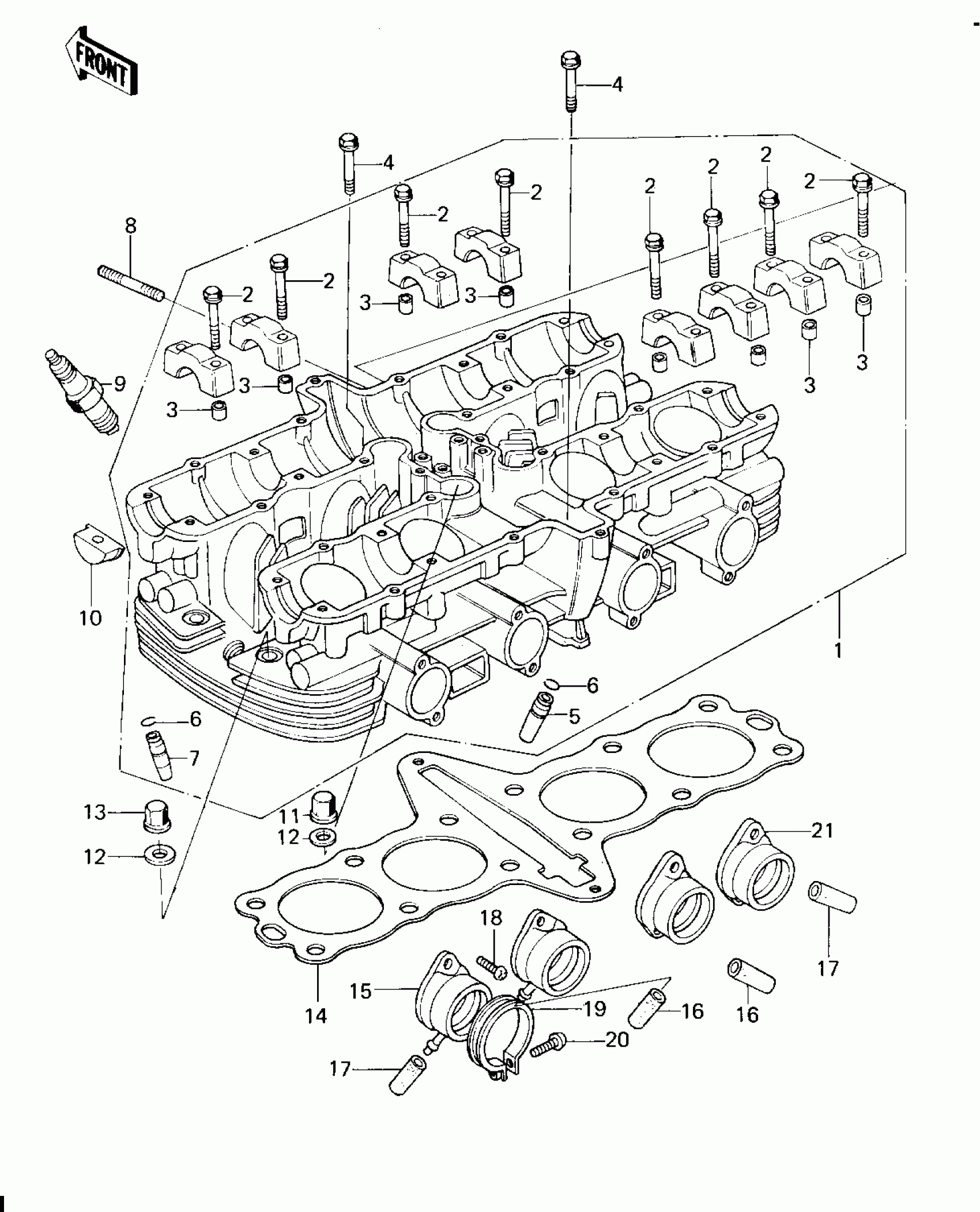

Kawasaki KZ650-B3 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD,BARREL

11002-028-2H

Unavailable

1

HEAD ASSY,CYLINDER

11002-1014

Unavailable

2

BOLT,HEX HEAD,6X38

92003-206

$8.93

3

PIN,DOWEL,6.3X8X14

92042-007

$5.70

4

BOLT,6X43

92002-1881

$7.24

5

GUIDE-VALVE,INTAKE

12013-009

$27.29

6

RING-SNAP,VALVE GUIDE

92036-023

$0.48

7

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

8

STUD,6X27

92004-066

$5.17

9

SPARK PLUG B7ES

B7ES

Unavailable

10

PLUG,CAMSHAFT,11.35X13.5

92066-1111

$12.21

11

NUT,FLANGED,10MM

92015-1415

$4.69

11

NUT,FLANGED CAP,10MM

92015-076

$13.08

12

WASHER-PLAIN,10MM

411B1000

$0.93

13

NUT,FLANGED CAP,10MM

92015-076

$13.08

14

GASKET-HEAD,CYLINDER

11004-1107

Unavailable

14

GASKET-HEAD,CYLINDER

11004-1107

Unavailable

15

HOLDER,CARB,L.H.

16065-046

Unavailable

16

PLUG,12X25

92068-006

$4.26

17

PLUG,12X25

92068-006

$4.26

18

SCREW PAN HEAD 6X18

220B0618

$3.67

19

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

20

SCREW-PAN-CROS,5X25

220B0525

$3.67

21

HOLDER,CARB,R.H

16065-047

$80.90
