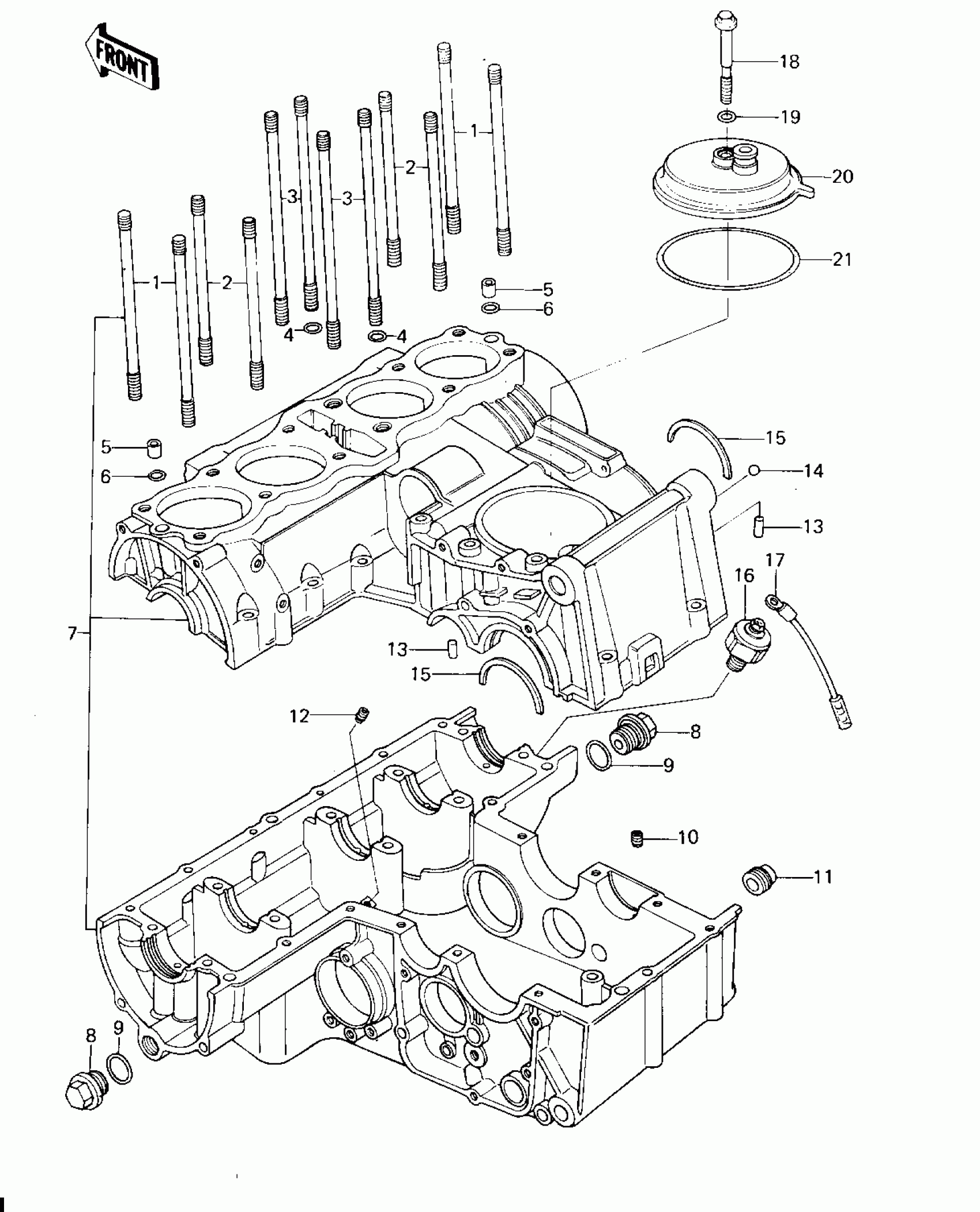

Kawasaki KZ650-B3 CRANKCASE/BREATHER COVER Diagram

#

Description
Price

1

STUD,10X133

92004-1004

$15.96

1

STUD,10X133

92004-1004

$15.96

2

STUD,10X116

92004-1007

Unavailable

2

STUD,10X116

92004-1007

Unavailable

3

STUD,10X153

92004-062

$18.74

4

RING-O,8.8X1.9

92055-099

$4.69

5

NOZZLE

92062-016

$6.16

6

O RING,10MM

670D2010

$1.94

7

CRANKCASE ASSY

14001-101

Unavailable

7

CRANKCASE SET

14001-5046

Unavailable

8

PLUG,18X9

92066-066

$10.97

9

RING-O,20X2

92055-1146

$8.58

10

NOZZLE,SILVER

92062-015

$3.70

11

NOZZLE

92062-014

$9.89

12

NOZZLE,BLACK

92062-011

$8.58

13

PIN,DOWEL,6X16

92042-016

$5.00

14

PLUG,RUBBER BALL,6.7

92066-057

$5.18

15

RING-POSITION

14013-004

$10.19

16

SWITCH ASY,OIL PRSSUR

16144-006

Unavailable

17

WIRE,LEAD,OIL SWITCH

26011-1011

Unavailable

17

WIRE,LEAD,OIL SWITCH

26011-1011

Unavailable

18

BOLT,HEX HEAD,8X72

92003-107

Unavailable

19

O RING,8MM

670B1508

$1.29

20

BODY-BREATHER

14070-1008

$39.70

21

RING-O,91.6X3.4

92055-052

$9.89
