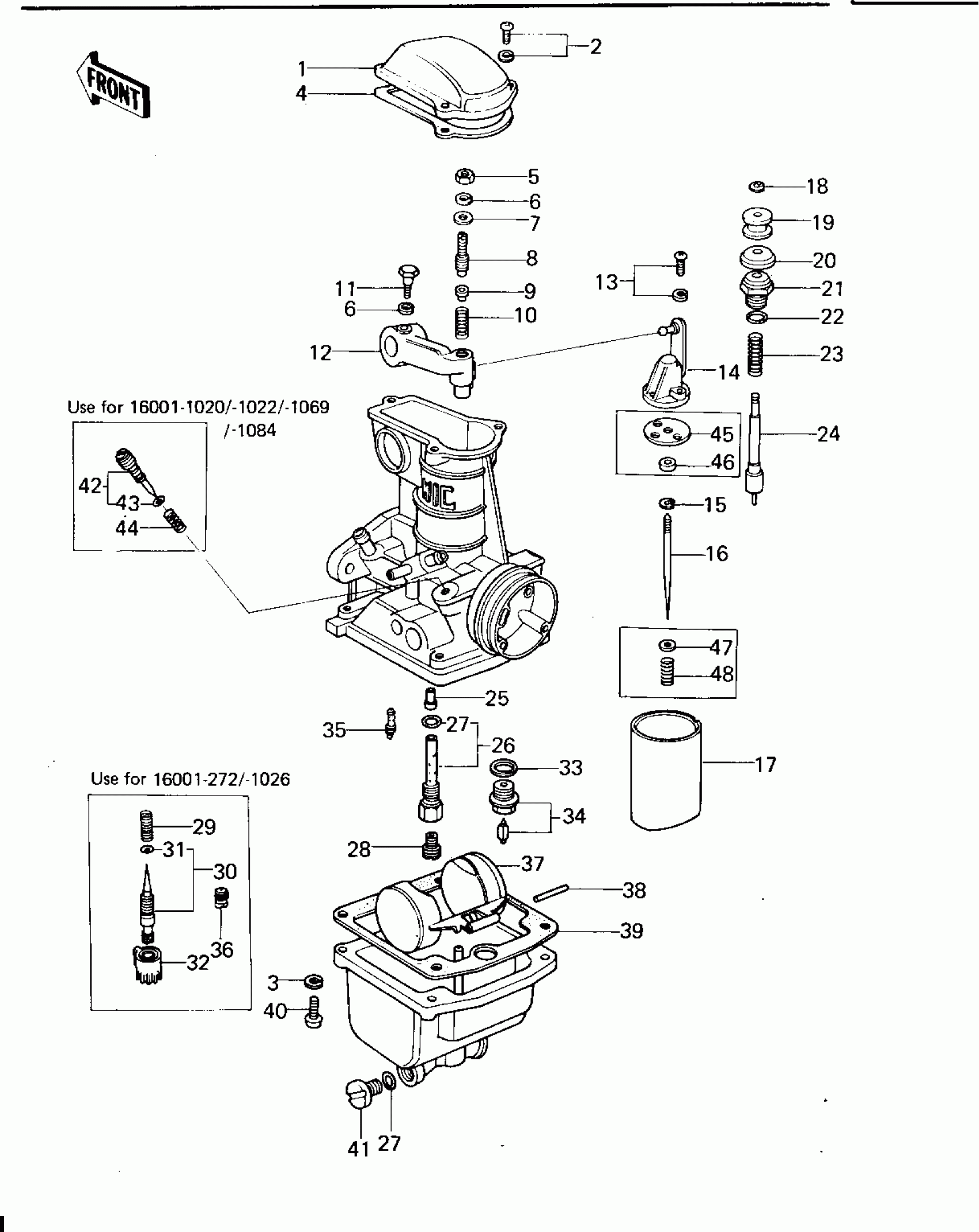

Kawasaki KZ650-B3 CARBURETOR PARTS Diagram
#
1
TOP,MIXING CHAMBER
16005-027
$24.02
2
SCREW-PAN-WS-CROS
223B0414
$1.52
3
WASHER SPRING 4MM
461F0400
Unavailable
4
GASKET,CHAMBER TOP
16019-031
$43.53
5
NUT,5MM
16003-013
$9.40
6
WASHER SPRING 5MM
461F0500
$0.69
7
WASHER,PLAIN
16039-016
Unavailable
8
SCREW,SLOTTED
16046-012
Unavailable
9
SEAT-SPRING
16057-002
Unavailable
10
SPRING
16040-026
$6.62
11
BOLT,HEX HEAD,5X14
16067-006
Unavailable
12
LEVER,THROTTLE
39075-1001
Unavailable
13
SCREW,PAN HEAD,3X14
16033-031
Unavailable
14
BRACKET,THROTTLE VAL
16007-028
$59.43
15
CLAMP,E-TYPE
16008-010
$9.21
16
JET NEEDLE,5CN15
16009-1013
Unavailable
17
VALVE,THROTTLE
16025-1006
$77.29
18
CIRCLIP
16076-003
$8.92
19
COLLAR
16073-014
$10.47
20
CAP,STARTER PLUNGER
16039-015
$6.88
21
CAP,STARTER PLUNGER
16012-015
Unavailable
22
O RING,9MM
670B1509
$3.65
23
SPRING,STARTER PLUG
16013-008
Unavailable
24
PLUNGER,STARTER
16016-021
Unavailable
25
NEEDLE JET,0-4
16017-1021
Unavailable
26
PIPE,BLEED
16047-005
Unavailable
27
"0" RING,MAIN JET COV
16038-016
$3.02
28
MAIN JET,#A102.5
92063-1028
$17.74
28
MAIN JET,#A100
92063-1033
$26.79
28
MAIN JET,#A105R
92063-1042
$15.74
28
JET-MAIN NO 107.5R
92063-073
$15.74
28
MAIN JET NO 92.5R
92063-068
$14.10
28
JET-MAIN,#A95R
92063-1031
$14.34
33
WASHER FLOAT VLV SEAT
16029-004
$3.89
34
FLOAT VALVE ASSY
16030-1001
$56.16
35
JET-PILOT,#A15
92064-1018
$20.51
37
FLOAT
16031-031
$172.74
38
PIN,FLOAT
16032-003
$6.57
39
GASKET,FLOAT CHAMBER
11009-1563
Unavailable
40
SCREW PAN HEAD 4X16
220B0416
$1.66
41
SCREW,GUIDE
16049-007
Unavailable
42
SCREW,AIR ADJUSTING
16014-1006
Unavailable
43
GASKET,"O"RING
16038-022
$6.89
44
SPRING,PILOT AIR SCREW
16022-007
$8.13
