Description

Price

1

BAND,L=146.9

92072-054

$15.34

2

BOLT-UPSET,6X12

112G0612

$1.45

3

WASHER SPRING 6MM

461F0600

$0.69

4

BRACKET,HELMET HOLDER

32122-057

Unavailable

5

CASE,BATTERY

32097-043

$54.42

5

CASE,BATTERY

32097-1005

Unavailable

6

DAMPER,RUBBER

92075-078

$4.39

7

CASE,TOOL

32098-028

Unavailable

8

BRACKET,ELECTRO BASE

32129-016

$10.85

9

BOLT-UPSET

112G0625

$3.62

10

WASHER,7X24X1.6

92022-228

$3.92

11

DAMPER

92075-317

Unavailable

12

COLLAR-CLAMP

92027-291

Unavailable

13

CASE,BATTERY

32099-015

Unavailable

14

BRACKET,ELECTRO BASE

11036-1089

Unavailable

15

GROMMET,ELECTO BASE

92071-1007

Unavailable

16

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

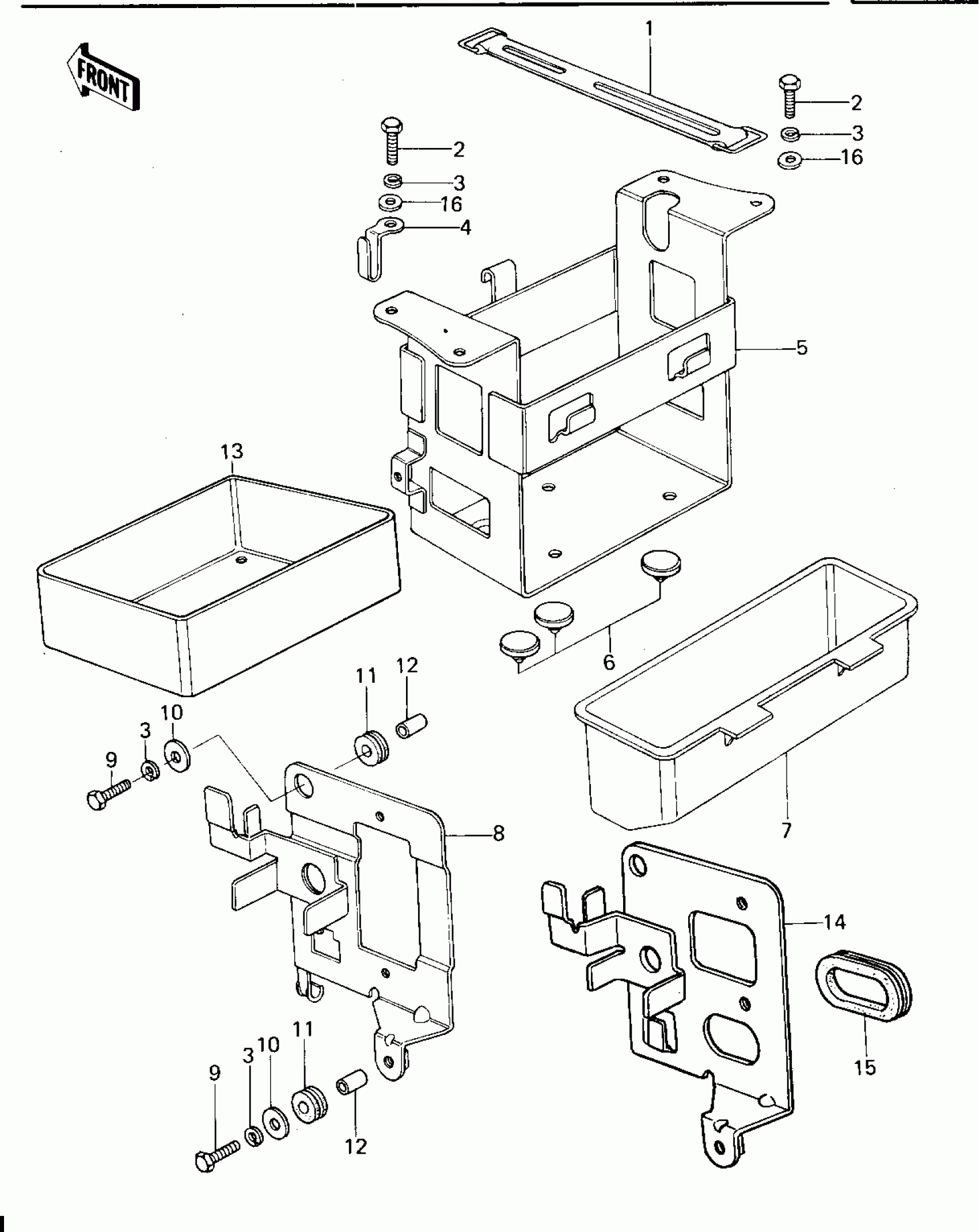

Kawasaki KZ650-B3 BATTERY CASE/TOOL CASE Diagram

BAND,L=146.9

BOLT-UPSET,6X12

WASHER SPRING 6MM

BRACKET,HELMET HOLDER

CASE,BATTERY

CASE,BATTERY

DAMPER,RUBBER

CASE,TOOL

BRACKET,ELECTRO BASE

BOLT-UPSET

WASHER,7X24X1.6

DAMPER

COLLAR-CLAMP

CASE,BATTERY

BRACKET,ELECTRO BASE

GROMMET,ELECTO BASE

WASHER-PLAIN-SMALL,6MM
