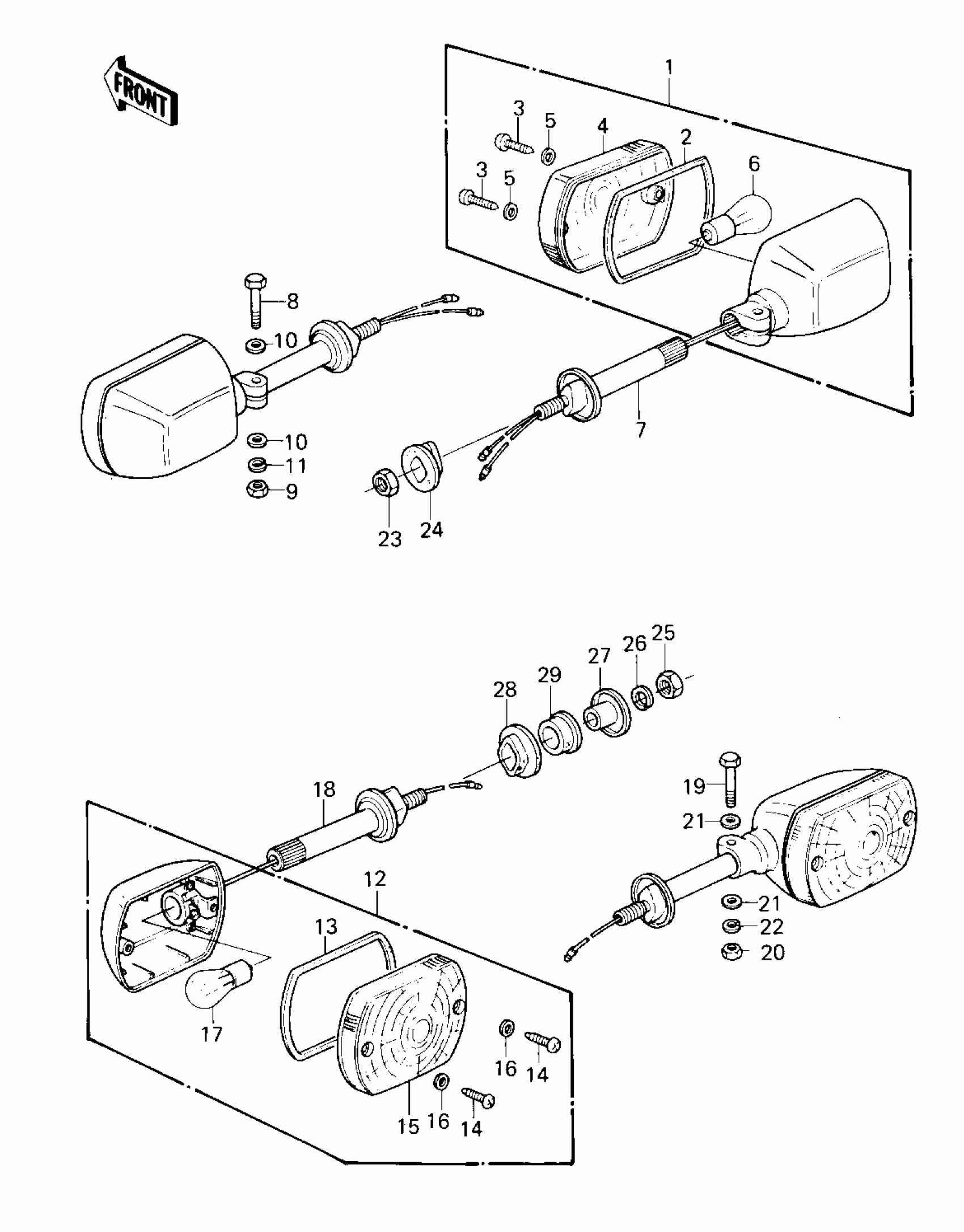

Kawasaki KZ550-A2 TURN SIGNALS ('80-'81 A1/A2) Diagram
#
Description
Price
1
LAMP ASSY,TURN SIGNAL
23040-1018
$149.27
1
LAMP ASSY,TURN SIGNAL
23040-1017
Unavailable
2
GASKET,TURN SIGNAL
11009-1052
$4.46
3
SCREW-PAN-CROS
220E0412
Unavailable
4
LENS-SIGNAL LAMP
23048-1022
$11.45
5
WASHER,PLAIN,4MM
23058-002
$2.49
6
BULB,12V 32CP(23W)
92069-055
$5.18
6
BULB,12V 32/3CP(23/8W)
92069-060
$9.70
7
BRACKET-SIGNAL LAMP
23051-1014
$39.04
8
BOLT-UPSET
112G0630
$1.36
9
NUT 6MM
311B0600
$0.93
10
WASHER PLAIN 6MM
411B0600
$2.84
11
WASHER SPRING 6MM
461F0600
$0.69
12
LAMP ASSY,TURN SIGNAL
23040-1018
$149.27
13
GASKET,TURN SIGNAL
11009-1052
$4.46
14
SCREW-PAN-CROS
220E0412
Unavailable
15
LENS-SIGNAL LAMP
23048-1022
$11.45
16
WASHER,PLAIN,4MM
23058-002
$2.49
17
BULB,12V 32CP(23W)
92069-055
$5.18
18
BRACKET-SIGNAL LAMP
23051-1014
$39.04
19
BOLT-UPSET
112G0630
$1.36
20
NUT 6MM
311B0600
$0.93
21
WASHER PLAIN 6MM
411B0600
$2.84
22
WASHER SPRING 6MM
461F0600
$0.69
23
NUT-HEX-FINE,10MM
315B1000
$0.58
24
DAMPER,LAMP
92075-128
$5.86
25
NUT-HEX-FINE,10MM
315B1000
$0.58
26
WASHER SPRING 10MM
461F1000
$0.67
27
COLLAR
92027-147
$15.20
28
DAMPER,LAMP
92075-128
$5.86
29
DAMPER RUBBER,SIG LM
92075-158
$5.47
