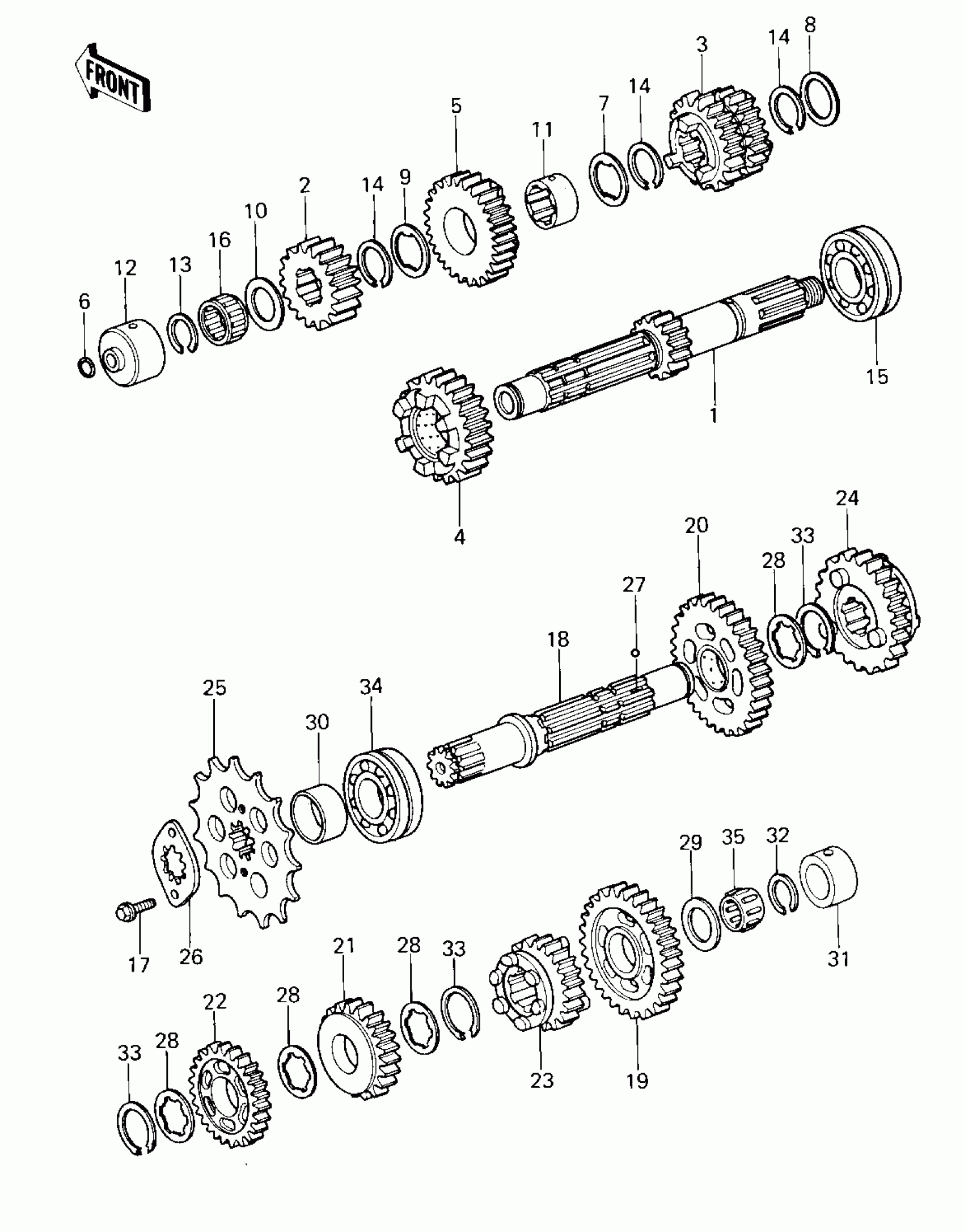

Kawasaki KZ550-A2 TRANSMISSION ('80-'81 A1/A2) Diagram
#
Description
Price
1
SHAFT,DRIVE,14T
13127-1008
Unavailable
2
GEAR,INPUT 2ND,18T
13129-1077
Unavailable
3
GEAR,INPUT 3RD&4TH,21T&24T
13260-1195
Unavailable
4
5TH GEAR,DRIVE SHAFT
13129-1082
Unavailable
5
GEAR,INPUT TOP,27T
13129-1658
Unavailable
6
O RING,8MM
670B1508
$1.29
7
WASHER,TOOTHED,25.3X30X1
92022-1072
Unavailable
8
WASHER,25.3X30X1
92022-161
$10.65
9
WASHER,TOOTHED,25.5X32X1
92024-033
$8.19
10
SPACER,20.3X30X2.0
92026-1022
$5.59
11
BUSHING,INPUT TOP GEAR
92028-1552
$31.84
12
BUSHING,DRIVE SHAFT
92028-1032
$92.98
13
RING-SNAP,20MM
92033-015
$4.26
14
RING-SNAP,24MM
92033-026
$8.79
15
BEARING-BALL,83993SH2-CS
92045-035
$73.57
16
BEARING-NEEDLE,VS20/14A
92046-1030
$25.43
17
BOLT-FLANGED,6X12
130G0612
$1.69
18
SHAFT,OUTPUT
13128-1009
Unavailable
19
LOW GEAR,OUTPUT,36T
13129-1076
Unavailable
20
GEAR,OUTPUT 2ND,32T
13129-1078
Unavailable
21
3RD GEAR,OUTPUT,29T
13129-1080
Unavailable
22
4TH GEAR,OUTPUT,27T
13129-1081
Unavailable
23
GEAR,OUTPUT 5TH,25T
13129-1083
Unavailable
24
GEAR,OUTPUT TOP,23T
13129-1662
Unavailable
25
SPROCKET,ENGINE,16T
13144-1016
Unavailable
26
PLATE,SPROCKET
13270-1060
$8.76
27
BALL-STEEL,5/32
600A0500
$0.81
28
WASHER,TOOTHED,28.3X33.5X1
92022-1139
$7.22
29
SPACER,20.3X30X2.0
92026-1022
$5.59
30
COLLAR,25X32X23.5
92027-1106
$13.07
31
BUSHING,26X34X16.6
92028-180
$28.82
32
RING-SNAP,20MM
92033-015
$4.26
33
RING-SNAP,25.9X30.6X1.2
92033-1037
$4.65
34
BEARING-BALL,83993SH2-CS
92045-035
$73.57
35
BEARING-NEEDLE,VS20/14A
92046-1030
$25.43
