Description

Price

1

LAMP-TAIL,"220-40781"MARK

23025-064

Unavailable

2

SCREW, PAN HEAD, 4X60

220E0460A

Unavailable

3

LENS,TAIL LAMP

23026-034

$77.14

4

BODY-COMP-TAIL LAMP

23027-041

$128.08

5

GASKET,TAIL LAMP LENS

23028-021

$12.37

6

BULB,12V 27/8W

92069-059

$8.12

7

BRACKET,TAIL LAMP

23036-1011

$99.97

8

COLLAR,6.8X10X14.5

92027-156

$5.00

9

DAMPER RUBBER

92075-1092

Unavailable

10

DAMPER RUBBER,TAIL

92075-1103

$12.76

11

BOLT 6X22

112B0622

$3.48

12

WASHER,6.5X20X1.6

92022-125

$1.40

13

BOLT-UPSET,6X20

112G0620

$2.12

14

WASHER,6.5X20X1.6

92022-125

$1.40

15

COLLAR 6.8X10X10.5

92027-120

$5.00

16

DAMPER RUBBER

92075-112

$4.31

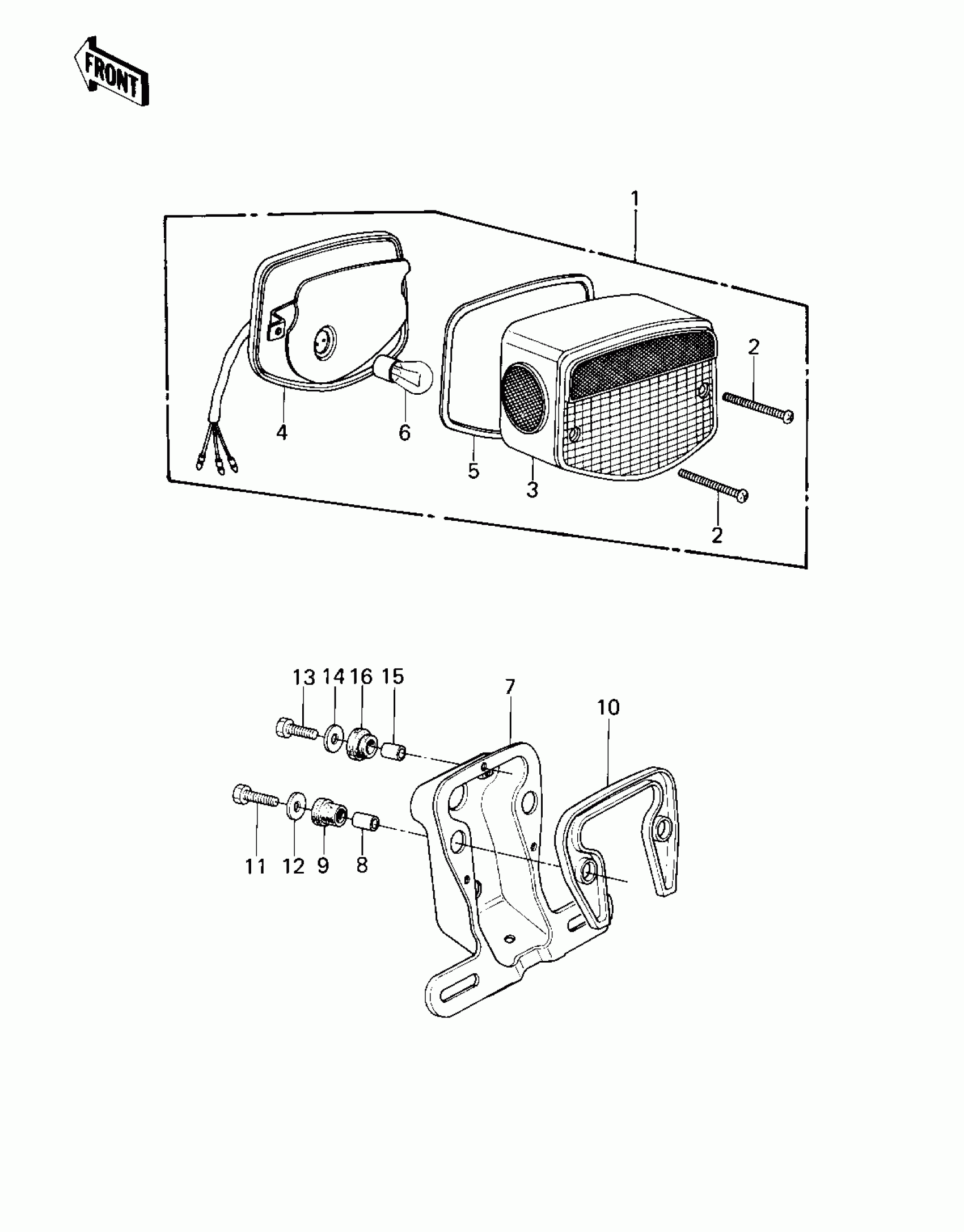

Kawasaki KZ550-A2 TAILLIGHT ('80-'81 A1/A2) Diagram

LAMP-TAIL,"220-40781"MARK

SCREW, PAN HEAD, 4X60

LENS,TAIL LAMP

BODY-COMP-TAIL LAMP

GASKET,TAIL LAMP LENS

BULB,12V 27/8W

BRACKET,TAIL LAMP

COLLAR,6.8X10X14.5

DAMPER RUBBER

DAMPER RUBBER,TAIL

BOLT 6X22

WASHER,6.5X20X1.6

BOLT-UPSET,6X20

WASHER,6.5X20X1.6

COLLAR 6.8X10X10.5

DAMPER RUBBER
