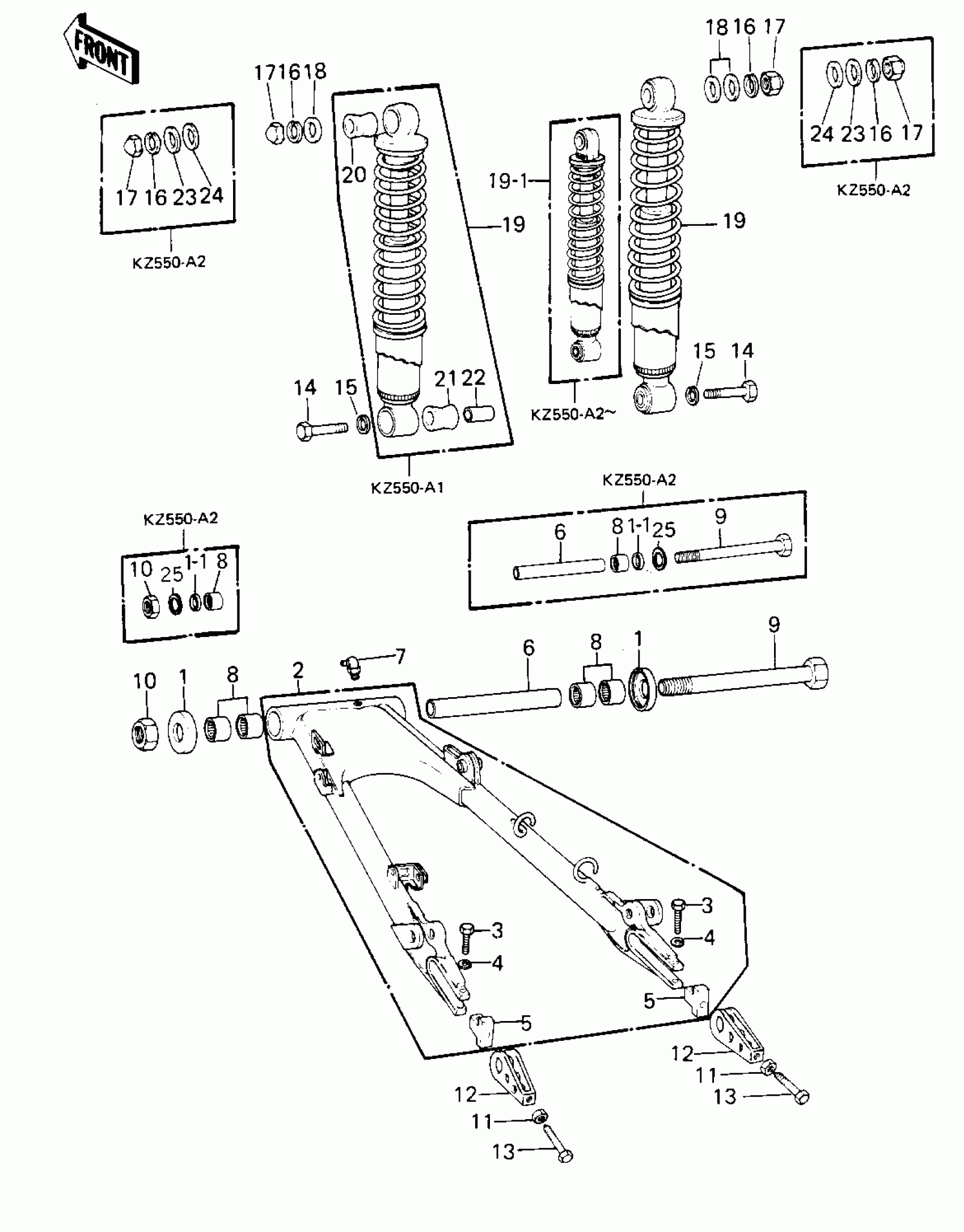

Kawasaki KZ550-A2 SWING ARM/SHOCK ABSORBERS ('80-'81 A1/A2 Diagram
#
Description
Price
1
CAP,SWING ARM
11012-1029
$20.99
1-1
SEAL-OIL,MHA22284
92049-1059
$11.00
2
ARM-COMP-SWING
33001-1098
$298.59
2
ARM-COMP-SWING
33001-1098
$298.59
3
BOLT-SMALL-UPSET
115G0835
$4.54
4
WASHER SPRING 8MM
461F0800
$0.40
5
STOPPER,CHAIN ADJUST
33044-002
Unavailable
6
SLEEVE,SWING ARM
42036-1018
Unavailable
7
GREASE NIPPLE
92005-002
Unavailable
8
BEARING-NEEDLE,HK2216
92046-1115
$20.02
8
BEARING-NEEDLE,HK2216
92046-1115
$20.02
9
SHAFT,SWING ARM
33032-1004
$101.21
10
NUT-LOCK,14MM
92019-011
Unavailable
11
NUT-HEX-SMALL,8MM
318B0800
$0.59
12
ADJUSTER,CHAIN
33040-056
Unavailable
13
BOLT,8X50
92001-1399
$9.48
13
BOLT,8X50
92001-1399
$9.48
14
BOLT HEX HEAD 10X35
113N1035
$9.14
15
WASHER SPRING 10MM
461F1000
$0.67
16
WASHER SPRING 10MM
461F1000
$0.67
17
NUT,CAP,10MM
92020-003
$6.52
18
WASHER,10X22X3.2
92022-176
$4.78
19
SHOCK ABSBR RR
45014-1036
$373.36
19-1
SHOCK ABSBR RR
45014-1082
$181.85
20
DAMPER,SHOCKABSORBER
45017-015
Unavailable
21
DAMPER,SHOCKABSORBER
45017-012
$14.90
22
COLLAR,SHOCKABSORBER
45016-008
$9.91
23
WASHER-PLAIN,10MM
411B1000
$0.93
24
WASHER,10X22X3.2
92022-176
$4.78
