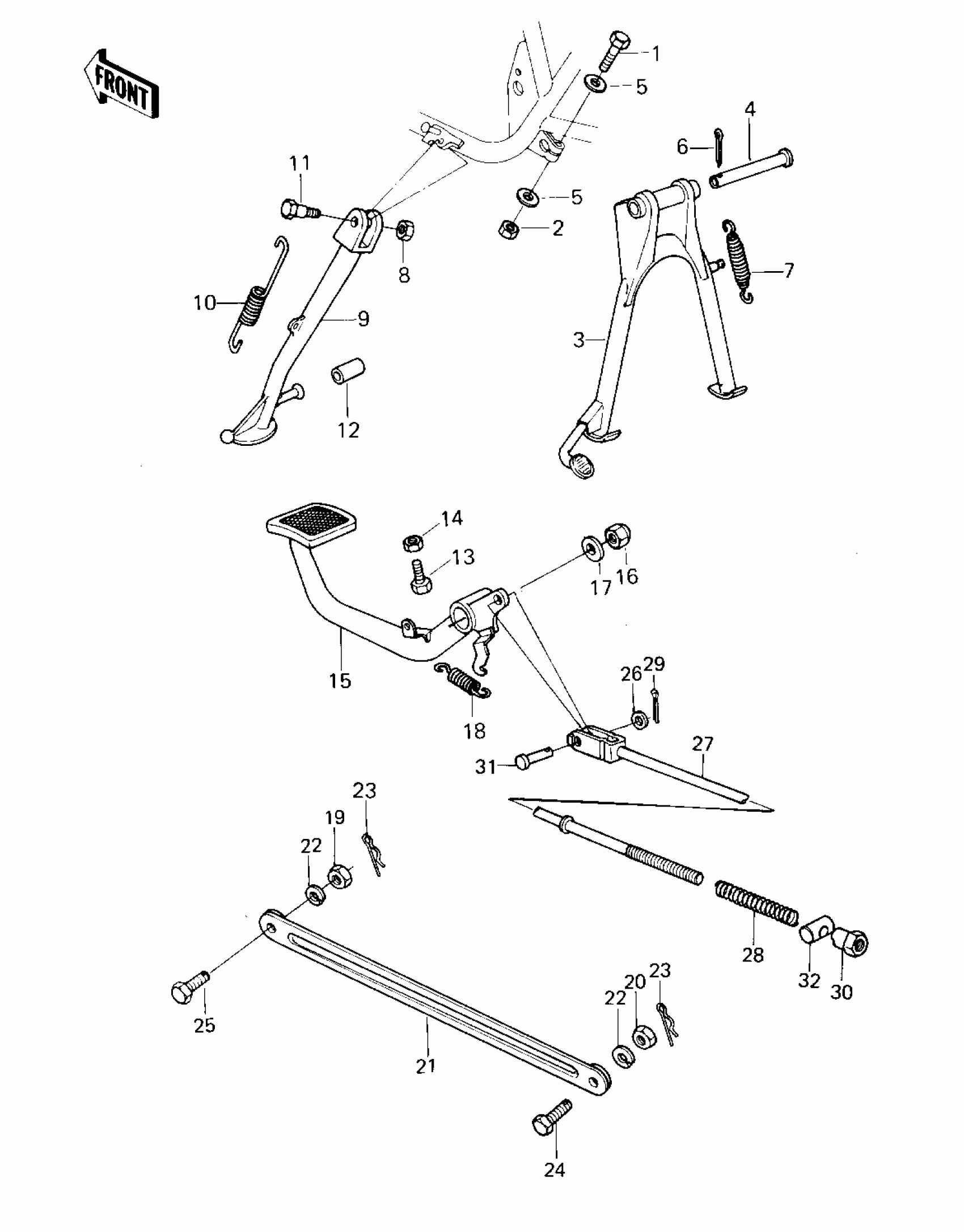

Kawasaki KZ550-A2 STANDS/BRAKE PEDAL ('80-'81 A1/A2) Diagram

#

Description
Price

1

BOLT,8X40

115G0840

$6.00

2

NUT-HEX-SMALL,8MM

317B0800

$0.67

3

STAND-MAIN

34011-1010

$203.76

4

SHAFT,MAIN STAND

34019-016

Unavailable

5

WASHER PLAIN 8MM

410B0800

$0.93

6

PIN-COTTER,3.0X30

550D3030

$2.51

7

SPRING,STAND,CNT

92081-1145

Unavailable

7

SPRING,MAIN STAND

92081-1265

$15.02

8

NUT-HEX-FINE,10MM

315B1000

$0.58

9

STAND-SIDE

34024-1036

$146.00

9

STAND-SIDE

34024-1036

$146.00

10

SPRING,STAND

34025-005

$7.58

11

BOLT,SIDE STAND

92003-079

$11.79

12

DAMPER RUBB SIDE STND

92075-031

$10.21

13

BOLT-UPSET,6X20

112G0620

$2.12

14

NUT 6MM

311B0600

$0.93

15

PEDAL,BRAKE

43001-1019

$109.64

16

NUT,CAP AND LOCK,8MM

92019-013

$14.88

16

NUT,CAP,LOCK,8MM

92015-1131

$5.84

17

WASHER,8.5X20X1.6

92022-1561

$4.31

18

SPRING,BRAKE PEDAL

92081-1147

Unavailable

19

NUT-HEX-FINE,10MM

314B1000

$0.67

20

NUT-HEX-FINE,10MM

315B1000

$0.58

21

TORQUE LINK-REAR BRK

43007-027

$27.18

22

WASHER SPRING 10MM

461F1000

$0.67

23

PIN-SNAP,8MM

554A0800

$1.26

24

BOLT,10X35

92003-034

$13.21

25

BOLT,10X29

92003-096

$10.72

26

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

27

ROD,BRAKE

43011-1014

Unavailable

28

SPRING,BRAKE ROD

43012-001

$4.65

29

PIN COTTER 2.0X15

550D2015

$1.04

30

NUT,BRAKE ROD

92015-042

$6.22

31

PIN,6X17

92043-064

$4.69

32

PIN,BRAKE ROD

92043-065

$5.57
