Description

Price

1

SEAT-ASSY,DUAL

53001-1133

$526.40

1

SEAT-ASSY,DUAL

53001-1133

$526.40

2

BOLT-UPSET 6X14

112B0614

Unavailable

3

NUT 6MM

311B0600

$0.93

4

WASHER PLAIN 6MM

411B0600

$2.84

5

WASHER SPRING 6MM

461F0600

$0.69

6

HINGE,SEAT,FRONT

53009-1010

Unavailable

7

HOOK,SEAT

53056-002

$16.66

8

BRACKET, SEAT CATCH

53058-001

Unavailable

9

DAMPER RUBBER,SEAT

92075-1061

Unavailable

10

DAMPER RUBBER-SEAT

92075-156

Unavailable

11

PIN,6X48

53011-002

$5.96

12

PIN,DUAL SEAT PIVOT

53011-008

Unavailable

13

HOOK SEAT

53054-001

$15.38

14

PIN,SNAP

554A0600

$0.93

15

SPRING,SEAT HOOK

92081-1053

$15.20

16

COVER,SEAT,EBONY

14025-5023-8G

Unavailable

16-1

COVER-SEAT,L.P.RED

14025-1046-D9

Unavailable

17

BOLT 6X22

112B0622

$3.48

18

WASHER SPRING 6MM

461F0600

$0.69

19

COLLAR,L=13.1

92027-251

Unavailable

20

GROMMET,SIDE COVER

92071-072

$12.31

21

RUBBER,FENDER COVER

92075-174

$4.78

22

DAMPER,FEMALE

92075-175

$4.39

23

BOLT-UPSET 6X14

112B0614

Unavailable

24

WASHER SPRING 6MM

461F0600

$0.69

25

WASHER PLAIN 6MM

411B0600

$2.84

26

LOCK-ASSY,SEAT

27016-5010

Unavailable

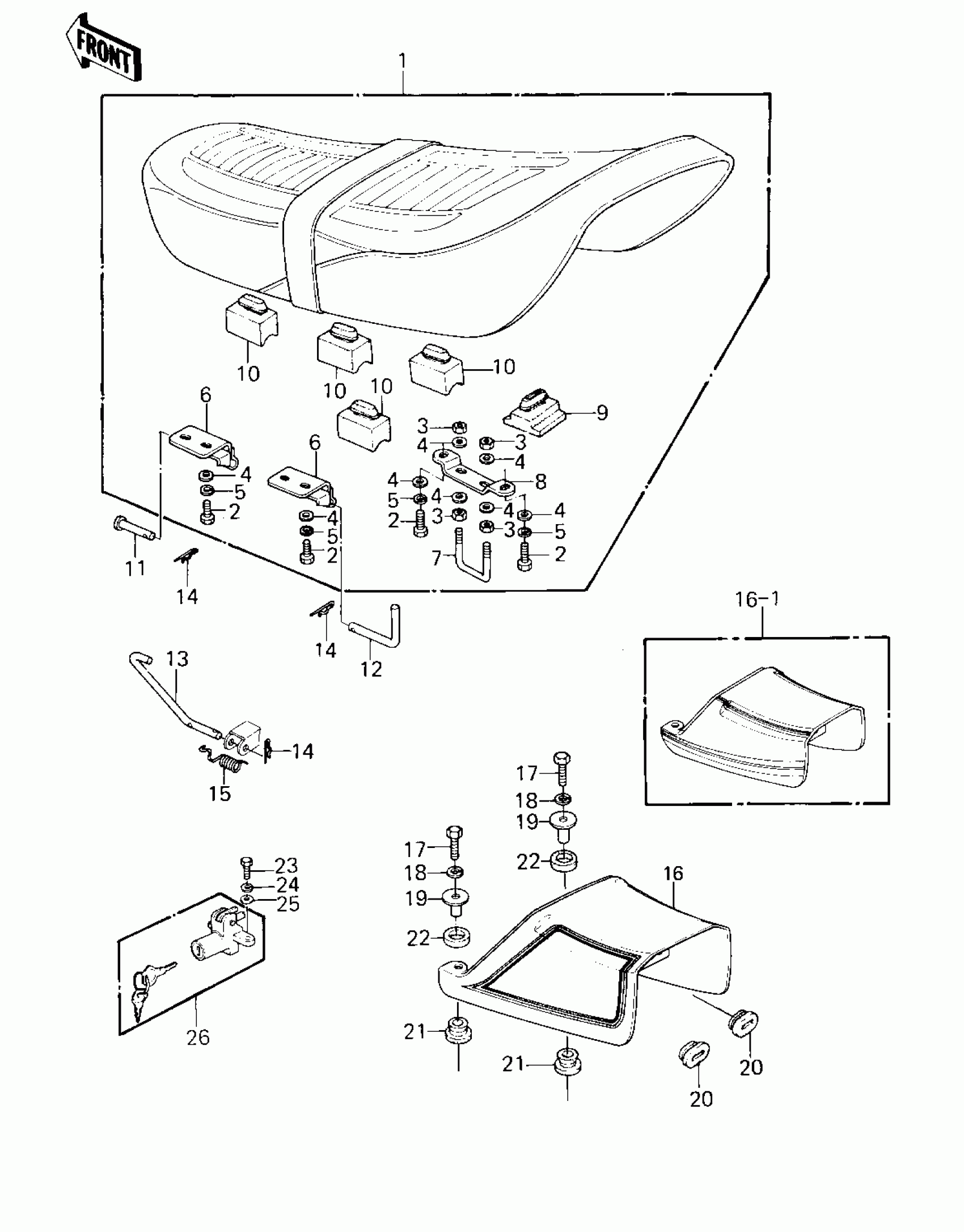

Kawasaki KZ550-A2 SEAT/SEAT COVERS ('80-'81 A1/A2) Diagram

SEAT-ASSY,DUAL

SEAT-ASSY,DUAL

BOLT-UPSET 6X14

NUT 6MM

WASHER PLAIN 6MM

WASHER SPRING 6MM

HINGE,SEAT,FRONT

HOOK,SEAT

BRACKET, SEAT CATCH

DAMPER RUBBER,SEAT

DAMPER RUBBER-SEAT

PIN,6X48

PIN,DUAL SEAT PIVOT

HOOK SEAT

PIN,SNAP

SPRING,SEAT HOOK

COVER,SEAT,EBONY

COVER-SEAT,L.P.RED

BOLT 6X22

WASHER SPRING 6MM

COLLAR,L=13.1

GROMMET,SIDE COVER

RUBBER,FENDER COVER

DAMPER,FEMALE

BOLT-UPSET 6X14

WASHER SPRING 6MM

WASHER PLAIN 6MM

LOCK-ASSY,SEAT
