Partiron

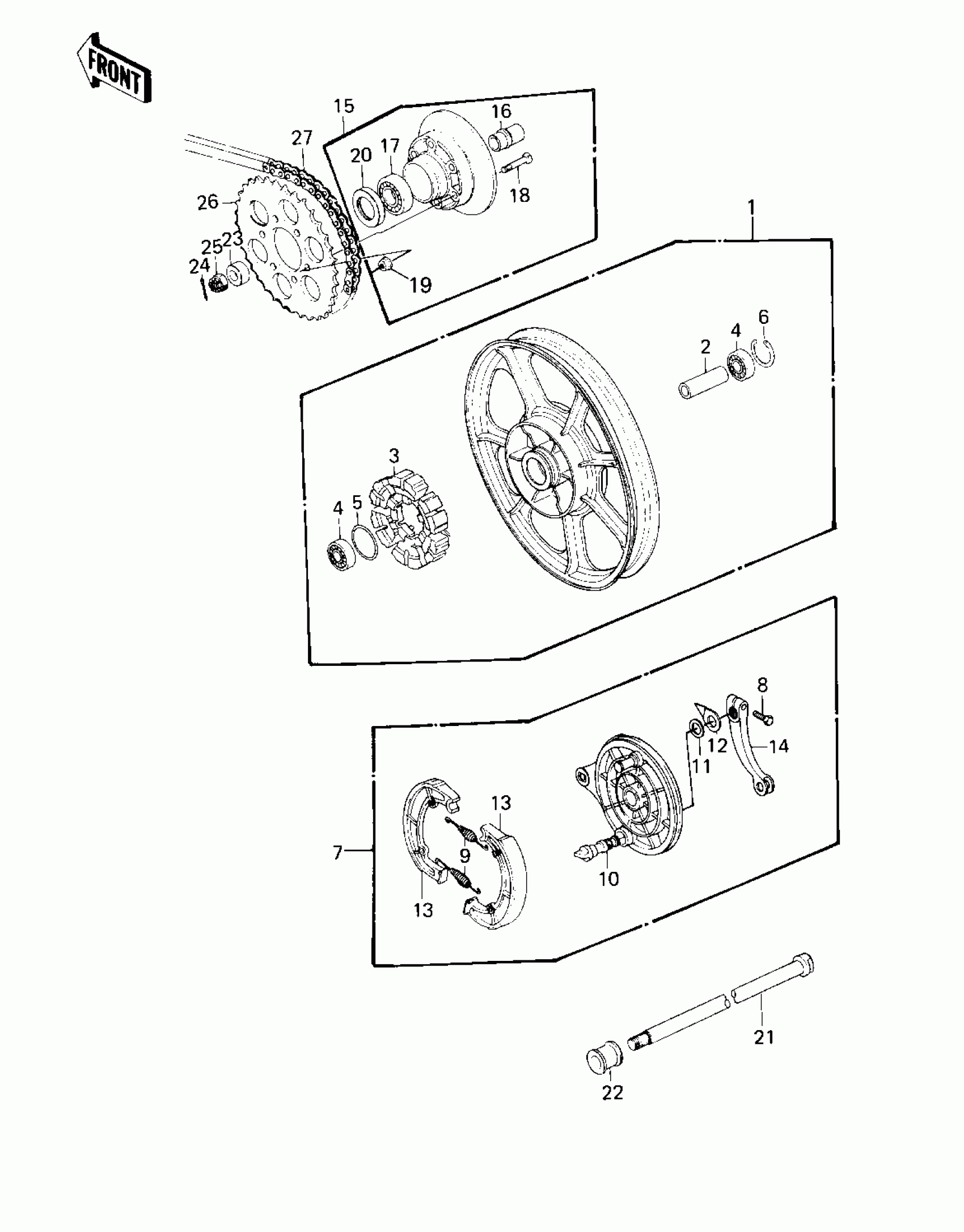

Kawasaki KZ550-A2 REAR WHEEL/HUB/BRAKE/CHAIN ('80-'81 A1/A Diagram

#

Description
Price

1

SOLID WHEEL ASSY, RR

41073-1103

$689.03

1

SOLID WHEEL ASSY, RR

41073-1103

$689.03

2

SPACER,REAR HUB BRG

42010-033

Unavailable

3

DAMPER,REAR HUB SHOCK

42014-026

Unavailable

4

BEARING-BALL,#6303ZZC3

601B6303ZZ

$40.38

5

O RING,55MM

671B2555

$6.22

6

RING-SNAP,47MM

92033-1042

$4.22

7

PANEL-ASY,BRK BLACK

41035-1055

$648.45

7

PANEL-ASY,BRK BLACK

41035-1055

$648.45

8

BOLT HEX HEAD 8X28

114G0828

Unavailable

9

SPRING,BRAKE SHOE

41049-012

$9.49

10

CAM-BRAKE

41050-017

Unavailable

11

SEAL,BRAKE CAM

41051-003

$4.26

12

INDICATOR,BRAKE SHOE

41085-004

$14.51

13

SHOE,BRAKE

42019-012

$39.45

14

LEVER-BRAKE CAM

42029-039

Unavailable

15

COUPLING ASSY,REAR HB

42008-032

$171.97

16

SLEEVE,REAR HUB COUPL

42036-026

Unavailable

17

BEARING-BALL,#6305C3

601B6305

$25.78

18

BOLT-REAR SPROCKET

92003-087

Unavailable

19

NUT,FLANGED,10MM

92015-1415

$4.69

20

OIL,SEAL,#38629

92050-076

Unavailable

21

AXLE,RR

41068-1086

$73.40

22

COLLAR REAR AXLE

42032-017

Unavailable

23

COLLAR,REAR AXLE,L.H.

42032-067

Unavailable

24

PIN-COTTER,4.0X35

550D4035

$1.50

25

NUT,16MM

92015-055

Unavailable

26

SPROCKET,REAR,40T

42041-1045

Unavailable

27

CHAIN,530X100 SH-O

92057-1050

$433.56

27

CHAIN,530X100 SH-O

92057-1050

$433.56
