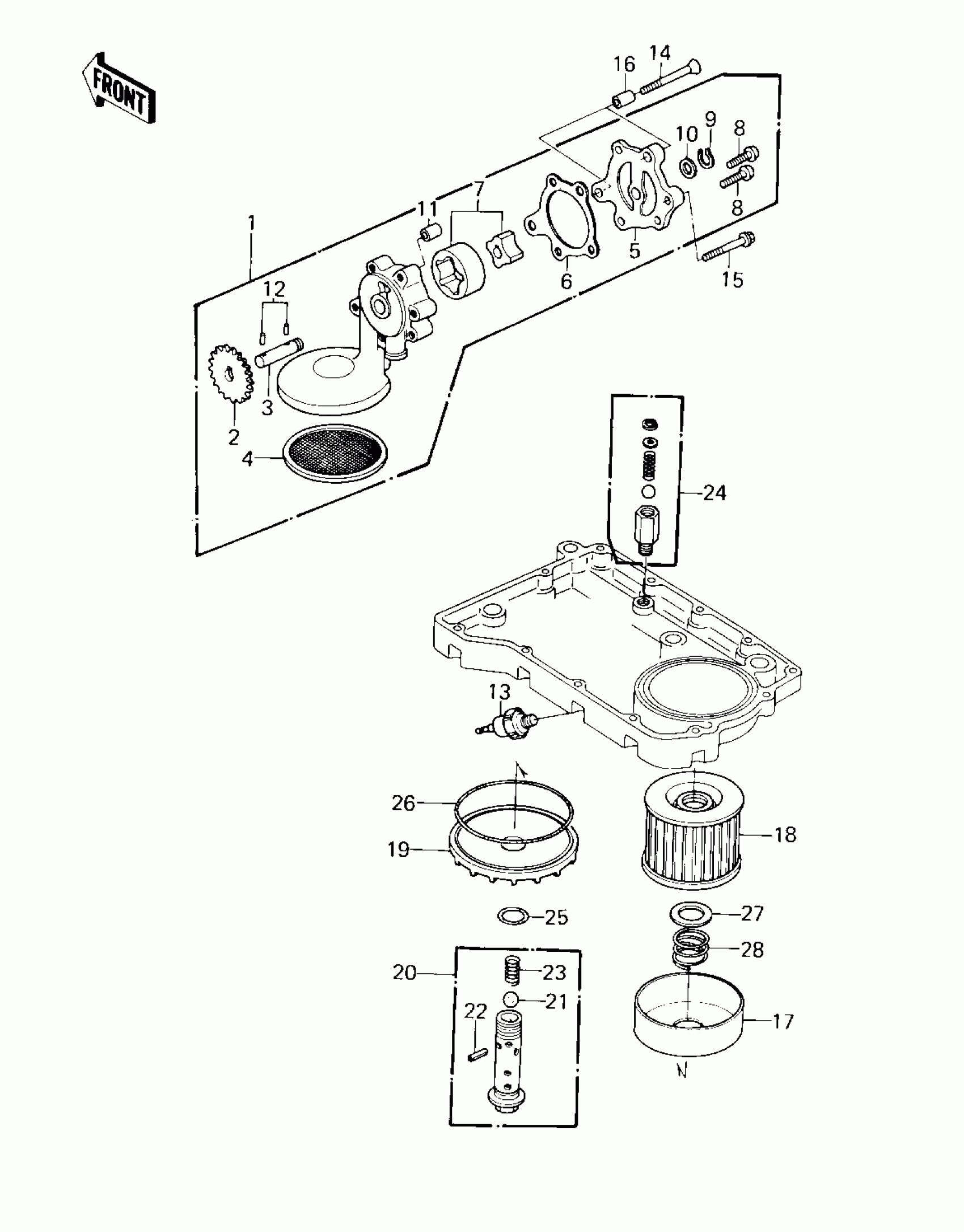

Kawasaki KZ550-A2 OIL PUMP/OIL FILTER ('80-'81 A1/A2) Diagram
#
Description
Price
1
PUMP-ASSY-OIL
16082-064
Unavailable
2
GEAR,OIL PUMP,57T
16085-025
Unavailable
3
SHAFT,OIL PUMP
16086-004
Unavailable
4
FILTER,OIL PUMP
16111-004
$44.36
5
COVER-PUMP
16142-005
$38.50
6
GASKET,OIL PUMP COVER
16145-004
$3.32
7
ROTOR-PUMP
16154-003
$88.29
8
SCREW PAN HEAD 6X22
220B0622
$3.71
9
CIRCLIP-TYPE-C,11MM
480J1100
$1.24
10
WASHER,11.2X15X1
92022-311
$3.92
11
PIN,DOWEL,8X10
92043-1302
$1.03
12
PIN,DOWEL,4X12.8
92042-041
$6.57
13
SWITCH ASY,OIL PRSSUR
16144-006
Unavailable
13
SWITCH,OIL PRESSURE
27010-1155
$40.13
14
SCREW-CSK-CROS,6X55
221B0655
$4.30
15
BOLT,FLANGED,6X45
92001-165
$5.24
16
PIN,DOWEL,8X28
92042-050
$4.31
17
PLATE,OIL FILTER
13169-1110
$7.62
18
ELEMENT-OIL FILTER
16099-003
$12.20
19
COVER,OIL FILTER
16101-004
$44.52
20
VALVE,OIL FILTER
16126-1108
$41.98
21
BALL-STEEL,3/8"
600A1200
$1.56
22
PIN,SPRING,2X20
92043-111
$6.27
23
SPRING
92081-109
$11.29
24
VALVE-ASSY-RELIEF
16130-1001
Unavailable
25
O RING,16MM
670B2016
$1.36
26
O RING,90MM
671B2590
$9.91
27
WASHER,20.5X30X1
92022-1012
$4.34
28
SPRING,OIL FILTER
92081-1018
$4.65
