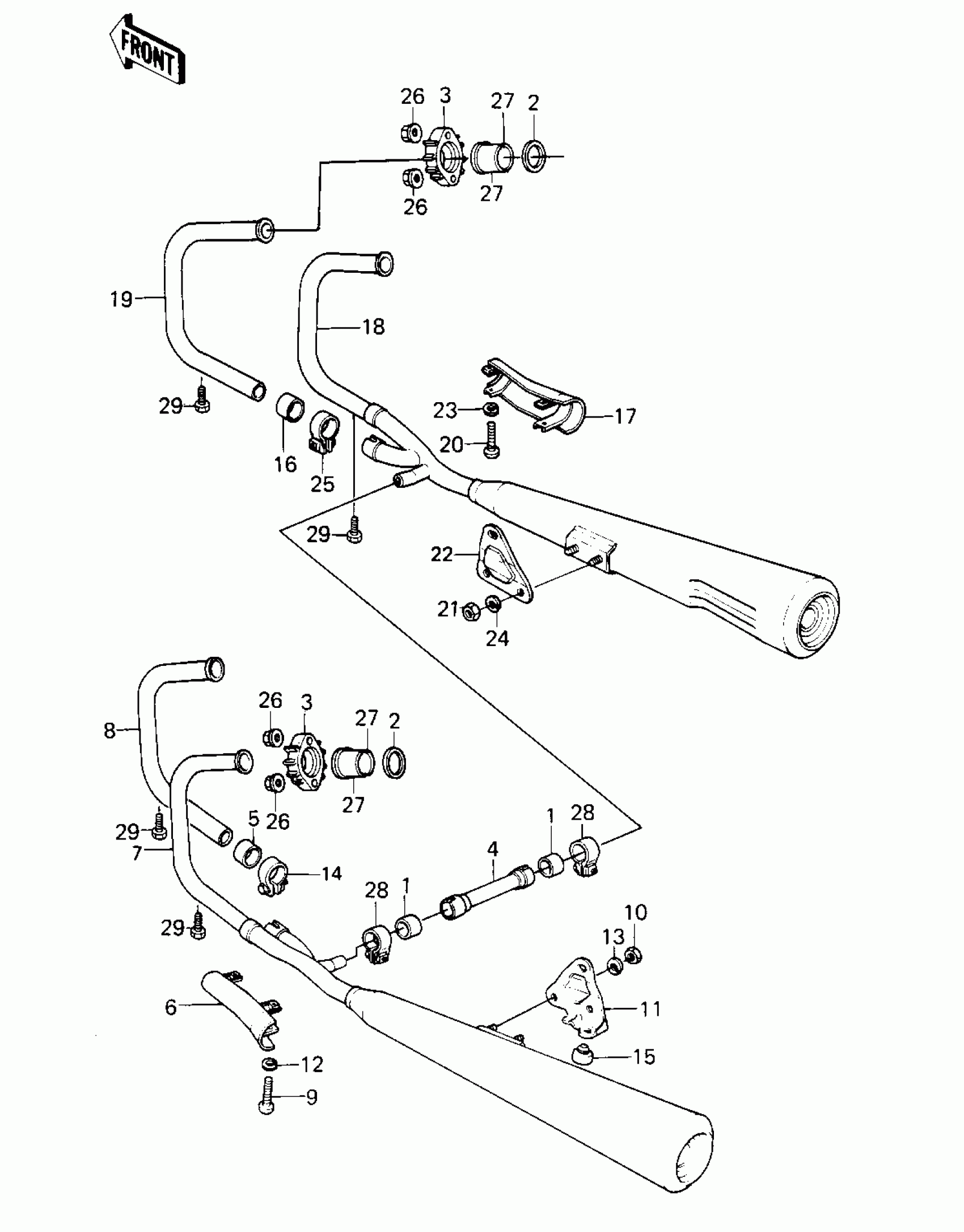

Kawasaki KZ550-A2 MUFFLERS ('80-'81 A2/A3) Diagram
#
Description
Price
1
GASKET,MUFFLER CONNEC
11060-1051
$23.41
2
GASKET,EXHAUST PIPE H
11009-1866
$8.25
3
HOLDER,EXHAUST PIPE
18069-1006
$27.28
4
PIPE,MUFFLER CONNECT1
32032-1671
Unavailable
5
GASKET,EXHAUST PIPE CONNECTING
11009-1667
$22.90
6
COVER,MUFFLER,LH
14025-1531
Unavailable
7
MUFFLER,L.H.
18001-1128
Unavailable
7
MUFFLER,L.H.
18001-1128
Unavailable
8
PIPE,EXHAUST,#2
18049-1067
$130.17
8
PIPE,EXHAUST,#2
18049-1067
$130.17
9
SCREW PAN HEAD 6X40
220B0640
Unavailable
10
NUT-HEX-SMALL,8MM
317B0800
$0.67
11
BRACKET,MUFFLER,L.H.
32069-1031
Unavailable
12
WASHER SPRING 6MM
461F0600
$0.69
13
WASHER SPRING 8MM
461F0800
$0.40
14
CLAMP,EXHAUST PIPE
92037-1089
$4.08
14
CLAMP,42MM
92037-1349
$12.95
15
DAMPER
92075-015
$5.00
16
GASKET,EXHAUST PIPE CONNECTING
11009-1667
$22.90
17
COVER,MUFFLER,RH
14025-1532
Unavailable
18
MUFFLER,R.H.
18001-1129
Unavailable
18
MUFFLER,R.H.
18001-1129
Unavailable
19
PIPE,EXHAUST,#3
18049-1068
$137.69
19
PIPE,EXHAUST,#3
18049-1068
$137.69
20
SCREW PAN HEAD 6X40
220B0640
Unavailable
21
NUT-HEX-SMALL,8MM
317B0800
$0.67
22
BRACKET,MUFFLER,R.H.
32069-1032
Unavailable
23
WASHER SPRING 6MM
461F0600
$0.69
24
WASHER SPRING 8MM
461F0800
$0.40
25
CLAMP,EXHAUST PIPE
92037-1089
$4.08
25
CLAMP,42MM
92037-1349
$12.95
26
NUT,FLANGED,6MM
92015-1078
Unavailable
27
COLLAR,EXHAUST PIPE
92027-264
$4.73
28
CLAMP,PIPE,35MM
92037-1223
Unavailable
28
CLAMP,PIPE,35MM
92037-1223
Unavailable
29
BOLT (6X10)
110R0610
$3.44
