Description

Price

1

HOLDER-HANDLE,UPP

46012-008

$37.74

2

WASHER SPRING 8MM

461F0800

$0.40

3

BOLT 8X38

92001-1405

$16.50

3

BOLT 8X38

92001-1405

$16.50

4

HANDLEBAR

46003-1057

$108.83

5

GRIP ASSY,THROTTLE

46019-038

$118.44

6

HOUSING ASSY,CONT,R.H

46091-1078

$139.20

6-1

HOUSING ASSY,CONTR,RH

46091-1105

Unavailable

7

SWITCH,PUSH BUTTON

27010-1009

$9.20

8

SCREW-PAN-CROS

220B0540

$3.41

9

SCREW PAN HEAD 5X30

220B0530

$3.41

10

RUBBER,L.H GRIP

46075-028

$39.98

11

LEVER ASSY,CLUTCH

46076-054

$102.73

12

BOLT-UPSET

112G0625

$3.62

13

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

14

SWITCH,CLUTCH

27043-002

$39.87

15

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

16

NUT,CABLE ADUST NUT

46056-007

Unavailable

17

LEVER-GRIP,CLUTCH

46092-023

$35.96

18

HOLDER,CLUTCH LEVER

46094-019

$70.86

19

BOLT,HEX HEAD

92007-047

$13.77

20

NUT,LOCK,6MM

92019-008

$4.26

21

HOUSING ASSY,CONT,L.H

46091-1079

Unavailable

21-1

HOUSING ASSY,CONTR,LH

46091-1141

$116.91

22

SCREW-PAN-CROS

220B0535

$3.70

23

SCREW PAN HEAD 5X30

220B0530

$3.41

24

REAR VIEW MIRROR,L.H.

56001-1015

Unavailable

25

REAR VIEW MIRROR,R.H.

56001-1016

$95.93

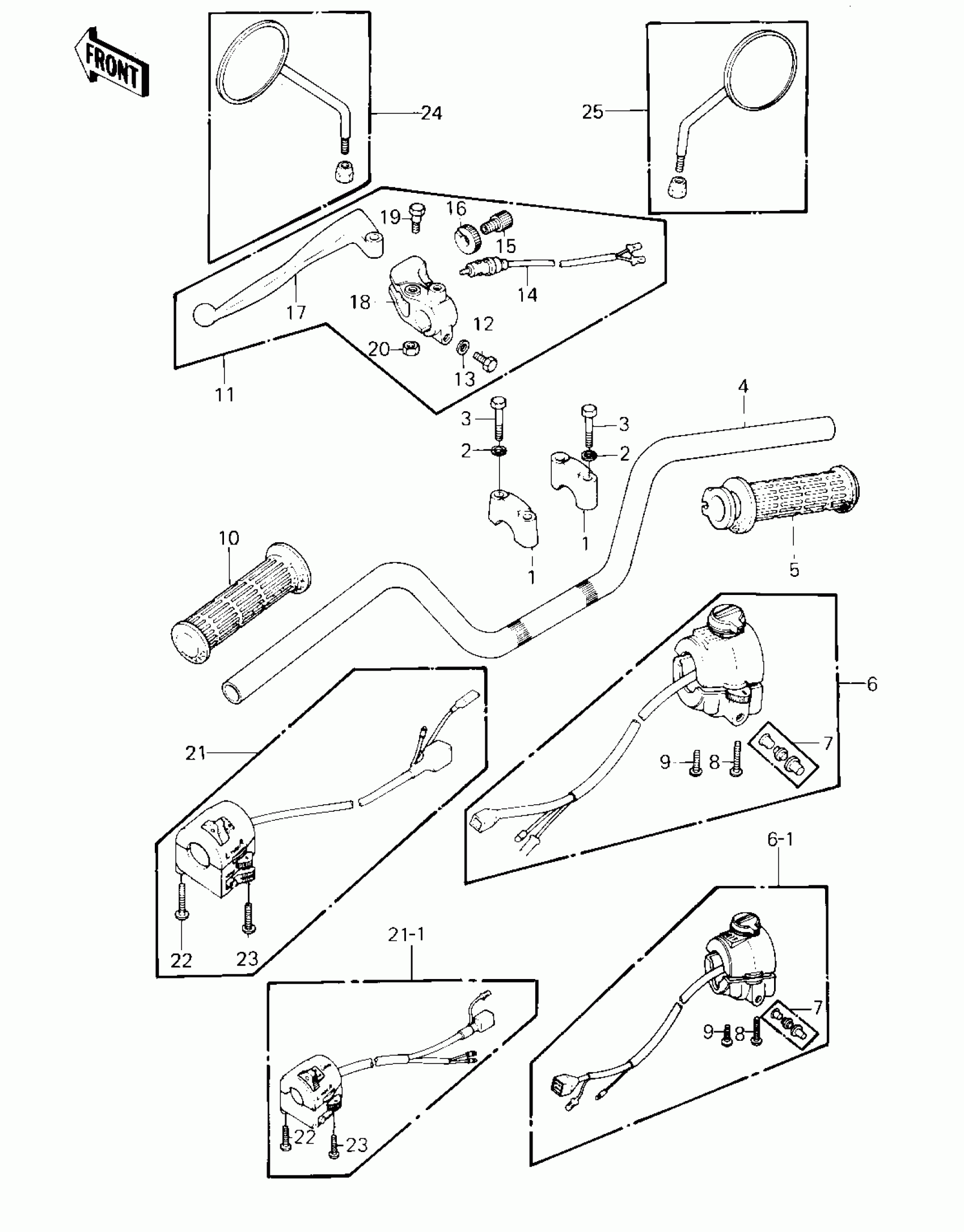

Kawasaki KZ550-A2 HANDLEBAR ('80-'81 A1/A2) Diagram

HOLDER-HANDLE,UPP

WASHER SPRING 8MM

BOLT 8X38

BOLT 8X38

HANDLEBAR

GRIP ASSY,THROTTLE

HOUSING ASSY,CONT,R.H

HOUSING ASSY,CONTR,RH

SWITCH,PUSH BUTTON

SCREW-PAN-CROS

SCREW PAN HEAD 5X30

RUBBER,L.H GRIP

LEVER ASSY,CLUTCH

BOLT-UPSET

WASHER-PLAIN-SMALL,6MM

SWITCH,CLUTCH

SCREW,CABLE ADJUST,8MM

NUT,CABLE ADUST NUT

LEVER-GRIP,CLUTCH

HOLDER,CLUTCH LEVER

BOLT,HEX HEAD

NUT,LOCK,6MM

HOUSING ASSY,CONT,L.H

HOUSING ASSY,CONTR,LH

SCREW-PAN-CROS

SCREW PAN HEAD 5X30

REAR VIEW MIRROR,L.H.

REAR VIEW MIRROR,R.H.
