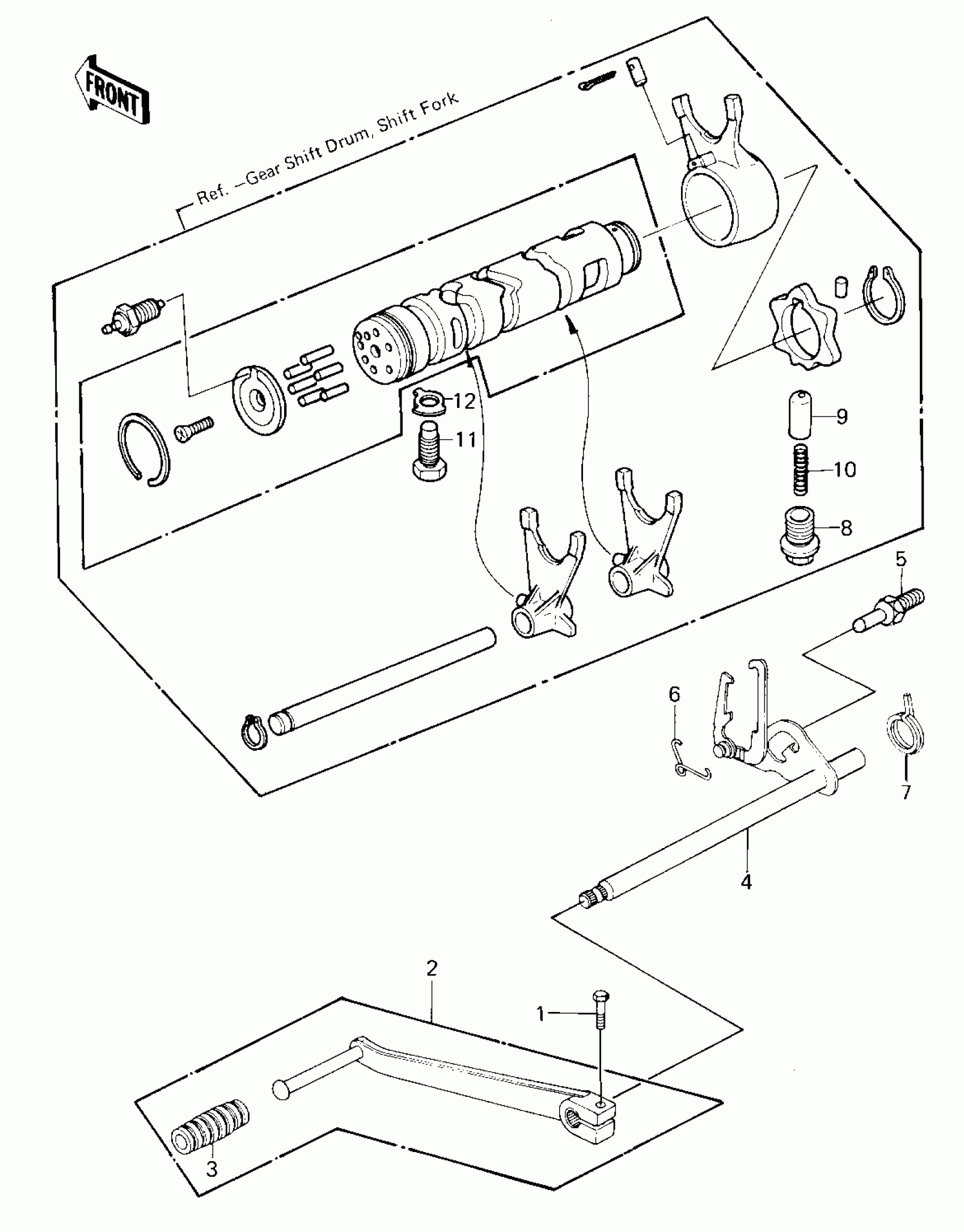

Kawasaki KZ550-A2 GEAR CHANGE MECHANISM ('80-'81 A1/A2) Diagram

Description

Price

BOLT-UPSET,6X20

112G0620

$2.12

PEDAL ASSY,GEAR SHIFT

13242-022

Unavailable

DAMPER,CHANGE PEDAL

92160-1036

$5.05

LEVER-COMP-CHANGE SHAFT

13161-042

$123.33

BOLT,RETURN SPRING

92001-1401

$4.69

BOLT,RETURN SPRING

92001-1401

$4.69

SPRING

92083-018

$9.80

SPRING,CHG PEDL RTRN

92083-028

Unavailable

BOLT,NEUTRAL POSITION

92001-1037

$13.37

92043-076

$11.71

SPRING

92081-112

$6.16

BOLT,10X26

92001-174

$8.19

WASHER,LOCK,10MM

92024-074

$4.38

Kawasaki KZ550-A2 GEAR CHANGE MECHANISM ('80-'81 A1/A2) Diagram

BOLT-UPSET,6X20

PEDAL ASSY,GEAR SHIFT

DAMPER,CHANGE PEDAL

LEVER-COMP-CHANGE SHAFT

BOLT,RETURN SPRING

BOLT,RETURN SPRING

SPRING

SPRING,CHG PEDL RTRN

BOLT,NEUTRAL POSITION

PIN

SPRING

BOLT,10X26

WASHER,LOCK,10MM
