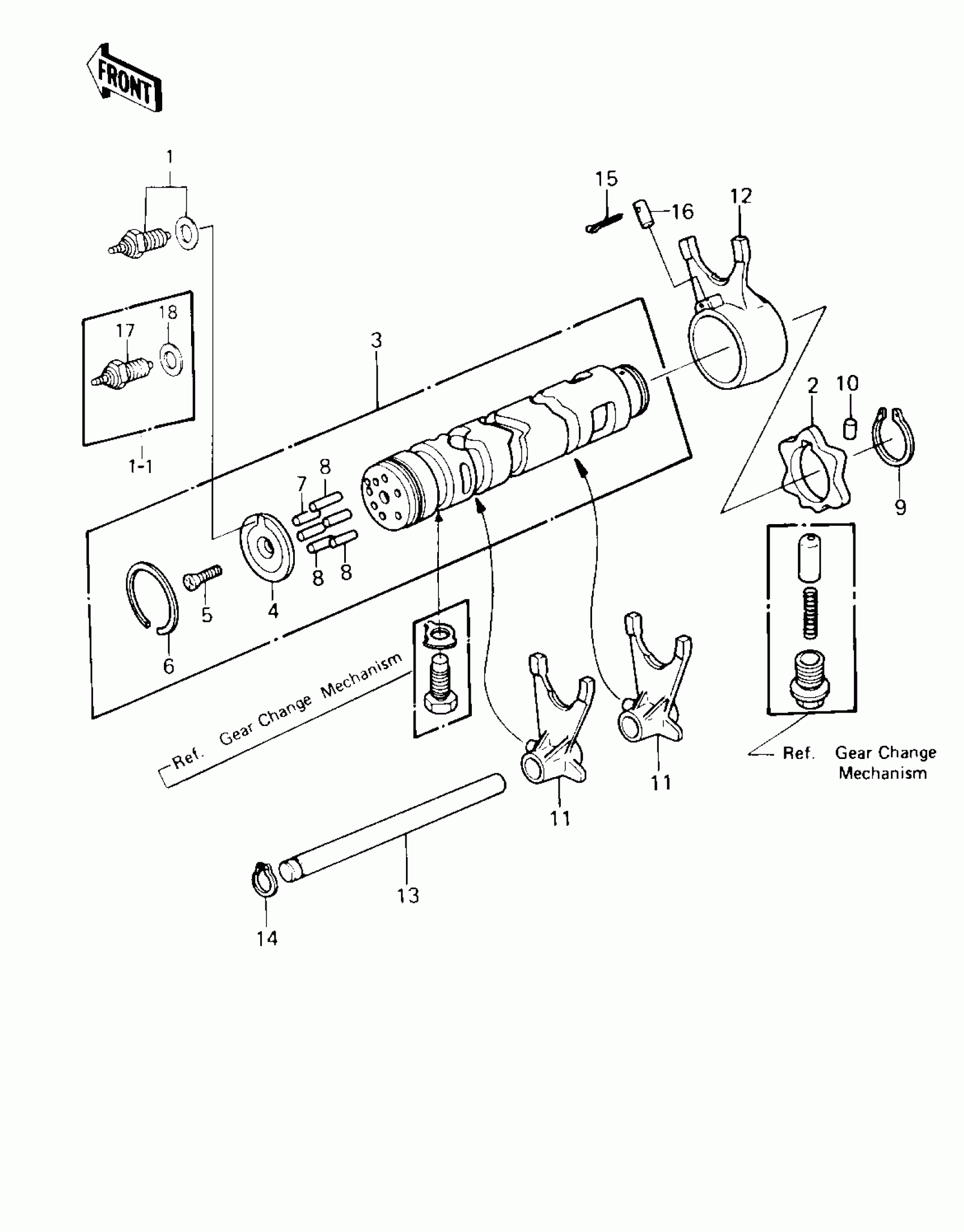

Kawasaki KZ550-A2 GEAR CHANGE DRUM & FORKS ('80-'81 A1/A2) Diagram

#

Description
Price

1

SWITCH,NEUTRAL

13151-5002

Unavailable

1-1

SWITCH,NEUTRAL

13151-5002

Unavailable

2

CAM-CHANGE DRUM

13145-1058

$22.71

3

DRUM-ASSY-CHANGE

13239-1119

Unavailable

4

HOLDER,CHANGE DRUM PIN

13091-1104

$24.63

4

HOLDER,CHANGE DRUM PIN

13091-1104

$24.63

5

SCREW-CSK-CROS,6X20

221B0620

$1.71

6

RING-SNAP,37MM

92033-035

$7.44

7

PIN,DOWEL,4X15.8

92042-014

$0.46

8

PIN,DOWEL,4X13.8

92042-030

$2.99

9

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

10

ROLLER,4X6

610A0406

$3.29

11

FORK-SHIFT,OUTPUT

13140-1062

Unavailable

12

FORK-SHIFT,DRIVE

13140-1016

$112.11

13

ROD-SHIFT

49047-5003

$22.90

14

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

15

PIN-COTTER,3.0X20

550D3020

$1.32

16

PIN,DOWEL,8X18

92042-021

$8.75

17

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

18

GASKET,10.5X16X1

92065-058

$3.03
