Description

Price

1

BRACKET

11034-1041

Unavailable

2

CYLINDER ASSY,MASTER

43015-1051

$287.25

3

LINER,PISTON

14008-1007

Unavailable

4

SWITCH,BRAKE

27010-1028

$33.48

5

PISTON-COMP-BRAKE

43020-1027

Unavailable

6

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

7

CAP-BRAKE

43026-1006

Unavailable

8

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

9

NUT 6MM

312B0600

$0.72

10

BOLT,6X25,W/WASHER

43033-003

Unavailable

11

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

12

LEVER,FRONT BRAKE

46092-1010

Unavailable

13

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

14

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

15

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

16

HOSE-BRAKE,FR,L=1050

43059-1083

$77.81

17

GROMMET,HOSE CLAMP

43064-006

$4.31

18

BOLT,OIL,L=23

92002-1888

$5.48

19

WASHER,10.5X15X1.5

43067-001

$2.15

20

BOOT,DUST

49006-1041

$11.49

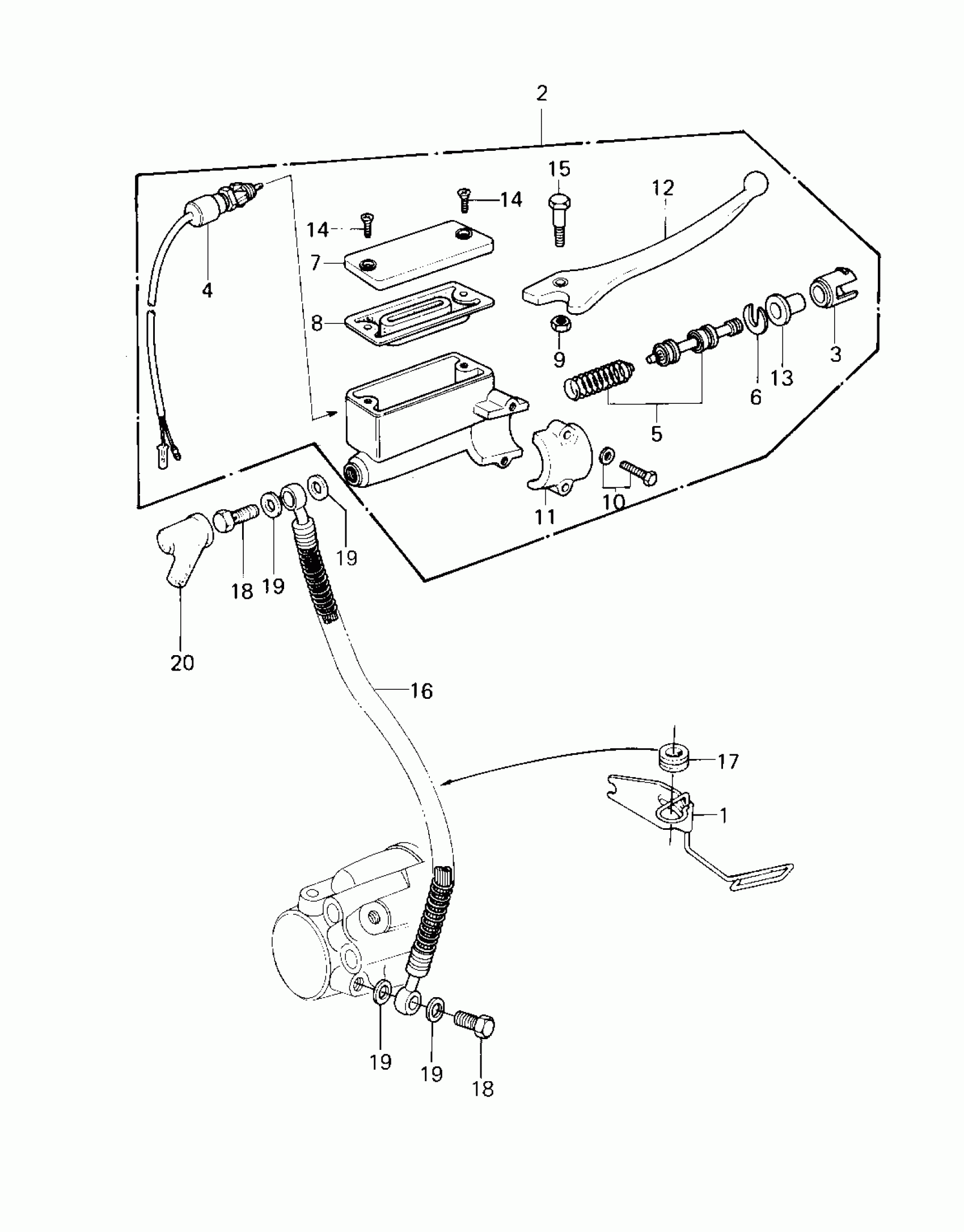

Kawasaki KZ550-A2 FRONT MASTER CYLINDER (KZ550-A2) Diagram

BRACKET

CYLINDER ASSY,MASTER

LINER,PISTON

SWITCH,BRAKE

PISTON-COMP-BRAKE

STOPPER-BRAKE,PISTON

CAP-BRAKE

DIAPHRAGM,MASTER CYLINDER

NUT 6MM

BOLT,6X25,W/WASHER

HOLDER-BRAKE,MASTER CYLINDER

LEVER,FRONT BRAKE

COVER-SEAL,BRAKE PISTON

SCREW-CSK-CROS,5X12,BLACK

BOLT,FR BRAKE LEVER

HOSE-BRAKE,FR,L=1050

GROMMET,HOSE CLAMP

BOLT,OIL,L=23

WASHER,10.5X15X1.5

BOOT,DUST
