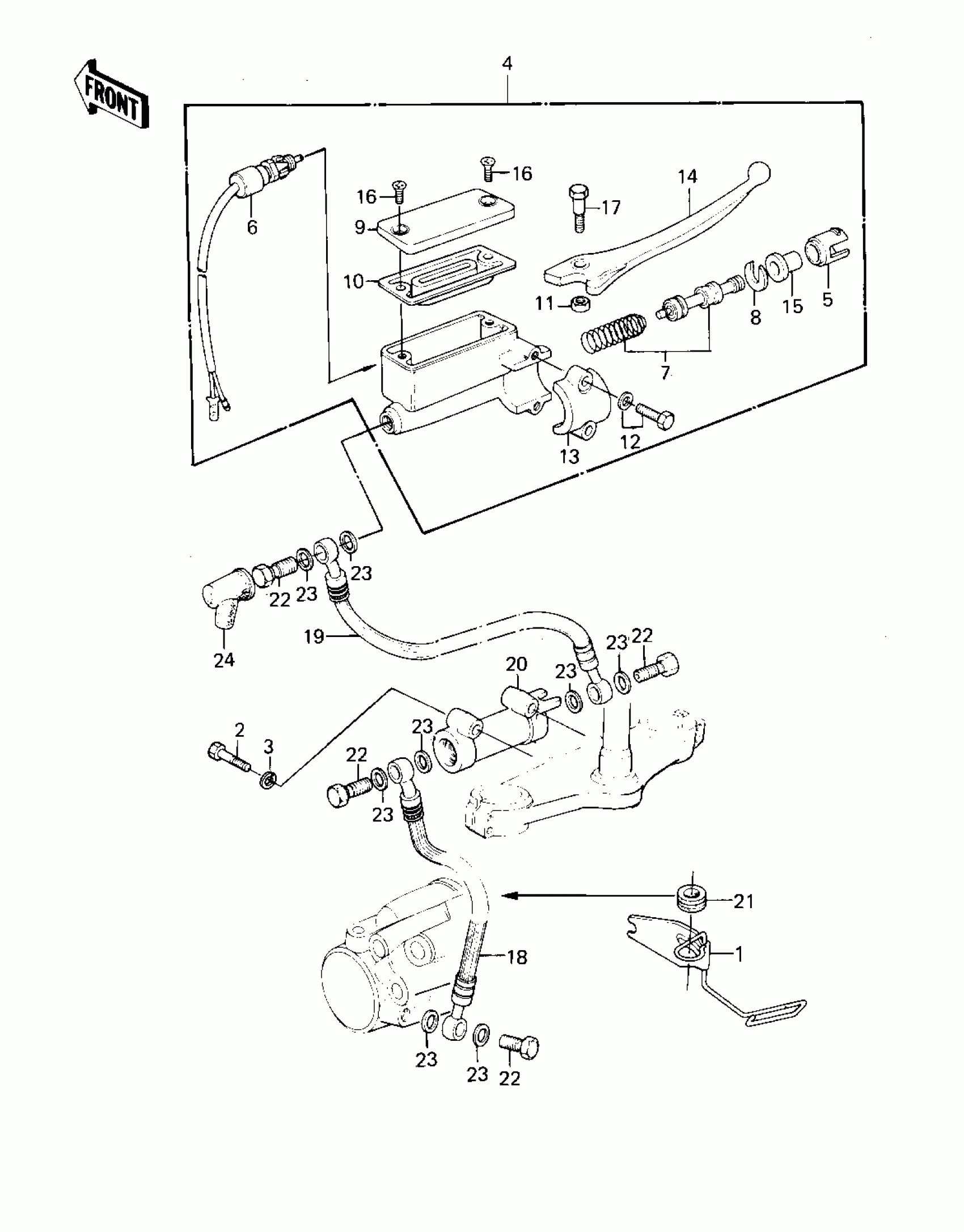

Kawasaki KZ550-A2 FRONT MASTER CYLINDER (KZ550-A1) Diagram

#

Description
Price

1

BRACKET

11034-1041

Unavailable

2

BOLT 6X35

110R0635

Unavailable

3

WASHER SPRING 6MM

461F0600

$0.69

4

CYLINDER ASSY,FR MAST

43015-1038

$310.84

5

LINER,PISTON

14008-1007

Unavailable

6

SWITCH,BRAKE

27010-1028

$33.48

7

PISTON-COMP-BRAKE

43020-1026

$95.03

8

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

9

CAP-BRAKE

43026-1006

Unavailable

10

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

11

NUT 6MM

312B0600

$0.72

12

BOLT,6X25,W/WASHER

43033-003

Unavailable

13

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

14

LEVER-GRIP,FRONT BRAK

46092-1034

$27.49

15

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

16

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

17

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

18

HOSE,FRONT CALIPER

43059-1045

$128.18

19

HOSE,FRONT MASTER CYL

43059-1059

$84.61

20

JOINT-BRAKE

43061-1002

$72.14

21

GROMMET,HOSE CLAMP

43064-006

$4.31

22

BOLT,OIL,L=23

92002-1888

$5.48

23

WASHER,10.5X15X1.5

43067-001

$2.15

24

BOOT,DUST

49006-1041

$11.49
