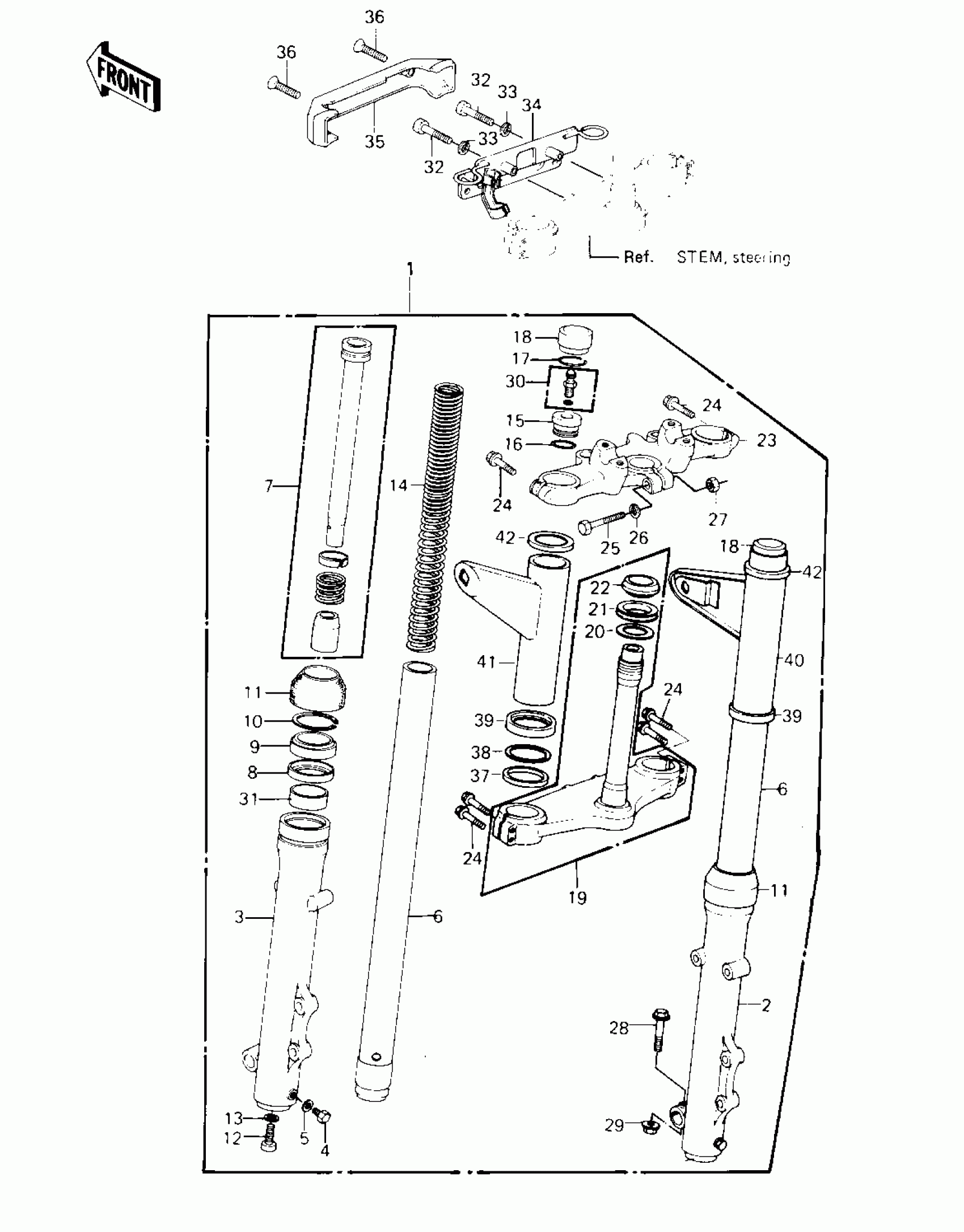

Kawasaki KZ550-A2 FRONT FORK (KZ550-A2) Diagram

#

Description
Price

1

FORK-FRONT

44001-1171

$917.73

2

TUBE,RH,FORK OUTER

44006-1057

$249.19

3

TUBE,LH,FORK OUTER

44005-1057

$289.02

4

BOLT HEX HEAD 6X8

110B0608

Unavailable

5

GASKET,DRAIN PLUG

44045-047

$7.12

6

PIPE-FORK INNER

44013-1044

$388.54

7

CYLINDER-FORK

44022-1051

Unavailable

8

SPACER,FORK

92026-1038

$9.88

9

SEAL-OIL,FORK

92049-1063

$18.64

10

RING,SNAP

92033-1055

$4.75

11

SEAL,DUST

92093-1047

$48.01

12

BOLT,FORK CYLINDER

44041-078

$9.56

13

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

14

SPRING,FORK INNER

44026-1077

$68.51

15

SEAT,FORK SPRING

44029-1019

$11.42

16

"0" RING

92055-1034

Unavailable

17

CIRCLIP,FORK TOP

92033-1023

$3.71

18

CAP,FORK TOP

11012-1136

Unavailable

19

STEM,STEERING

44037-1013

$899.79

20

WASHER,30.5X50X0.6

92022-231

$4.17

21

SEAL-OIL,STEERING STEM

92056-003

$6.75

22

RACE,STEERING STEM BEARING

92047-012

$14.20

23

HEAD,STEERING STEM

44039-1011

$396.49

24

BOLT,8X40

92001-1149

Unavailable

25

BOLT,HEX HEAD,8X55

92001-1064

Unavailable

26

WASHER SPRING 8MM

461F0800

Unavailable

27

NUT,LOCK,8MM

92015-1124

$4.10

28

BOLT,HEX HEAD,8X45

92001-1136

Unavailable

29

NUT,FLANGED,8MM

92015-1055

$3.66

30

VALVE ASSY,AIR

16126-1025

$39.66

31

BUSHING, FORK

44065-1011

$20.25

32

BOLT-UPSET

112G0625

Unavailable

33

WASHER SPRING 6MM

461F0600

Unavailable

34

BRACKET,FORK COVER

11034-1879

Unavailable

35

COVER,FORK

44033-1053

Unavailable

36

SCREW-CSK-RD-CROS

222C0518

$4.15

37

DAMPER RUBBER,FORK

92075-1137

$8.51

38

WASHER,FORK COVER

92022-1111

Unavailable

39

GUIDE,FORK COVER,LOW

13169-1134

Unavailable

40

COVER-FORK,RH,BLACK

44033-1059

$228.02

41

COVER-FORK,LH,BLACK

44033-1058

$250.75

42

GUIDE,FORK COVER,UPPE

13169-1135

Unavailable
