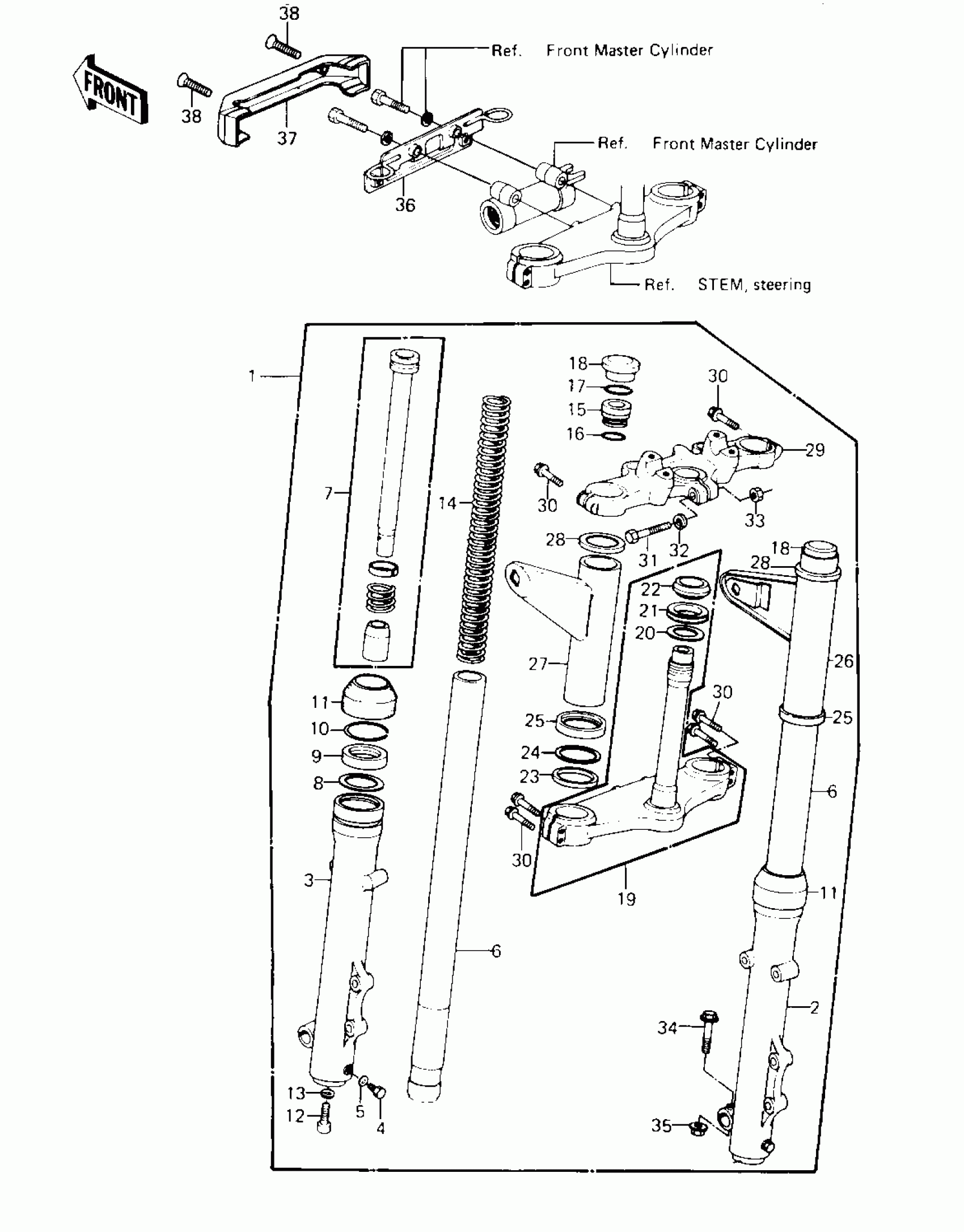

1981 Kawasaki KZ550-A2 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1981 Kawasaki KZ550-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Kawasaki KZ550-A2 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK-FRONT

44001-1202

1
Out of stock

1

FORK-FRONT

44001-1202

1
Out of stock

2

TUBE,RH,FORK OUTER

44006-1018

1
Out of stock

3

TUBE,LH,FORK OUTER

44005-1018

1
Out of stock

4

BOLT HEX HEAD 6X8

110B0608

1
Out of stock

5

GASKET,DRAIN PLUG

44045-047

1
Out of stock

6

TUBE,FORK,INNER

44013-1023

1
Out of stock

7

CYLINDER-FORK

44022-1024

1
Out of stock

8

SPACER,FORK

92026-1038

1
Out of stock

9

SEAL-OIL,FORK

92049-1063

1
Out of stock

9

SEAL-OIL,FORK

92049-1063

1
Out of stock

10

CIRCLIP,OUTER TUBE

92033-1022

1
Out of stock

11

SEAL,DUST

92093-1047

1
Out of stock

11

SEAL,DUST

92093-1047

1
Out of stock

12

BOLT,FORK CYLINDER

44041-078

1
Out of stock

13

GASKET,FORK CYLINDER BOLT

44045-051

1
Out of stock

14

SPRING,FORK INNER

44026-1022

1
Out of stock

15

GUIDE,SPRING

44029-1006

1
Out of stock

16

"0" RING

92055-1034

1
Out of stock

17

CIRCLIP,FORK TOP

92033-1023

1
Out of stock

18

CAP,RUBBER,FORK TOP

11012-1061

1
Out of stock

19

STEM,STEERING

44037-1013

1
Out of stock

20

WASHER,30.5X50X0.6

92022-231

1
Out of stock

21

SEAL-OIL,STEERING STEM

92056-003

1
Out of stock

22

RACE,STEERING STEM BEARING

92047-012

1
Out of stock

23

DAMPER RUBBER,FORK

92075-1137

1
Out of stock

24

WASHER,FORK COVER

92022-1111

1
Out of stock

25

GUIDE,FORK COVER,LOW

13169-1134

1
Out of stock

26

COVER-FORK,RH,BLACK

44033-1059

1
Out of stock

26

COVER-FORK,RH,BLACK

44033-1059

1
Out of stock

27

COVER-FORK,LH,BLACK

44033-1058

1
Out of stock

27

COVER-FORK,LH,BLACK

44033-1058

1
Out of stock

28

GUIDE,FORK COVER,UPPE

13169-1135

1
Out of stock

29

HEAD,STEERING STEM

44039-1011

1
Out of stock

30

BOLT,8X40

92001-1149

1
Out of stock

31

BOLT,HEX HEAD,8X55

92001-1064

1
Out of stock

32

WASHER SPRING 8MM

461F0800

1
Out of stock

33

NUT,LOCK,8MM

92015-1124

1
Out of stock

34

BOLT,HEX HEAD,8X45

92001-1136

1
Out of stock

35

NUT,FLANGED,8MM

92015-1055

1
Out of stock

36

BRACKET,FORK COVER

11034-1790

1
Out of stock

37

COVER,FORK

44033-1053

1
Out of stock

38

SCREW-CSK-RD-CROS

222C0518

1
Out of stock
