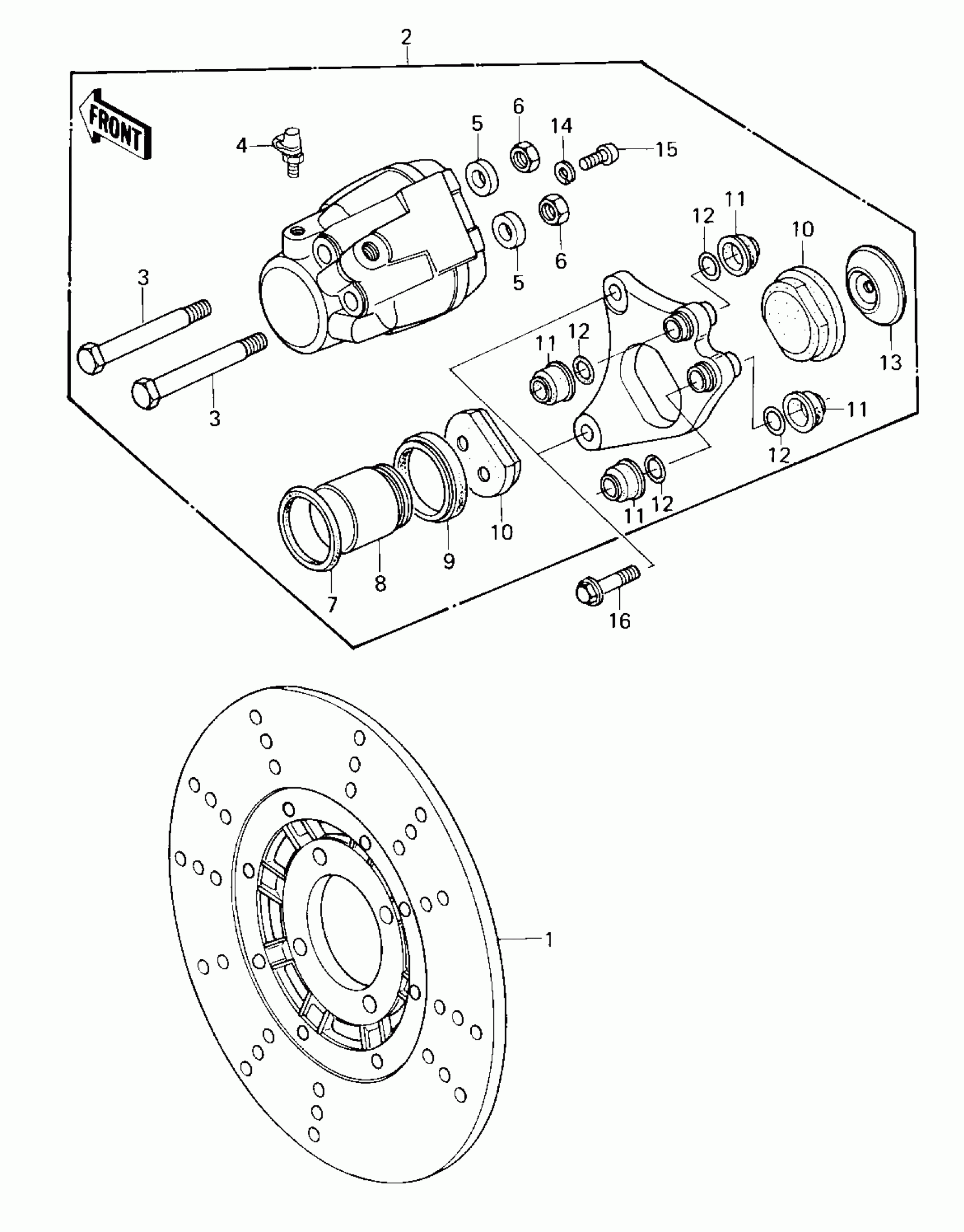

Kawasaki KZ550-A2 FRONT BRAKE (KZ550-A1) Diagram

#

Description
Price

1

DISK PLATE,FRONT

41080-1032

$235.97

2

CALIPER ASSY,FR,L.H.

43041-1022

$564.27

3

BOLT

43045-006

$40.80

4

BLEEDER SET

43085-001

$24.57

5

PLUG

43088-002

Unavailable

6

NUT-HEX-FINE,10MM

315B1000

Unavailable

7

PACKING,PISTON SEAL

43049-002

$10.73

8

PISTON,BRAKE,42M/M

43020-1012

Unavailable

9

DUST SEALD,RUBBER

43054-003

$17.25

10

PAD SET

43082-1001

Unavailable

11

DUST SHILD,SHAFT

43052-005

$12.50

12

"0" RING

43053-006

$12.42

13

SPACER

43040-004

Unavailable

14

WASHER SPRING 6MM

461F0600

Unavailable

15

SCREW PAN HEAD 6X12

220B0612

Unavailable

16

BOLT,10X47

92001-1209

$8.37
