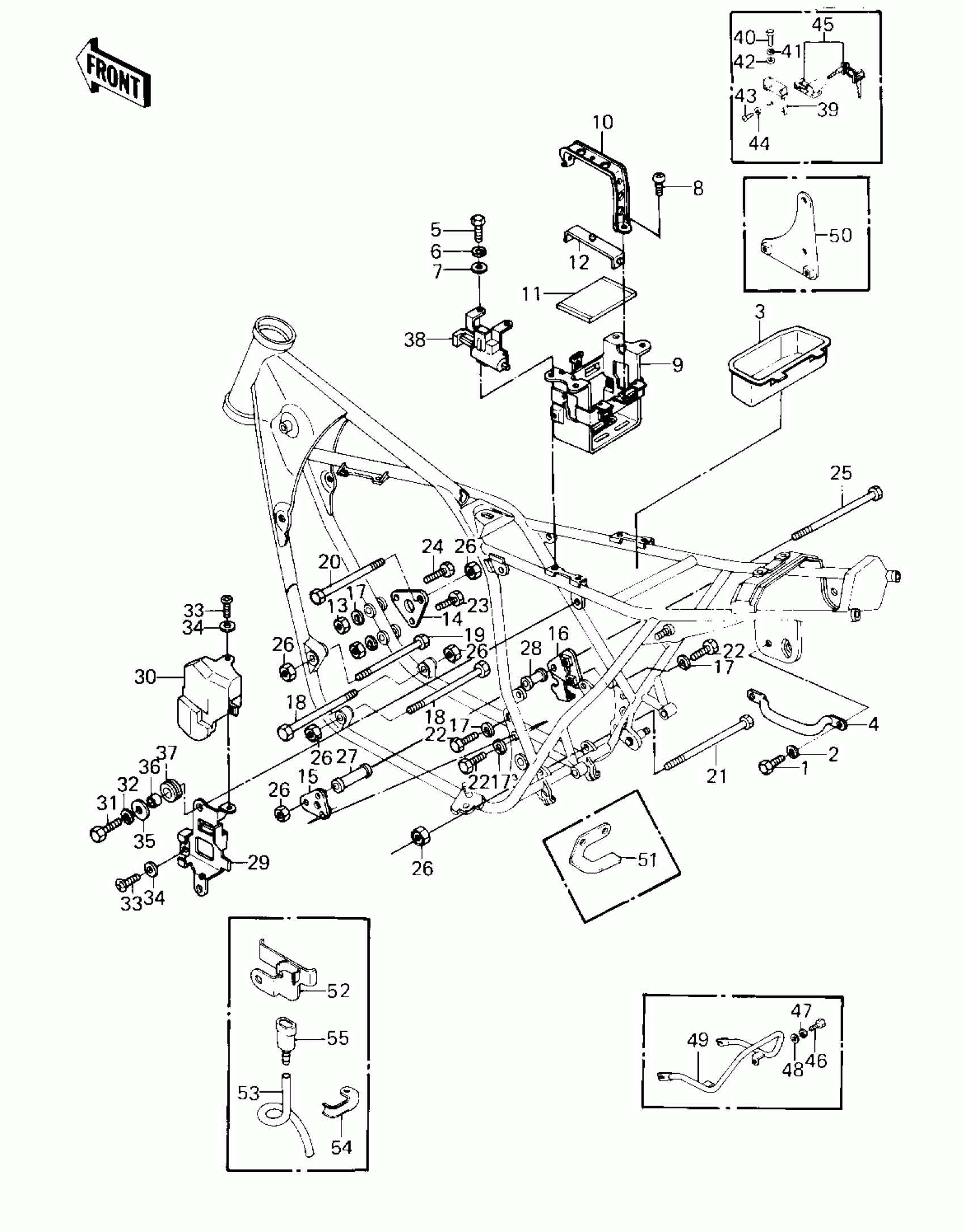

Kawasaki KZ550-A2 FRAME FITTINGS/BATTERY CASE ('80-'81 A1/ Diagram
#
1
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
2
WASHER SPRING 8MM
461F0800
$0.40
3
CASE,TOOL
32098-1005
Unavailable
4
GRIP,FRAME
32109-1005
$56.57
5
BOLT-UPSET,6X12
112G0612
$1.45
6
WASHER SPRING 6MM
461F0600
$0.69
7
WASHER PLAIN 6MM
411B0600
$2.84
8
SCREW PAN HEAD 6X12
220B0612
Unavailable
9
CASE,BATTERY
32097-1026
$141.01
9
CASE,BATTERY
32097-1027
$37.03
10
BAND,BATTERY
92072-1019
Unavailable
11
DAMPER
92075-1076
$8.86
12
DAMPER,BATTERY BAND
92075-1113
Unavailable
13
NUT-HEX-SMALL,8MM
317B0800
$0.67
14
BRACKET,ENGINE
32029-1048
Unavailable
15
BRACKET,ENGINE
32029-1049
Unavailable
16
BRACKET,ENGINE
32029-1050
Unavailable
17
WASHER SPRING 8MM
461F0800
$0.40
18
BOLT,HEX HEAD,10X84
92001-1048
Unavailable
19
BOLT,HEX HEAD,10X72
92001-1049
Unavailable
20
BOLT,FLANGED,10X60
92001-1599
$8.52
21
BOLT,FLANGED,10X180
92001-1606
$24.02
22
BOLT
92001-1578
$8.19
22
BOLT
92001-1578
$8.19
23
BOLT,HEX HEAD,8X59
110G0859
Unavailable
23
BOLT,FLANGED,8X60
92001-1581
$5.14
24
BOLT,8X63
92001-1397
$5.43
24
BOLT,8X63
92001-1397
$5.43
25
BOLT,FLANGED,10X255
92001-1609
Unavailable
26
NUT,LOCK,10MM
92019-021
$6.11
27
COLLAR,L=57.5M/M
92027-1109
Unavailable
28
COLLAR,L=37M/M
92027-1110
Unavailable
29
BRACKET,ELECTRO BASE
11034-1239
Unavailable
30
COVER,ELECTRO
14025-1049
Unavailable
31
BOLT-UPSET,6X20
112G0620
$2.12
32
WASHER SPRING 6MM
461F0600
$0.69
33
SCREW PAN HEAD 6X12
220B0612
Unavailable
34
WASHER PLAIN
92022-024
$3.65
35
WASHER,6.5X20X1.6
92022-125
$1.40
36
COLLAR
92027-165
$5.96
37
DAMPER RUBBER
92075-149
$11.03
38
HOOK ASSY,HELMET
53045-1001
Unavailable
39
BRACKET,HELMET LOCK
11034-1926
Unavailable
40
BOLT-UPSET 6X14
112B0614
Unavailable
41
WASHER SPRING 6MM
461F0600
$0.69
42
WASHER PLAIN 6MM
411B0600
$2.84
43
SCREW PAN HEAD 5X10
220B0510
$0.69
44
WASHER SPRING 5MM
461F0500
$0.69
45
LOCK ASSY,HELMET
27016-5038
Unavailable
46
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
47
WASHER SPRING 8MM
461F0800
$0.40
48
WASHER PLAIN 8MM
410B0800
$0.93
49
STAY,RR
35011-1074
$222.45
50
BRACKET,RESERVE LIGHT
11036-1020
Unavailable
51
BRACKET,FUSE
11036-1026
Unavailable
52
BRACKET,BATTERY
11036-1470
Unavailable
53
TUBE-PVC,6X530
701Q06530
$6.63
54
CLAMP,BREATHER TUBE
92037-1246
$5.45
55
CONNECTOR PIPE
92059-101
$9.12
